Vertiv Geist UPDU – Combination C13/C19 Outlets| 22kW| 16A-60A| Rack PDU
The Vertiv Geist UPDU UI30026 with universal input supports allcommon AC power configurations..
The rack PDU supports configurations ranging from 16A-60A, 120V-415V, and a max capacity of 22kW.
It has 30 Combination C13/C19 Outlets that accommodate C14 and C20 plugs interchangeably.

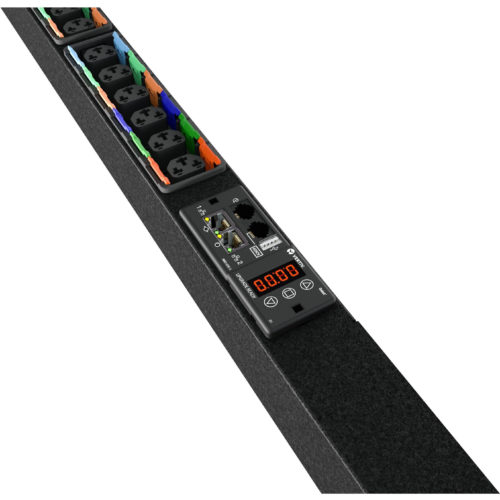

Remote monitoring and management features through a standard web browser or serial communication port..
Receive an extra two years on top of the three-year warranty when you register the Vertiv Geist UPDU within 120 days of purchase.

SKU: UI30026 Categories: , Brand: Vertiv


Vertiv Geist UPDU – Combination C13/C19 Outlets| 22kW| 16A-60A| Rack PDU

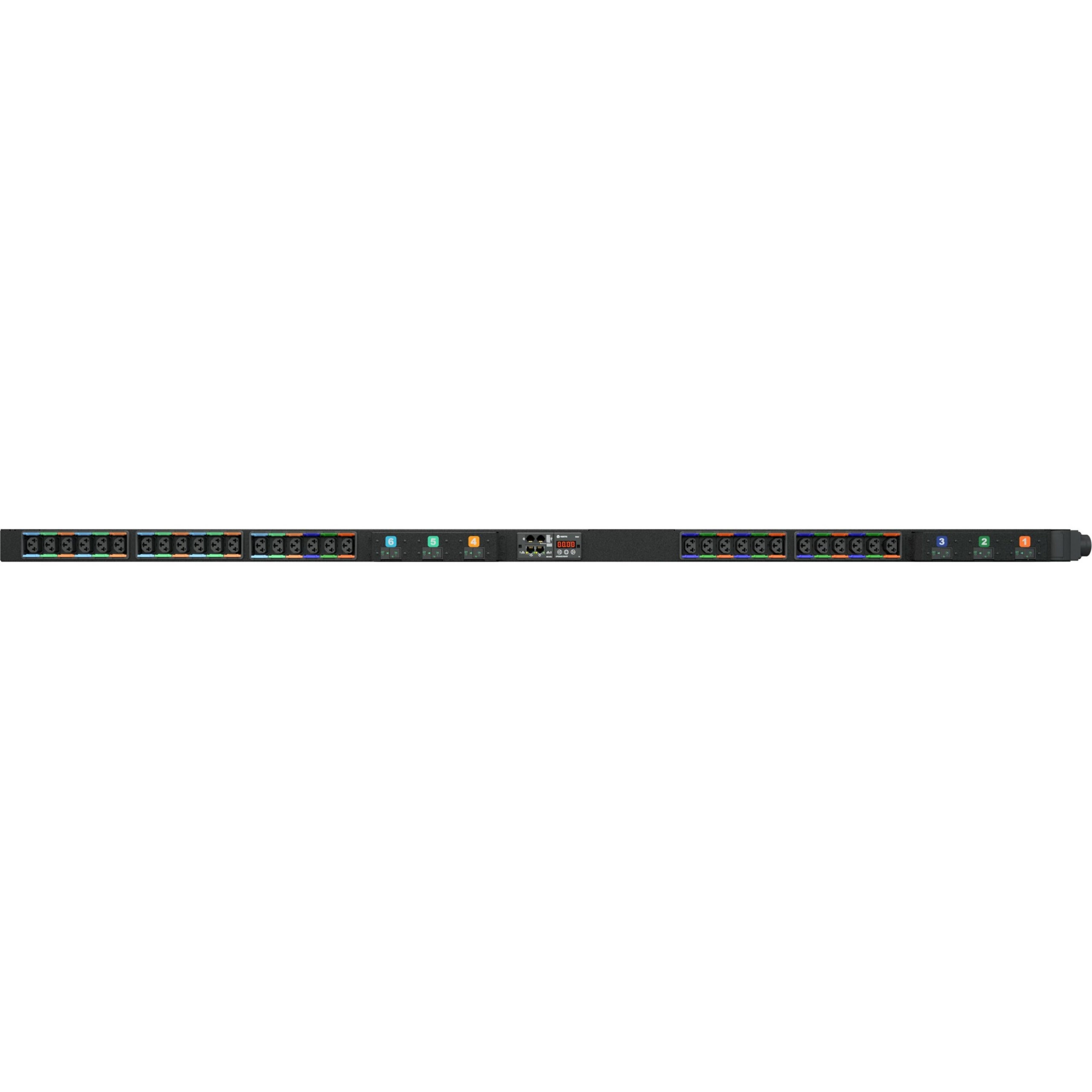

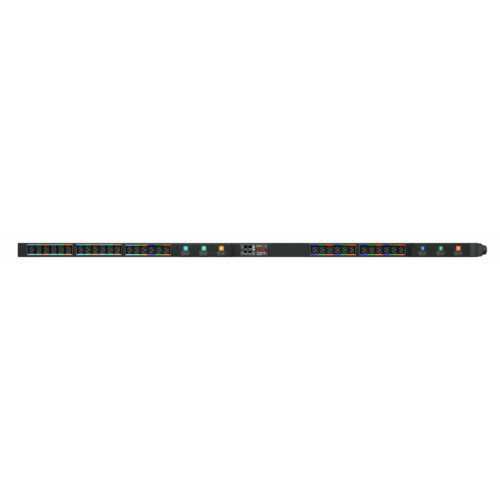

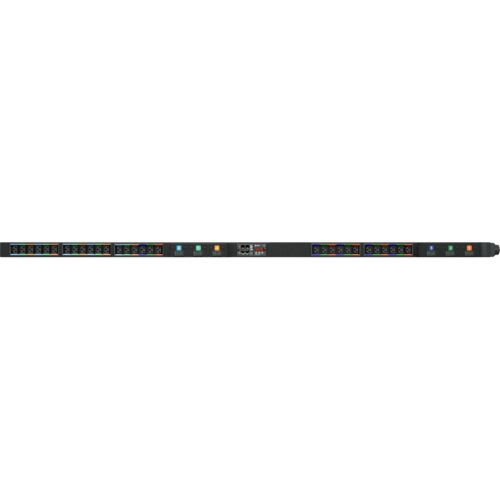

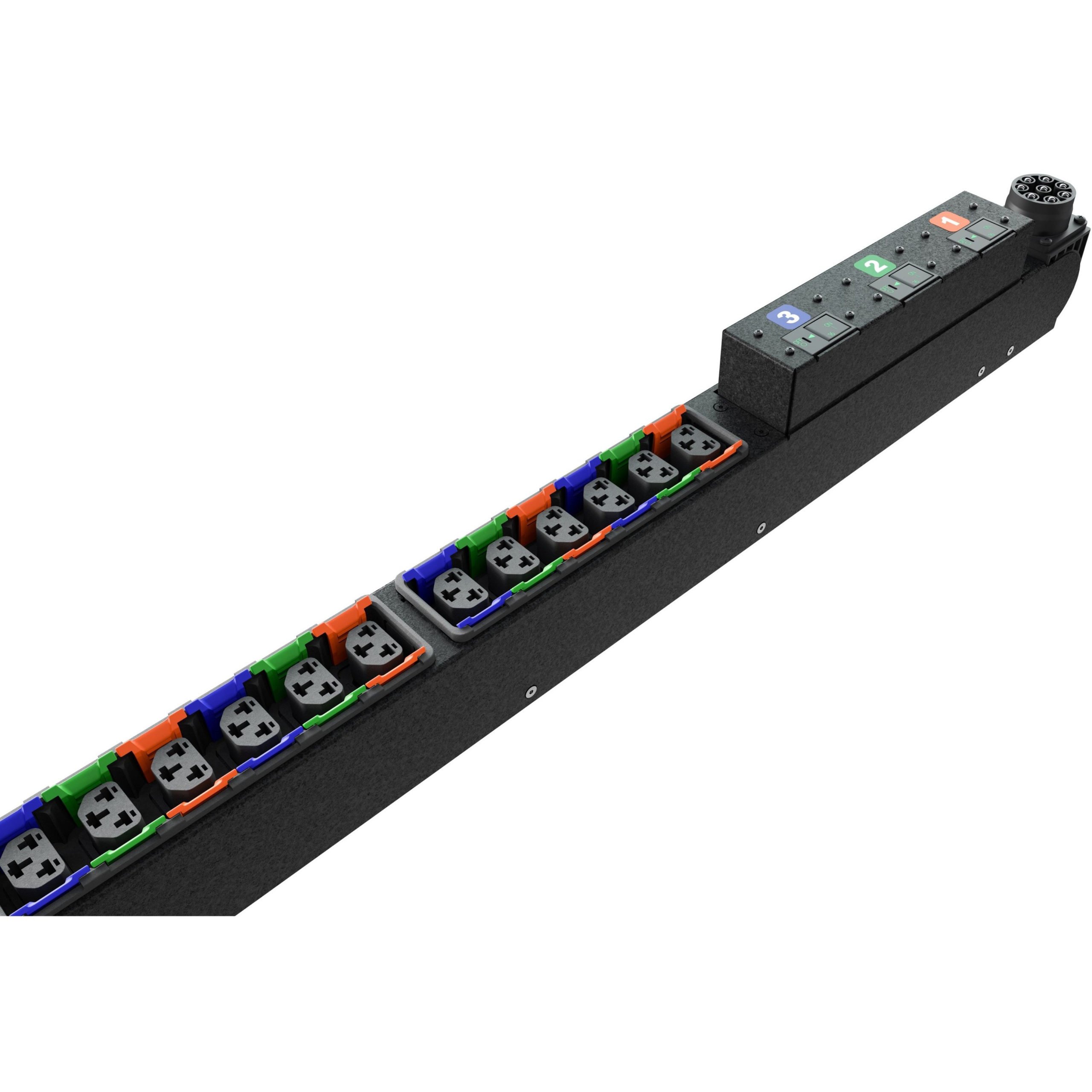

The Vertiv Geist UI30026 Universal Power Distribution Unit is a versatile rack power distribution unit with a universal input and max power capacity of 22kW. This rack PDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-60A and 120V-415V in both 1-phase and 3-phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Geist UPDU in your network system. This model has 30 Combination C13/C19 outlets, which accommodate both C14 and C20 plugs interchangeably. The P-Lock compatible, high-retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord. The unit is also ready for remote monitoring at the unit level through web or serial connection. This TAA-Compliant Vertiv UPDU comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.

More from the Manufacturer

More from the Manufacturer

Additional information

Weight 31 lbs
Dimensions 2.25 × 2.00 × 6.00 in
Product Type PDU
Input Voltage 120 V AC
Manufacturer Part Number UI30026
Manufacturer Website Address
Limited Warranty 5 Year
Input Current 60 A
Length 66.3"
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ ,
Manufacturer Vertiv
Product Model DU03E4B1-30CF17-2S02A9K00-S-A
Product Name UPDU DU03E4B1-30CF17-2S02A9K00-S-A 30-Outlets PDU
Mount Type Rack-mountable
Protection Type Overcurrent Protection, Double Pole
Product Series UPDU
Rack Height 0U
Brand Name Geist
Input Voltage Range 120 V AC - 415 V AC
Country of Origin United States
Phase Single Phase/Three Phase
Environmentally Friendly Yes
Environmental Certification RoHS, China RoHS
Network (RJ-45) Yes
TAA Compliant Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 22 kW
GTIN 0767041033489
UPC 767041033489
EAN 0767041033489
UNSPSC 39121017
