Vertiv Geist VHVBN302-102IN6TL6 30-Outlets PDUBasicNEMA L6-20P24 x IEC 60320 C13, 6 x IEC 60320 C19230 V AC0UVerticalRack-mountable 11856

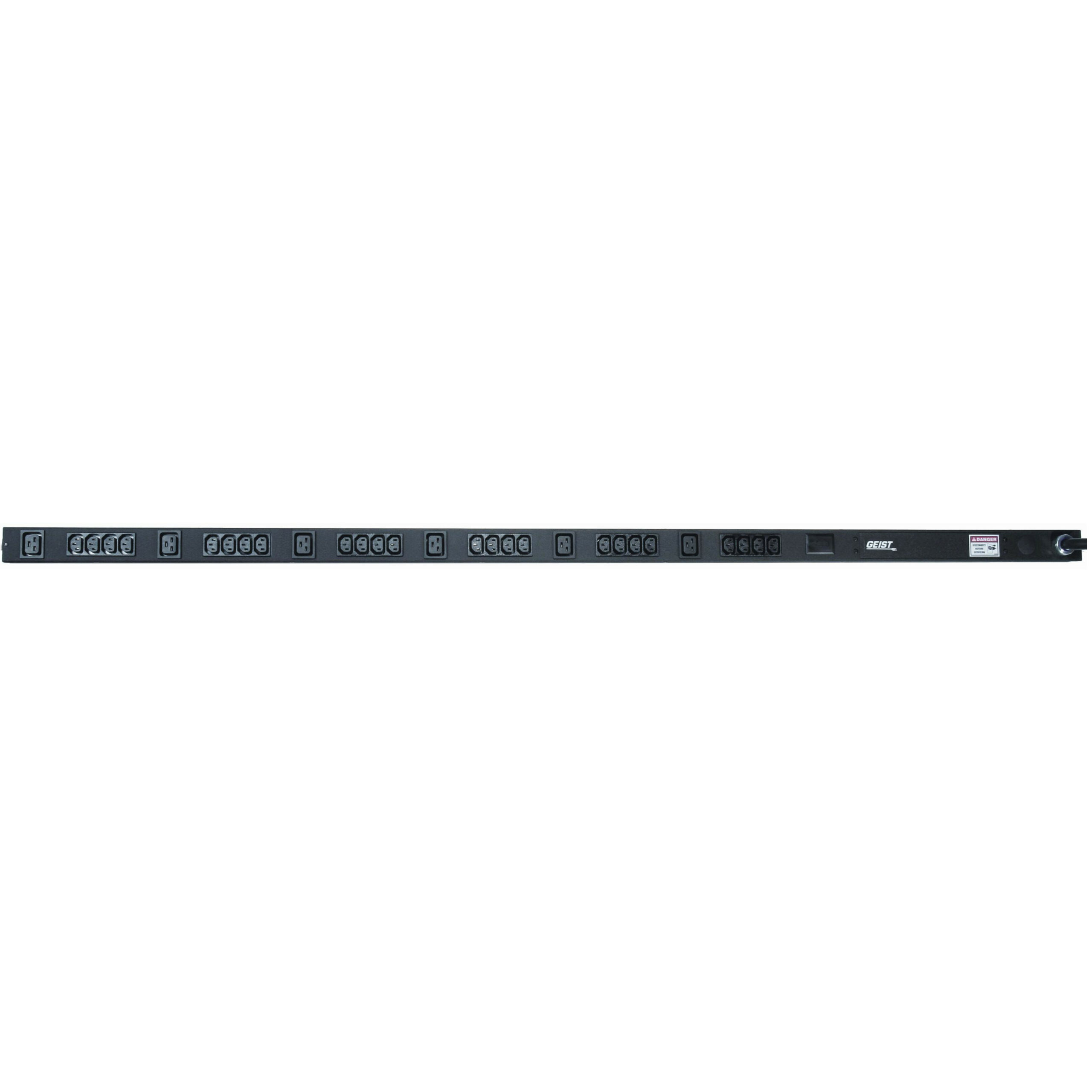

Geist VHVBN302-102IN6TL6 30-Outlets PDU
PDU allows power to be more efficiently distributed and controlled.
Basic PDU is the space-saving and cost-effective way to deliver power.

SKU: 11856 Categories: , Brand: Vertiv


Geist VHVBN302-102IN6TL6 30-Outlets PDU

The 11856 functions as a basic power strip without built-in surge protection. This unit is ideal for installations in facilities with proper surge protection at the main electrical service entrance.

Additional information

Weight 20 lbs
Dimensions 2.00 × 2.00 × 7.00 in
Package Contents VHVBN302-102IN6TL6 30-Outlets PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number 11856
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 20 A
Length 66.3"
Manufacturer Vertiv
Product Model VHVBN302-102IN6TL6
Product Name VHVBN302-102IN6TL6 30-Outlets PDU
Mount Type Rack-mountable
Rack Height 0U
Brand Name Geist
Plug/Connector Type NEMA L6-20P
Country of Origin United States
Receptacle Type IEC 60320 C13, IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
PDU Type Basic
Mounting Orientation Vertical
Power Rating (Watt) 3300 W
Receptacle Detail 24 x IEC 60320 C13, 6 x IEC 60320 C19
Plug/Connector Detail 1 x NEMA L6-20P
UNSPSC 39121017
