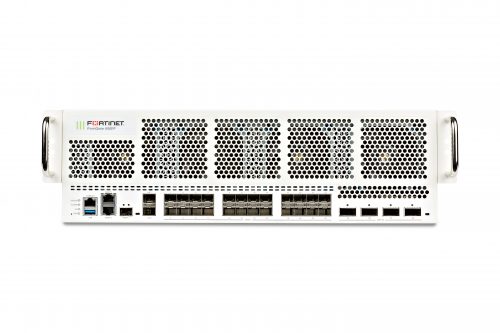

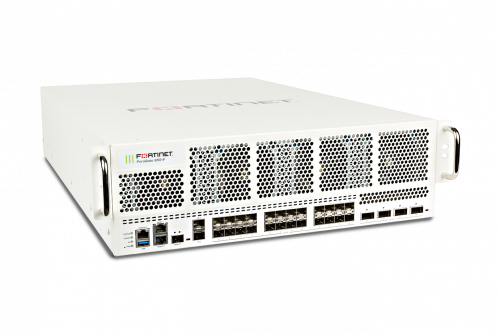

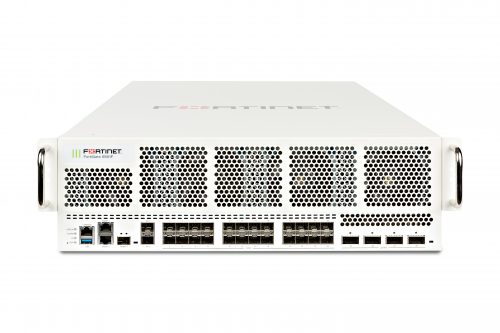

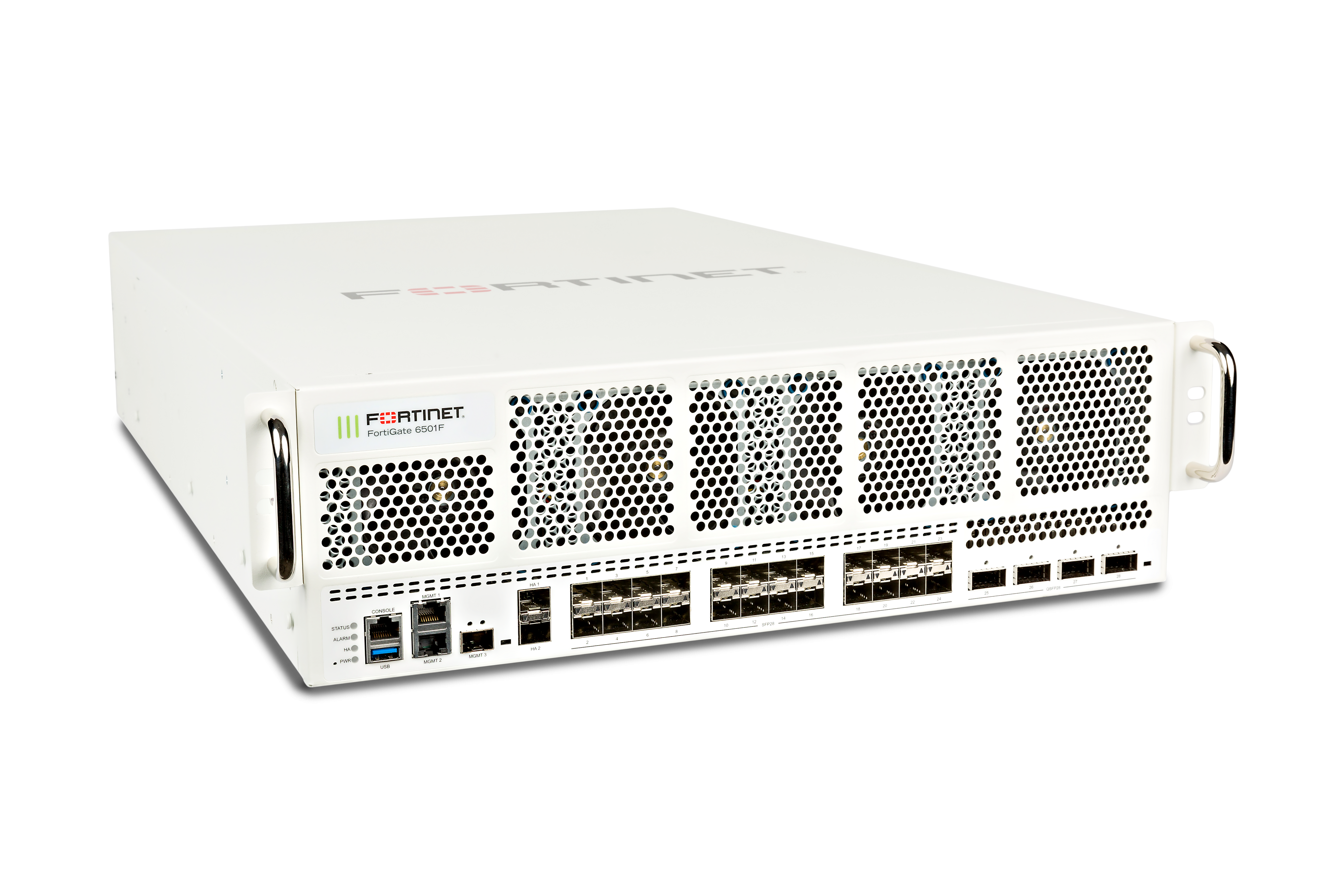

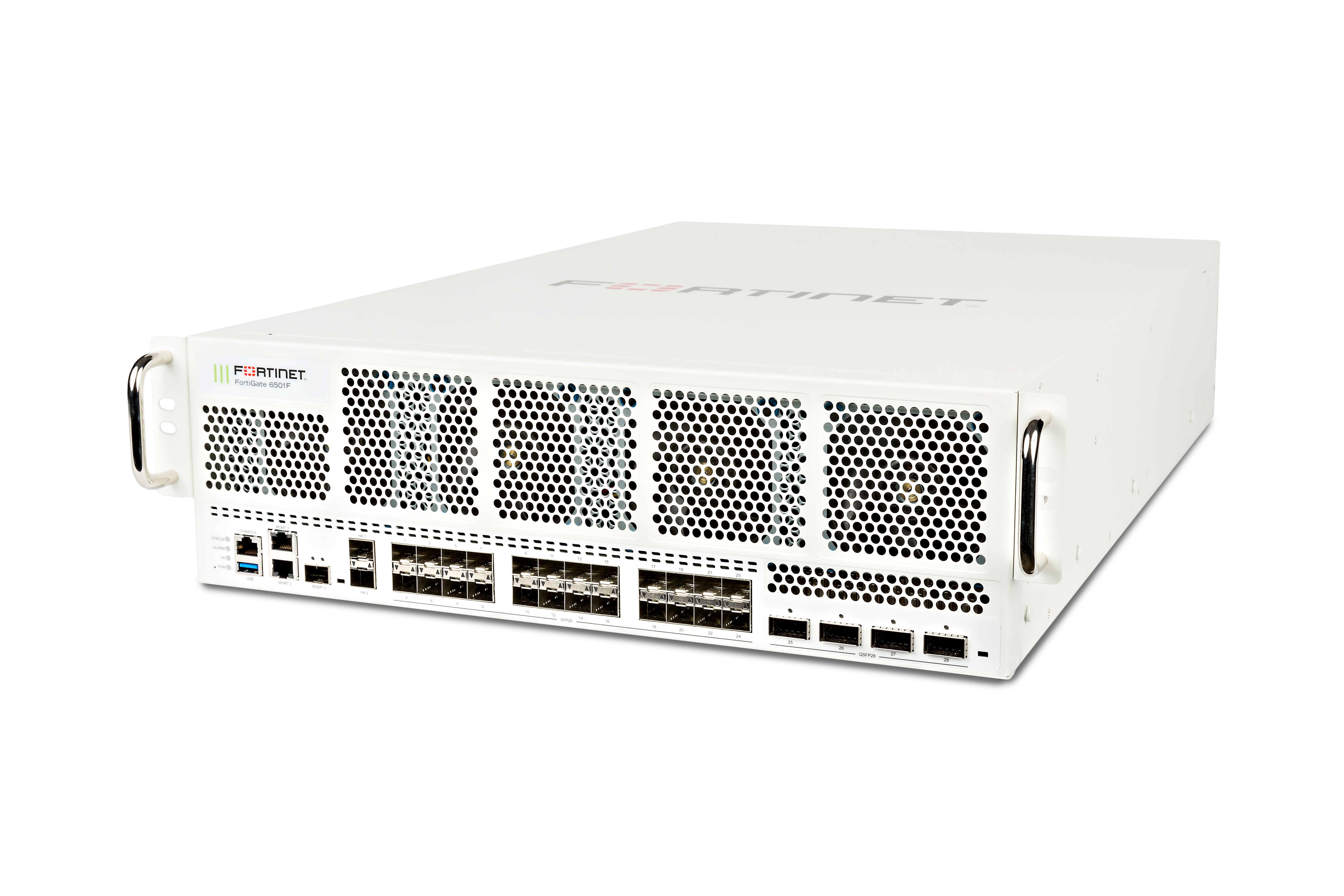

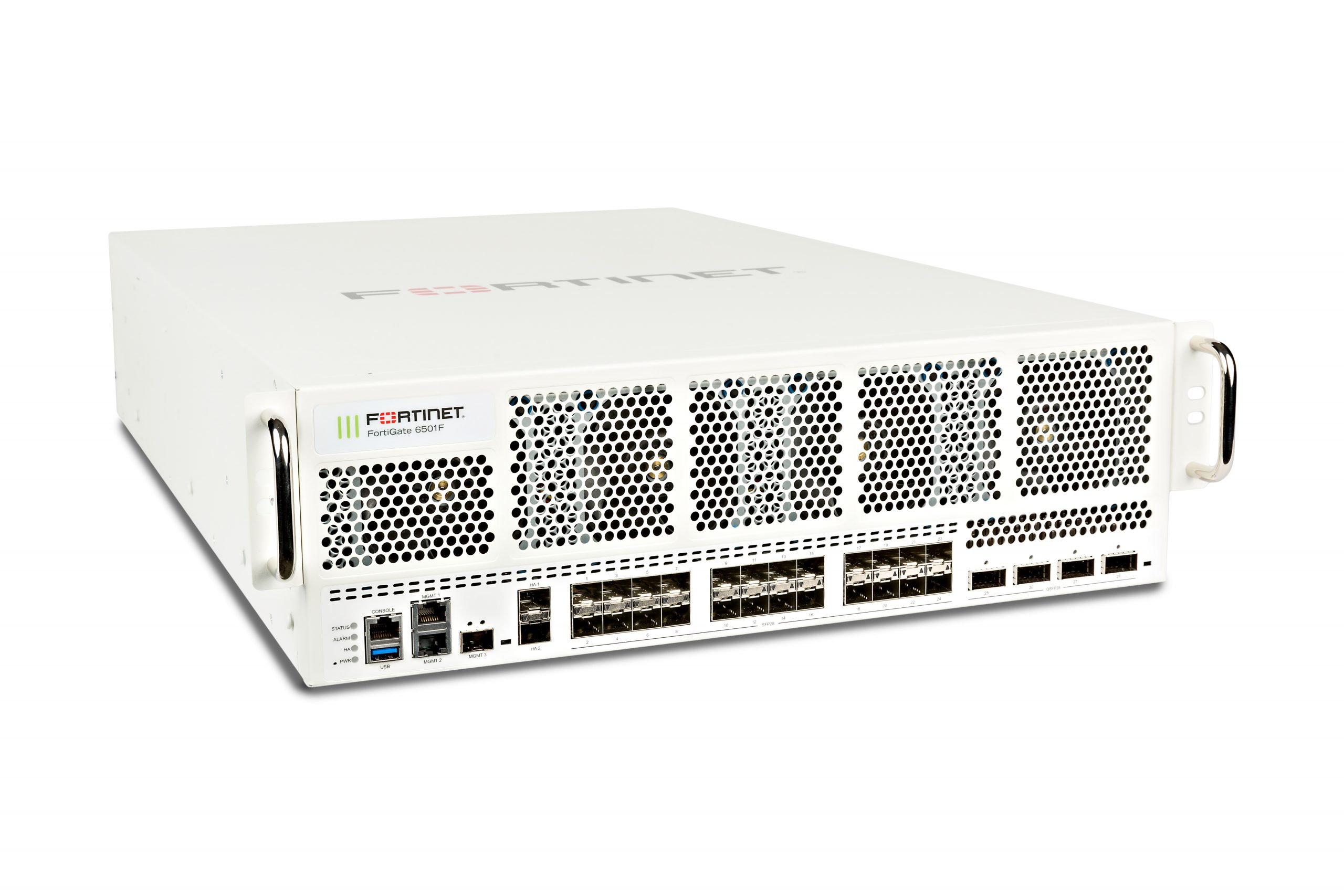

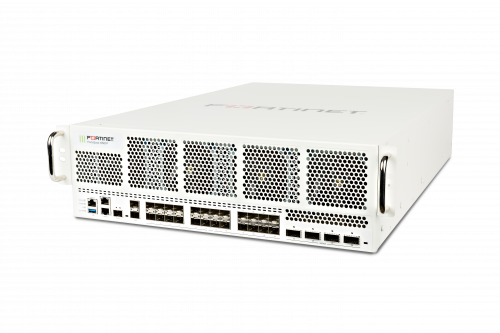

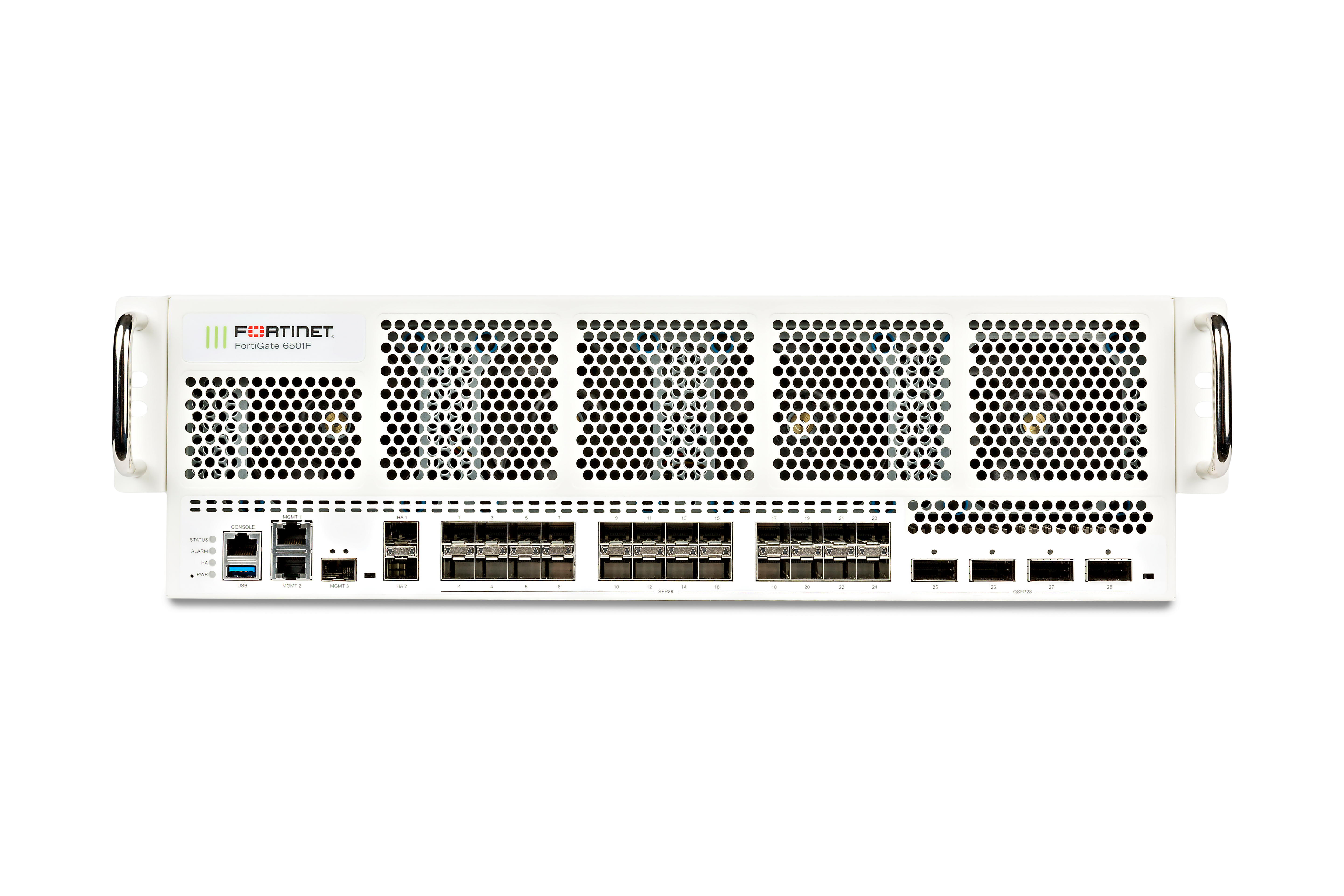

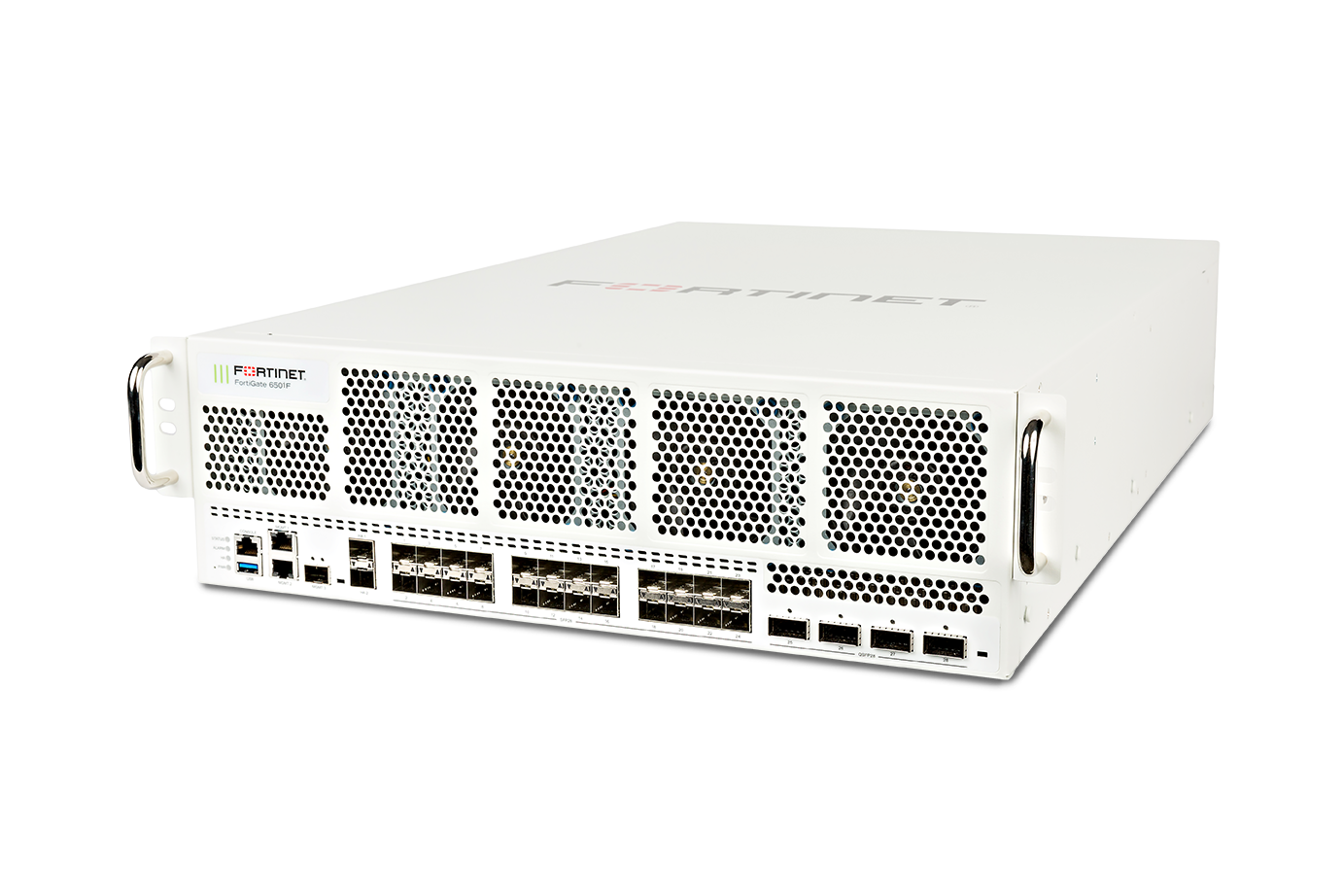

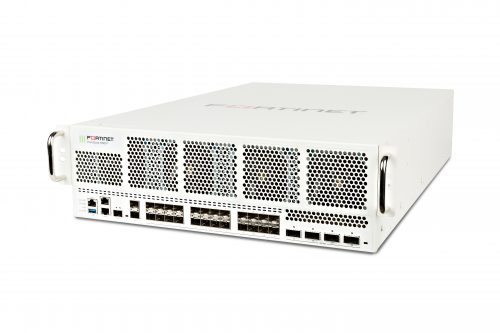

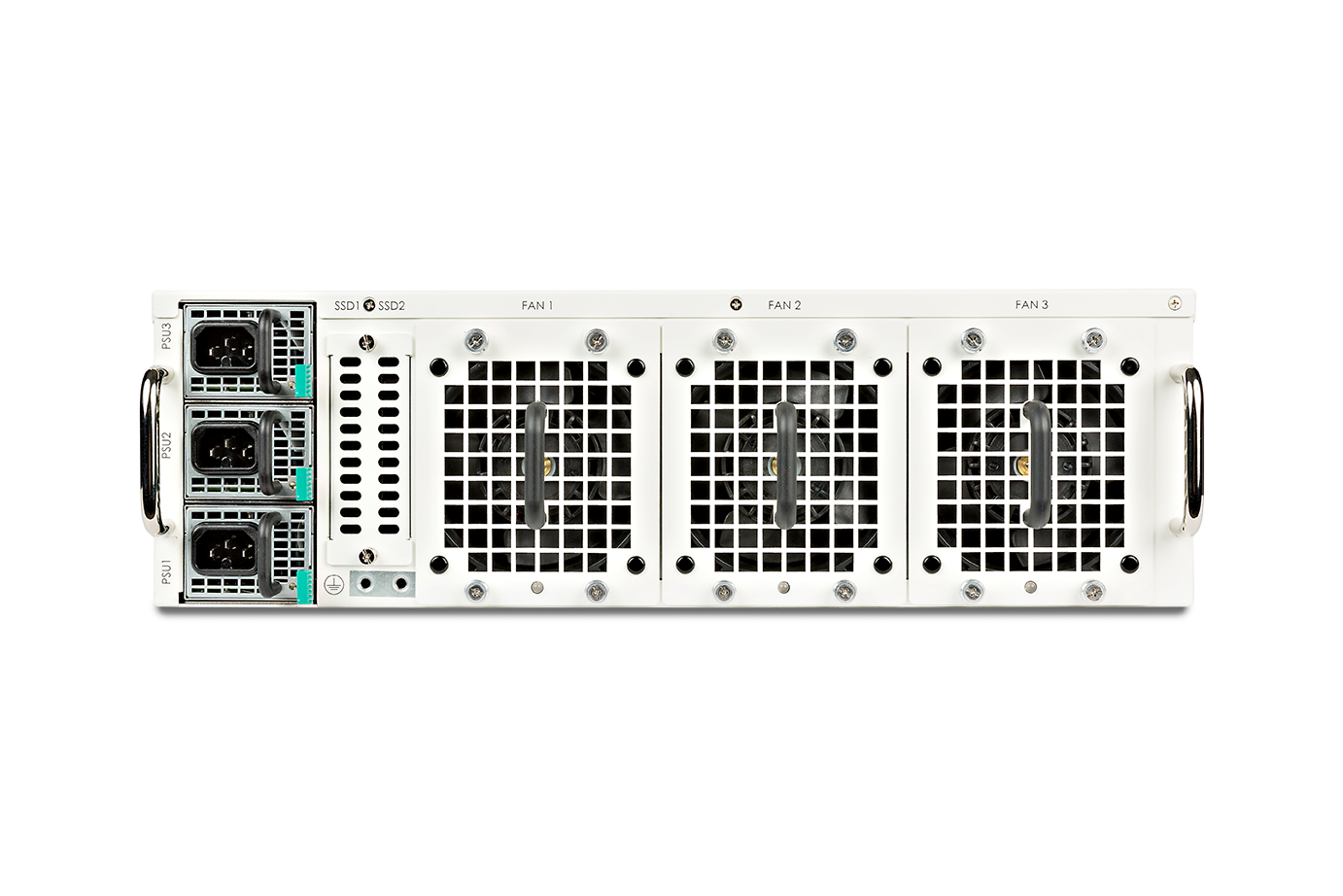

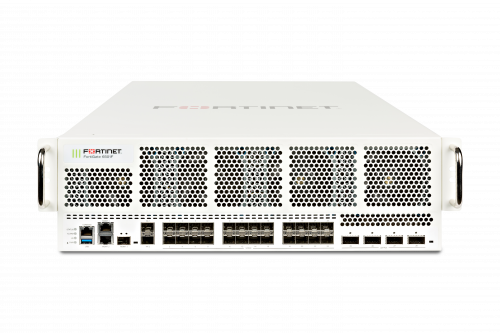

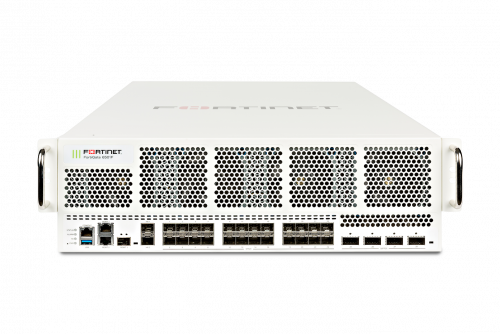

Fortinet FortiGate 6501F security appliance FG-6501F

Fortinet FortiGate 6501F – Security appliance – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN – 3U – rack-mountable

SKU: FG-6501F~PVAR Categories: , Brand: Fortinet

Description

Description: 4 X 100/40GE QSFP28 24 X 25/10GE 2X 1TB
Fortinet FortiGate 6501F – Security appliance – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN – 3U – rack-mountable

The FortiGate 6000F series delivers high-performance threat protection for large enterprises and service providers, with the flexibility to be deployed at the Internet or cloud edge, in the data center core or internal segments. The 6000F series keeps your network connected and secure with multiple high-speed interfaces, high port density, superior security efficacy and high throughput.

Key Selling Points
Protects against known exploits, malware and malicious URLs
Provides both resiliency and high connection rate support
Superior performance and protection for SSL encrypted traffic
Delivers extensive network interface flexibility

Additional information

Weight 249.59 lbs
Dimensions 27.3 × 17.2 × 5.2 in
License

No License, UTP, 360 Protection, Enterprise

Duration

Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate 6501F - security appliance
Device Type Security appliance
Form Factor Rack-mountable
Processor Fortinet FortiASIC CP9/NP6
Hard Drive SSD 2 TB - NVMe
Performance Firewall throughput (1518-byte UDP): 239 Gbps u00a6 Firewall throughput (512-byte UDP): 238 Gbps u00a6 Firewall throughput (64-byte UDP): 135 Gbps u00a6 Firewall latency (64-byte UDP): 5 u00b5s u00a6 Firewall throughput: 202.5 Mpps u00a6 VPN throughput (512-bit IPSec): 160 Gbps u00a6 SSL inspection throughput: 130 Gbps u00a6 Application control (AVC) throughput: 220 Gbps u00a6 IPS throughput (optimal traffic mix): 230 Gbps u00a6 IPS throughput (enterprise traffic mix): 170 Gbps u00a6 NGFW throughput: 150 Gbps u00a6 Threat protection throughput: 100 Gbps
Capacity Concurrent TCP sessions: 200000000 u00a6 New TCP sessions per second: 3000000 u00a6 Firewall policies: 200000 u00a6 Gateway to gateway IPSec VPN Tunnels: 16000 u00a6 Client to gateway IPSec VPN tunnels: 90000 u00a6 Concurrent SSL VPN users: 30000 u00a6 Virtual domains: 10 u00a6 Maximum virtual domains: 500 u00a6 Number of FortiToken devices: 20000 u00a6 Number of registered FortiClients: 100000
Included Accessories 2 x 10Gb Ethernet SR SFP+ transceiver
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Yes
Built-in Devices LED panel
Processors Installed Fortinet FortiASIC CP9/NP6
Connectivity Technology Wired
Network / Transport Protocol TCP/IP, UDP/IP, IPSec, SCTP
Remote Management Protocol HTTP, CLI
Features Firewall protection, switching, routing, load balancing, traffic shaping, manageable, IPv6 support, High Availability, Intrusion Prevention System (IPS), VPN acceleration capability, anti-malware protection, IPv4 support, web threat protection, CAPWAP support, application filtering, checksum offload support, Data Center Firewall (DCFW), Carrier-Class Firewall (CCFW), IP tunnel acceleration
Encryption Algorithm SSL, 128-bit AES, 256-bit AES, 256-bit SHA, TLS 1.2
Interfaces 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28 u00a6 24 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 u00a6 2 x 10Gb Ethernet - SFP+ u00a6 2 x 1000Base-T (management) - RJ-45 u00a6 1 x 1 Gigabit Ethernet/10Gb Ethernet (management) - SFP+ u00a6 1 x USB 3.0 - Type A u00a6 1 x console - RJ-45
Compliant Standards UL, VCCI, C-Tick, cUL, CB, FCC Part 15 A, VB100

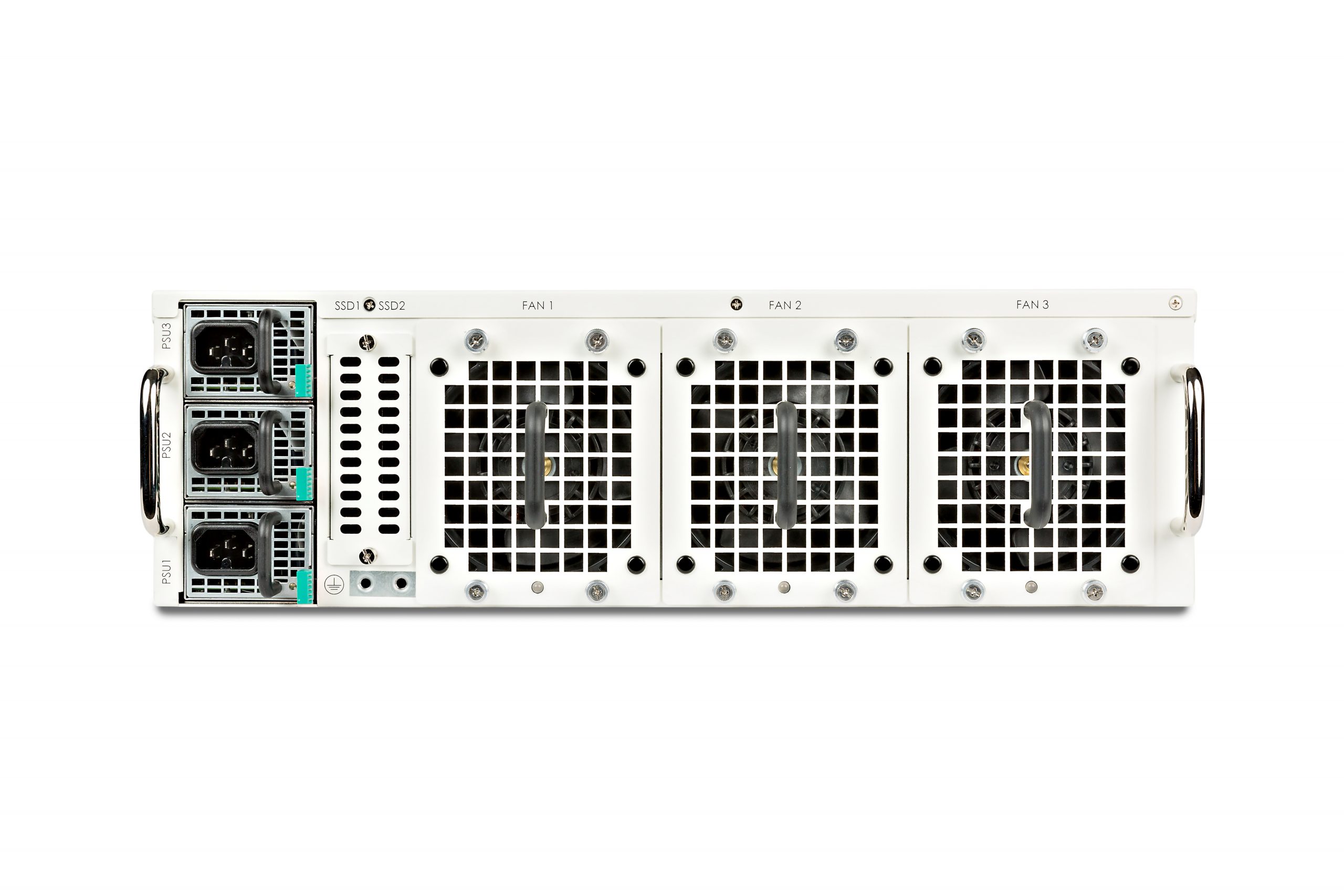

Power Device Internal power supply - hot-plug
Installed Qty 3
Max Supported Qty 3
Voltage Required AC 120/230 V (50 - 60 Hz)
Power Consumption Operational 1328 Watt
OS Provided FortiOS
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 10 - 90% (non-condensing)
