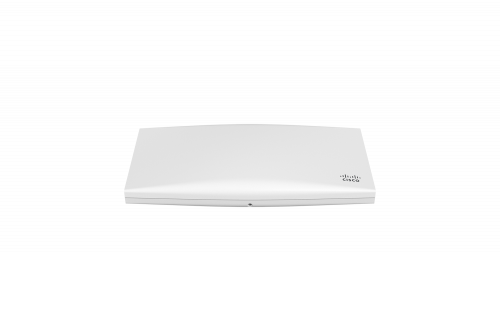

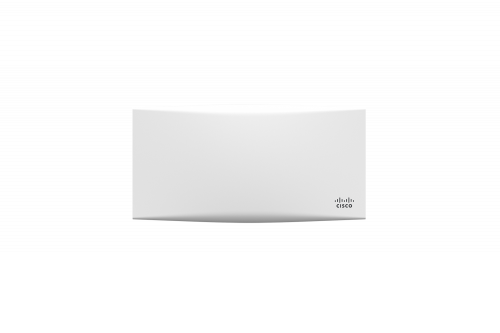

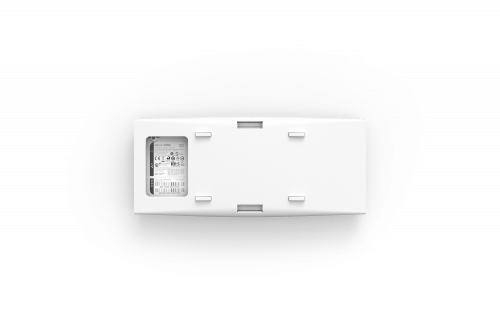

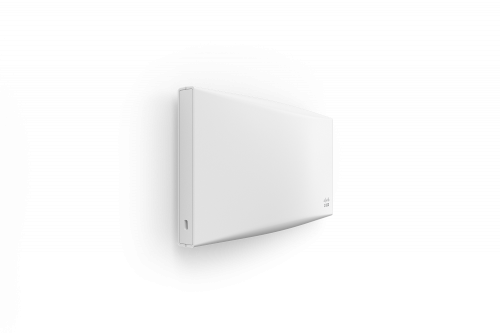

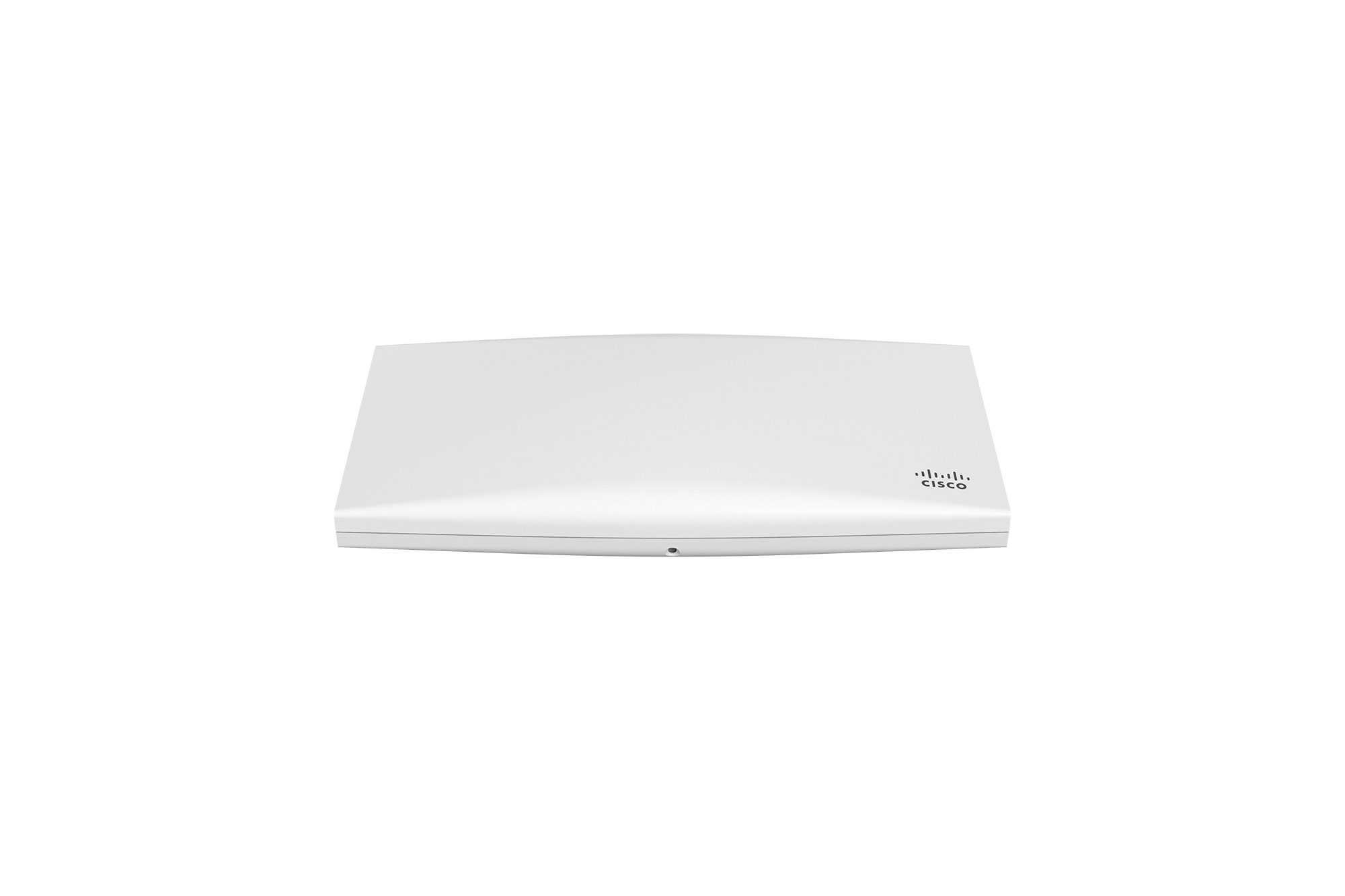

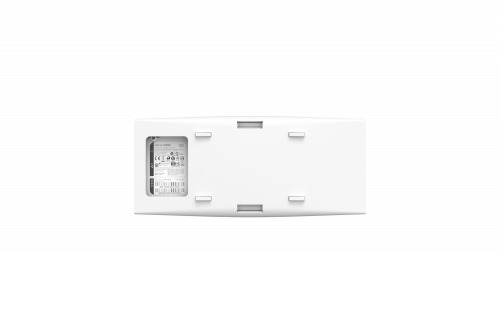

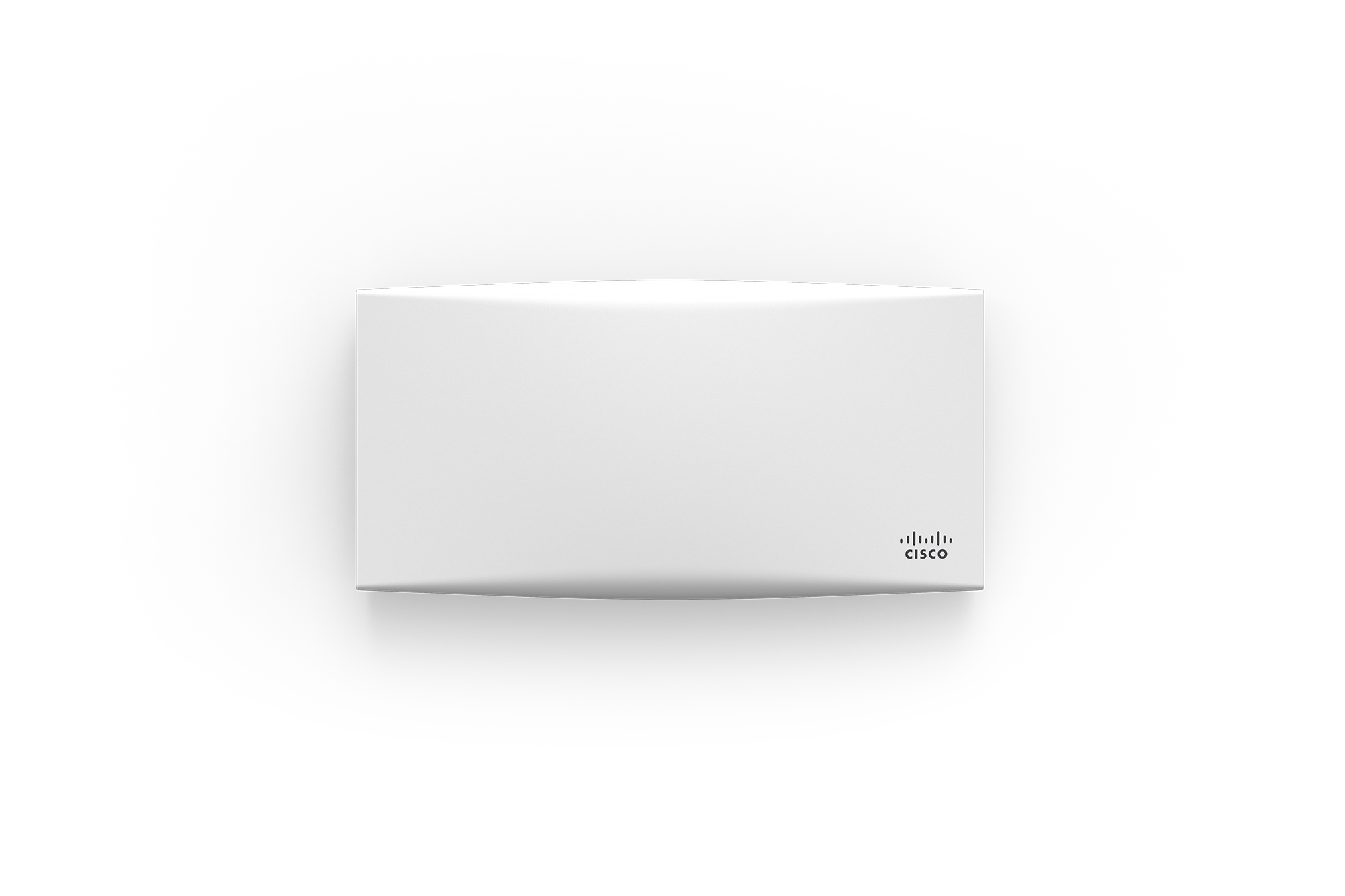

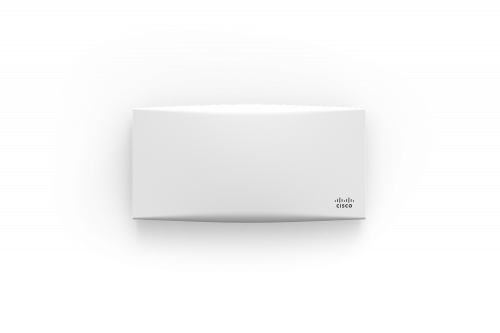

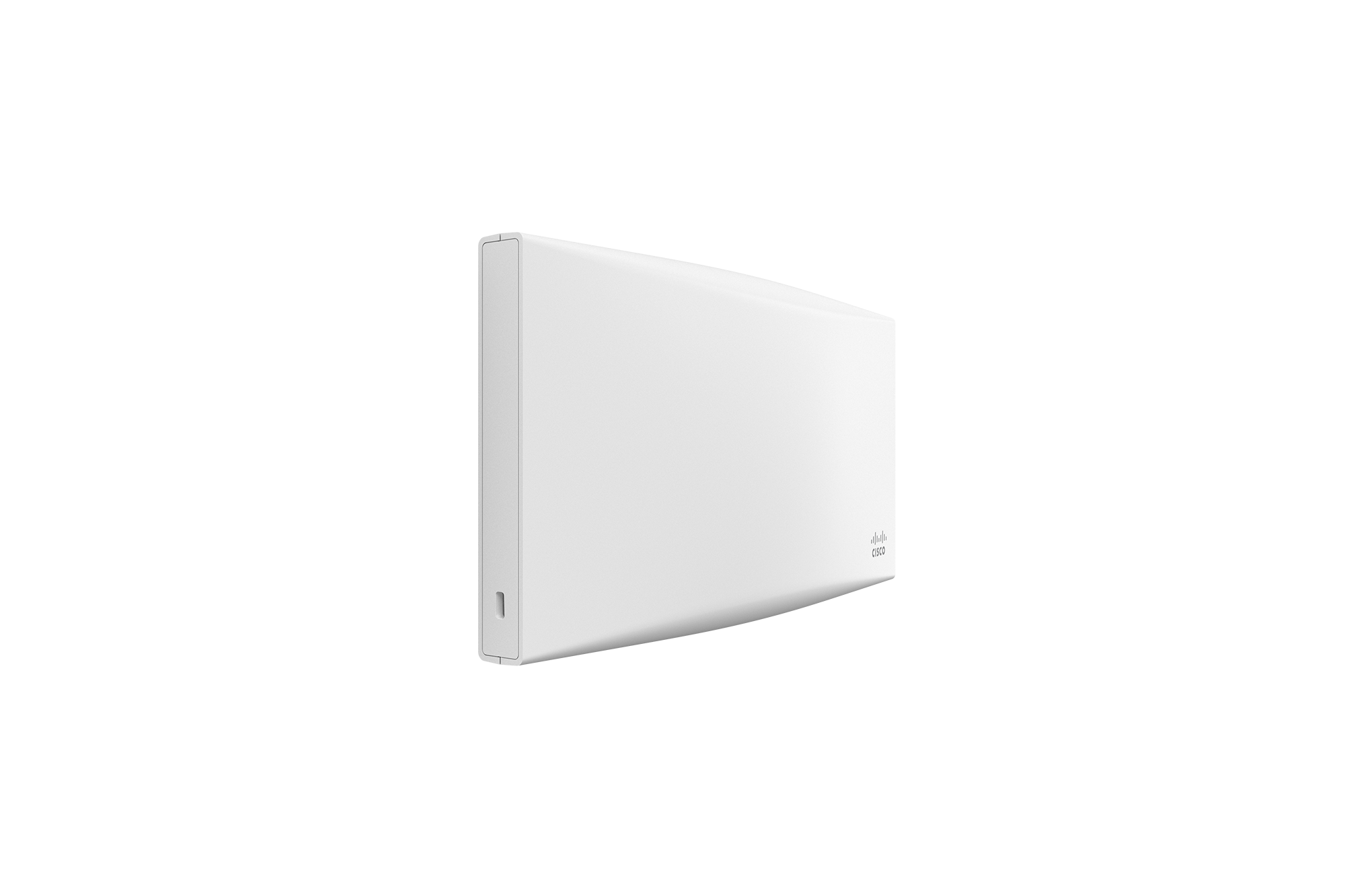

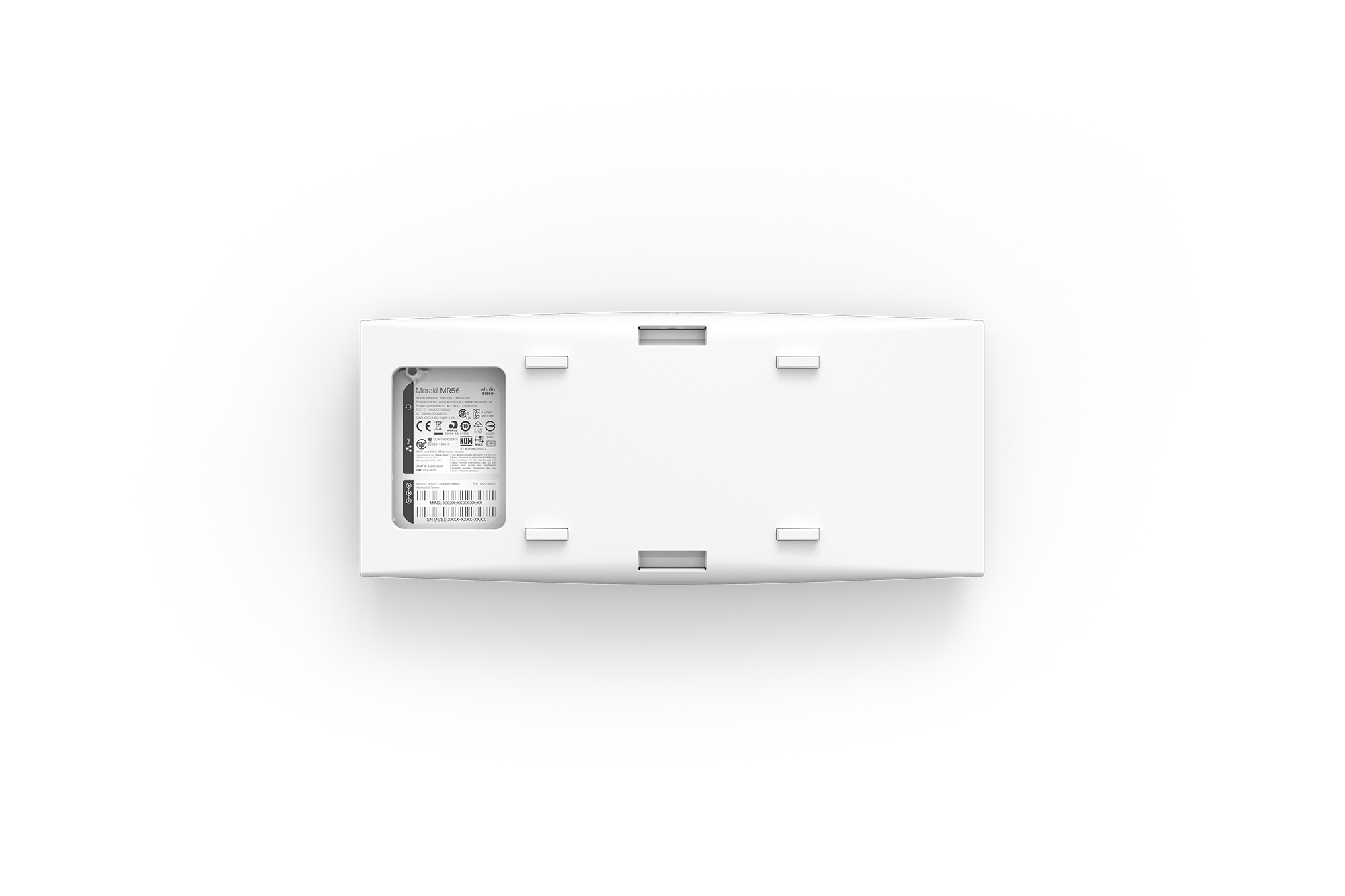

Meraki MR56 access point with Enterprise License – MR56 Bundle

Meraki MR56 Wi-Fi 6 8×8:8 MU-MIMO access point with Enterprise License – MR56 Bundle

SKU: MR56~PVAR Categories: , Brand: Cisco Meraki


High Performance 802.11ax Wireless

The Meraki MR56 is an 8×8:8 802.11ax access point. It truly raises the bar for wireless power and speed. In fact, it’s the perfect for next-gen AP for in offices, schools, hospitals, shops, and hotels. And, for high-density settings, MR56 offers high throughput, security, and ease of use at a surprising price!

Under the hood of the MR56

MR56 pushes a 5.9 Gbps* aggregate frame rate. It also has concurrent 2.4 GHz and 5 GHz radios. Plus, you’ll enjoy a huge increase in # of connections over 802.11ac.

The MR56 effortlessly combines powerful hardware, and rigid security. As a result, the it makes a great platform for the most demanding uses. High-density use cases and bandwidth intensive applications like voice and high-definition video? No problem!

What is the Meraki Advanced (Enterprise) License?

It is important to note that athe MR56, like all Meraki appliances, needs a current, valid license to operate. This is because Merakis are managed from the cloud, and the different license options determine the features you have access to, and the length of service. All Meraki MR Access Points only have one license type, a general “wireless AP” license. However, the license has two tiers: MR Advanced and MR Upgrade. And it can apply to any Meraki access point, so long as there is one license for every AP in the account.

– The MR Advanced license includes a device (Enterprise) license for an MR access point itself  plus the Umbrella add-on license which enables Umbrella to function on that access point. This license is generally purchased for licensing a new MR access point that does not already have a license.

– The MR Upgrade license is basically an add-on license and enables Umbrella functions only. It’s only good for MR access points with an active device (Enterprise) license. This license is generally purchased for MR access points that already have a basic enterprise license (not enabled for Umbrella).

Cisco Umbrella?

The thing is, users today work from anywhere — and they’ll often bypass the VPN to do it. Cisco Umbrella provides a turbo-boost to the security of your apps, data, and users.

Cisco Umbrella is a cloud security service that provides a first line of defense against threats, wherever users access the internet. Umbrella offers flexible cloud security when and how you need it. It combines multiple security functions into one solution, so you can extend protection to devices, remote users, and locations anywhere. It’s a super-easy way to effectively protect your users everywhere in minutes. Whether on or off the corporate network. Umbrella is deployed enterprise-wide in minutes and gives your security team the threat intelligence and context they need to block threats before they become attacks.

Basically, you’re hooking in to Cisco’s own world-wide security network to protect your own little corner of the world.

Of course, Corporate Armor can answer any other question you may have about this or any other Meraki product or service. Just call us at 877-449-0458, or email us with any questions you may have. We have long experience with the Meraki family of products and solutions. And, our advice will be guided solely by what is best for you and your unique needs.


Highlights of the Meraki MR56

  • 4 radios: 2.4 GHz, 5 GHz, dual-band
  • Embedded WIDS/WIPS and Bluetooth
  • 8-stream MU-MIMO 802.11ax compatible
  • 1 × 5 Gbps Multigigabit Ethernet port
  • PoE: 802.3at

Cisco/Meraki MR56 DataSheet



Learn more with our original content

2×2:2, 3×3:3, What do these mean?

Meraki MR56 vs Meraki MR57: Is Wi-Fi 6E really that much better?

Meraki MR57 Wi-Fi 6E access point – You saw it here first!

Additional information

Weight 7 lbs
Dimensions 12 × 11 × 6 in

No License, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years, 7 Years, 10 Years

Product Description Cisco Meraki MR56 - wireless access point - cloud-managed
Device Type Wireless access point
Form Factor External
Frequency Band 2.4 GHz, 5 GHz
Included Accessories Mounting kit
Power Over Ethernet (PoE) Supported PoE+
Power DC 12 V (non-PoE) / 42.5 - 57 V (PoE+)
Manufacturer Warranty Limited lifetime warranty
Connectivity Technology Wireless
Data Transfer Rate 5.9 Gbps
Line Coding Format 1024 QAM, OFDMA
Cloud-Managed Yes
Status Indicators Power, boot state, status
Features Firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, AES encryption, guest access, opportunistic key caching (OKC), packet aggregation, 8x8:8 streams, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT)
Encryption Algorithm AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open
Authentication Method MS-CHAP v.2, Extensible Authentication Protocol (EAP)
Compliant Standards CSA, VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RSS-102, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, FCC CFR47 Part 15 C, EN 62311, EN 300 328, EN 50385, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208, NCC LP0002
Antenna Internal
Interfaces 1 x 1/2.5/5GBase-T (PoE+) - RJ-45
Power Device External power adapter
Voltage Required DC 12 V (non-PoE) / 42.5 - 57 V (PoE+)
Power Consumption Operational 22 Watt
Service & Support Limited warranty - replacement - lifetime
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
