CradlePoint R2155 Ruggedized 5G router – exterior-mounted, IP67-rated mobile router

CradlePoint R2155 Ruggedized 5G router – exterior-mounted, IP67-rated mobile router. High bandwidth, exterior-mounted super router that provides mass transit, public safety, and similar use cases. The latest cellular performance in an unusually flexible and simple form.

This product is currently out of stock and unavailable.

SKU: MB-2155-5GB~PVAR Categories: , Brand: Cradlepoint

Description

The CradlePoint R2155 Ruggedized 5G router is an industrial wireless 5G router. That means it uses the NEW 5G LTE as its internet connection. Before many vendors have come out with their first 5G products, Cradlepoint is rolling out its third generation.

The R2100 is able to support the full speed and capabilities of 5G. It’s a high bandwidth, exterior mounted super router that provides mass transit, public safety, and similar use cases with the latest cellular performance in an uniquely flexible and simple form.

The R2100 series is designed to be mounted on the roof of a vehicle or attached to IoT cabinet. It integrates the modem, antennas, and router into a single aerodynamic, rugged casing. This greatly simplifies deployment.

The CradlePoint R2155 Ruggedized 5G router comes with or without Wi-Fi 6 and can be deployed as a self contained router or to supplement an existing router as a 5G adapter. The Wi-Fi version is the R2105, and the without Wi-Fi version is the R2155.

Sleek, simple, rugged

The R2100 integrates the modem, antennas, and router into a single aerodynamic, IP67-rated casing. It guards against weather, vibration, and shock. Sold with or without Wi-Fi 6, it can servce as a self contained router or to support an existing router as a 5G adapter.

Since antenna cables are no longer necessary, many vehicle installations will only require one power cable and a single small hole to the router on the roof.

You can add 5G to a current setup by deploying the R2100 in Captive Modem mode as an adapter that is controlled by an attached Cradlepoint router. Then, NetCloud treats the R2100 as an internal modem, which eliminates the need for a separate license.

The Cradlepoint R2100 Ruggedized 5G router is powered by a NetCloud Service subscription plan. This includes everything you need to unlock the power of 5G at the network edge. It all works together, which makes it easy to deploy, connect, and secure edge applications at scale across the organization.

The service includes a warranty for as long as there is an active subscription. In addition, it includes online training and live and online support.

These plans are available with either the NetCloud Performance Mobile Service plan or the NetCloud Ruggedized IoT Service plan. And each of these plans come with options for the Advanced Plan, in 1, 3, and 5 year options.

CradlePoint R2155 Specs

The R2100 series has a built in, 5G NR FR1 low-, mid band, and 4G LTE Category 20 modem, and 1 x 2.5 GbE RJ45 (LAN only) port. The Wi-Fi is dual radio, dual band, concurrent operation (2.4 GHz and 5 GHz) with 2×2 MU-MIMO 802.11ax Wi-Fi 6 with DFS.

It pushes 900 Mbps of stateful firewall throughput, 650 Mbps of IPS throughput, and 300 Mbps of IPsec VPN throughput. It can run 10 concurrent VPN tunnels, and 32,000 concurrent sessions (TCP).

CradlePoint R2155 Ruggedized 5G router highlights

  • 5G and LTE (CAT20) wireline connectivity
  • Dual-band, dual-concurrent; 802.11ax Wi-Fi
  • 900 Mbps of stateful firewall throughput
  • 650 Mbps of IPS throughput




Read more

Cradlepoint R2100 Ruggedized 5G router

Additional information

License

Mobile Performance Essentials + Advanced, Mobile Performance Essentials, Ruggedized IoT Essentials + Advanced, Ruggedized IoT Essentials

Duration

1 Year, 3 Years, 5 Years

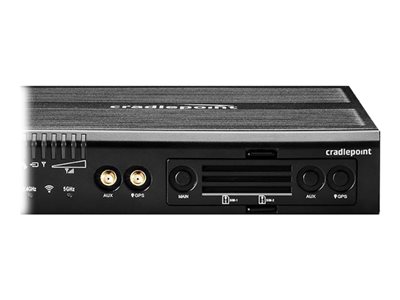

Product Description Cradlepoint AER2200-600M - wireless router - WWAN - 802.11a/b/g/n/ac Wave 2 - desktop
Device Type Wireless router
Enclosure Type Desktop
Bundled Services 1 year NetCloud Branch Essentials Plan
Cellular Protocol DC-HSPA+, LTE Advanced
WAN Ports Qty 10
Frequency Band 2.4 GHz / 5 GHz
Capacity Concurrent IPSec tunnels: 20
Network / Transport Protocol L2TP, IPSec, DNS
Routing Protocol OSPF, RIP, BGP, NHRP, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol SNMP, HTTP, HTTPS, CLI
Features NAT support, power over Ethernet (PoE), load balancing, VLAN support, content filtering, MAC address filtering, IPv6 support, IP address filtering, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), virtual server support, WAN failover, DHCP server, DNS proxy, port forwarding, 2T2R MIMO technology, DHCP relay, DHCP client, GRE tunneling, SMS remote control, Multicast Proxy support, Diagnostic Function, security lock slot (cable lock sold separately), DiffServ Code Point (DSCP) support, 4x4 MU-MIMO technology, 2x2 MU-MIMO technology
Compliant Standards IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2, UL, cUL, CB, IC, FCC, RoHS, EN 60950-1, WEEE, PTCRB, GCF, RoHS2, RCM, CP65
Localization North America
Manufacturer Warranty Limited lifetime warranty
Connectivity Technology Wireless, wired
Encryption Algorithm WPA, WPA2, WPA2-Enterprise, IKEv2, WEP
Authentication Method RADIUS, TACACS+
RAM 512 MB
Flash Memory 8 GB
Built-in Devices GPS
Status Indicators Power, signal strength, VPN, Wi-Fi
Type Wireless cellular modem
Max Transfer Rate 600 Mbps
Interfaces WAN / LAN: 6 x 10Base-T/100Base-TX/1000Base-T - RJ-45 u00a6 USB 2.0: 1 x u00a6 Antenna: 4 x SMA u00a6 Antenna: 2 x R-SMA u00a6 WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 u00a6 Console: 1 x RJ-45
Expansion Slots 2 SIM
Antenna External detachable
Antenna Qty 4
Power Device External power adapter
Included Accessories Rubber feet
Cables Included 1 x network cable
Service & Support Limited warranty - lifetime u00a6 Technical support - phone consulting - 1 year u00a6 Technical support - web support - 1 year
Min Operating Temperature 32 u00b0F
Max Operating Temperature 122 u00b0F
Humidity Range Operating 10 - 85% (non-condensing)
