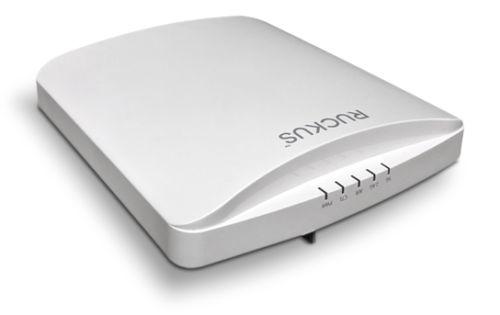

Ruckus R750 WiFi-6 access point – 901-R750-WW00


Ruckus R750 – Wireless access point – Wi-Fi 6 – 2.4 GHz, 5 GHz. The Ruckus R750 Wi-Fi 6 Access Point, like all Ruckus access points, quadruples Wi-Fi 5 throughput out of the box.

SKU: 901-R750-WW00 Category: Brand: Ruckus Wireless


Ruckus builds and delivers purpose driven networks that perform in the tough environments of the industries they serve. The Ruckus R750 WiFi-6 access point, like all Ruckus access points, quadruples Wi-Fi 5 throughput out of the box. Plus, Ruckus Wi-Fi 6 WLAN technologies use 1024-QAM modulation to increase data rates for compliant devices by up to 25 percent.

Wi-Fi 6 is the foundation of many growing enterprise networks. It evolves beyond the 802.11ac standard in its dynamic bandwidth allocation and MIMO capabilities. It’s also backward-compatible with Wi-Fi 5, making it a simple, flexible deployment option.

By the numbers

The RUCKUS R750 is a high-end dual band, dual concurrent Wi-Fi 6 AP. It supports 8 spatial streams (4×4:4 in 5GHz, 4×4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with greater capacity, coverage and performance in ultra-high dense environments. It pushes 1.15 Gbps in the 2.4 GHz band, and 2.4 Gbps in the 5 GHz band.

This powerhouse is also easy to manage through Ruckus physical and virtual cloud management options. If you have any questions about this or any Ruckus product, please don’t hesitate to reach out to Corporate Armor or call us at 877-449-0458!  Datasheet

Ruckus R750 WiFi-6 access point

  • Supports 8 spatial streams (4×4:4 in 5GHz, 4×4:4 in 2.4GHz)
  • Pushes 1.15 Gbps in the 2.4 GHz band
  • Pushes 2.4 Gbps in the 5 GHz band
  • Supports 1024 concurrent users

Additional information

Weight 3.122 lbs
Dimensions 9.30 × 8.10 × 2.40 in
Product Description Ruckus R750 - wireless access point
Device Type Wireless access point
Form Factor External
Localization Worldwide
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 1148 Mbps u00a6 Maximum data rate (5 GHz): 2400 Mbps
Capacity Maximum associated clients: 1024 u00a6 SSIDs per radio: 31
Power Over Ethernet (PoE) Supported PoE+
Connectivity Technology Wireless
Line Coding Format OFDM
Network / Transport Protocol L2TP, PPPoE
Features Auto-sensing per device, DHCP support, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, IPv6 support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), Space Time Blocking Code (STBC), ceiling mountable, security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, SU-MIMO technology, 4x4:4 streams
Encryption Algorithm AES, WPA-PSK
Authentication Method RADIUS, LDAP, Basic Service Set Identifier (BSSID), Active Directory
Compliant Standards UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1
Directivity Omni-directional
Gain Level 3 dBi
Interfaces 1 x 1000Base-T (PoE+) - RJ-45 u00a6 1 x USB 2.0 - Type A u00a6 1 x 2.5 GBase-T (PoE+)
Min Operating Temperature 32 u00b0F
Max Operating Temperature 122 u00b0F
Humidity Range Operating 0 - 95% (non-condensing)
