Aruba 8320 Ethernet Switch10 Gigabit Ethernet3 Layer SupportedModularOptical Fiber1U HighRack-mountable JL479A#ABA

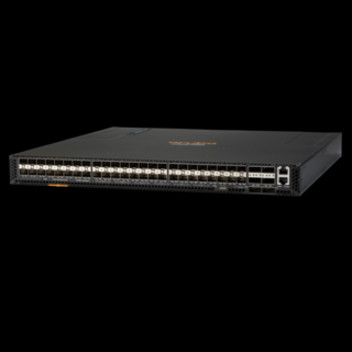

Aruba 8320 Ethernet Switch
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity.
Supports layer 3 switching for enhanced performance and usability.
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components.
Built-in power supply to ensure all components are being supplied with accurate voltage.
High performance 2.5Tbps with 1,905 mpps.
High availability with redundant power and fans.
ArubaOS-CX enables automation and programmability using built-in REST APIs and Python scripts.
Intelligent monitoring and visibility with Aruba Network Analytics Engine.
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6.
1U chassis with 48 ports of 10G and 6 ports of 40G.

SKU: JL479A#ABA Category: Brand: Aruba Networks


Aruba 8320 Ethernet Switch

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE/40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.

What’s new

  • High-performance Aruba campus core and aggregation switch with 2.5 Tbps switching capacity.
  • ArubaOS-CX automates using REST APIs and Python scripts.
  • Monitor and troubleshoot with Aruba Network Analytics Engine.
  • Compact 1U switch with 48 ports of 10GbE and 6 ports of 40GbE.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.


Game-changing Business Agility

The Aruba 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and IoT era.

Fully programmable with ArubaOS-CX, it brings automation and visibility and helps troubleshoot via simple scripting.

Aruba Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.

Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always on networking.

Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.

Modern Software System Simplifies and Automates

The Aruba 8320 Switch Series is based on the new ArubaOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks.

The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.

It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.

High Performance

The Aruba 8320 Switch Series includes a high-speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.

The compact 1U switch delivers line rate 10GbE/40GbE connectivity and very low latency for support of full Internet routes.

You get resiliency and high availability with redundant power supplies and fans.

Additional information

Weight 35.5 lbs
Dimensions 25.40 × 22.20 × 5.90 in
Package Contents 8320 Ethernet Switch, 5 x Fan Trays, 2 x Power Supplies, 2 x Post Rack Kit,
Product Type Ethernet Switch
Manufacturer Part Number JL479A#ABA
Manufacturer Website Address
Power Source Power Supply
Layer Supported 3
Form Factor Rack-mountable
Manufacturer Hewlett Packard Enterprise
Product Name 8320 Ethernet Switch
Network Technology 10GBase-X, 40GBase-X
Product Series 8320
Brand Name Aruba
Expansion Slot Type SFP+, QSFP+
Compatible Rack Unit 1U
Ethernet Technology 10 Gigabit Ethernet, 40 Gigabit Ethernet
Number of Total Expansion Slots 54
Number of SFP+ Slots 48
Modular Yes
Media Type Supported Optical Fiber
Shared SFP Slot No
Port/Expansion Slot Details 48 x 10 Gigabit Ethernet Expansion Slot, 6 x 40 Gigabit Ethernet Expansion Slot
Redundant Power Supply Supported Yes
UNSPSC 43222612
