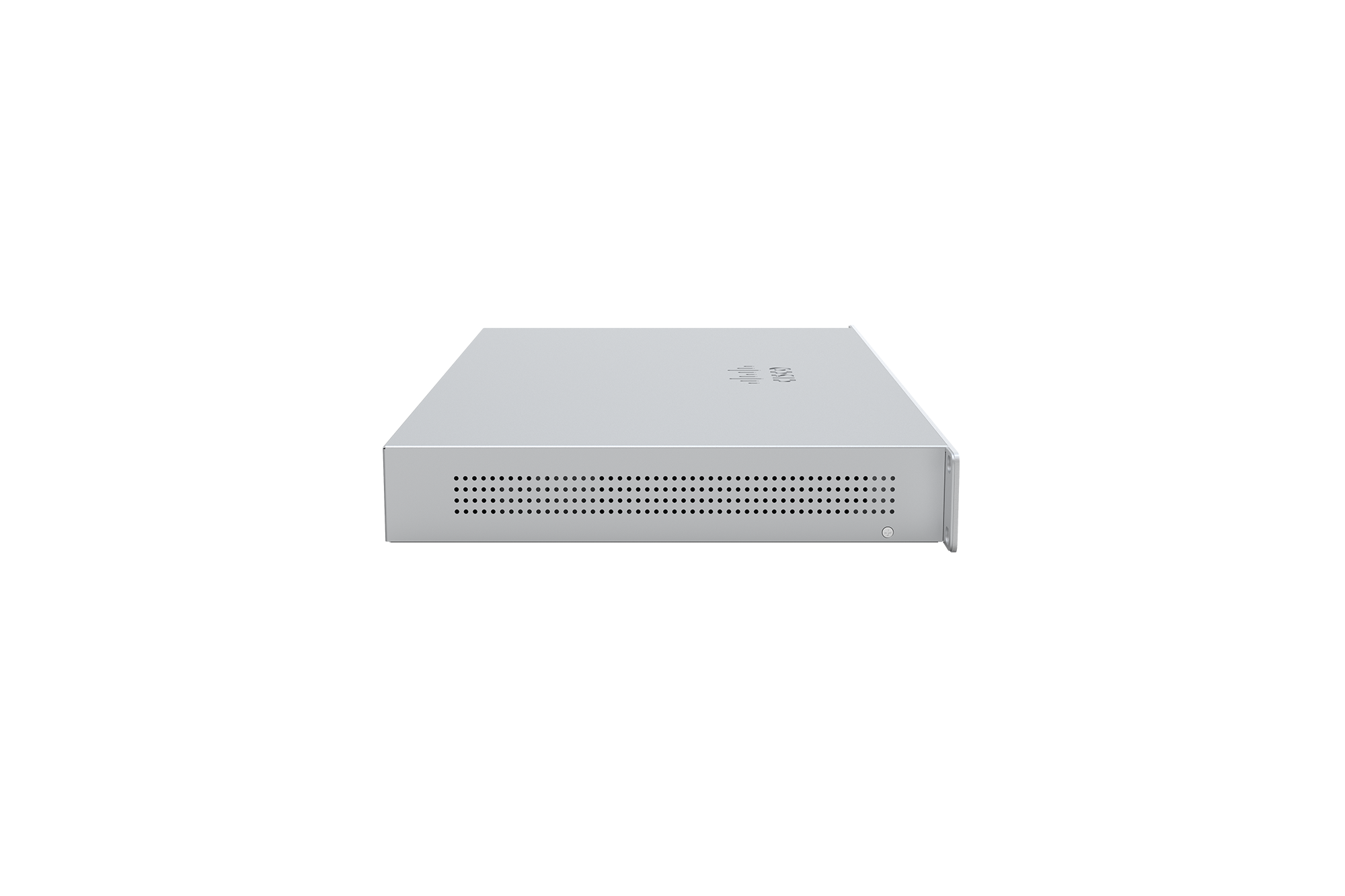

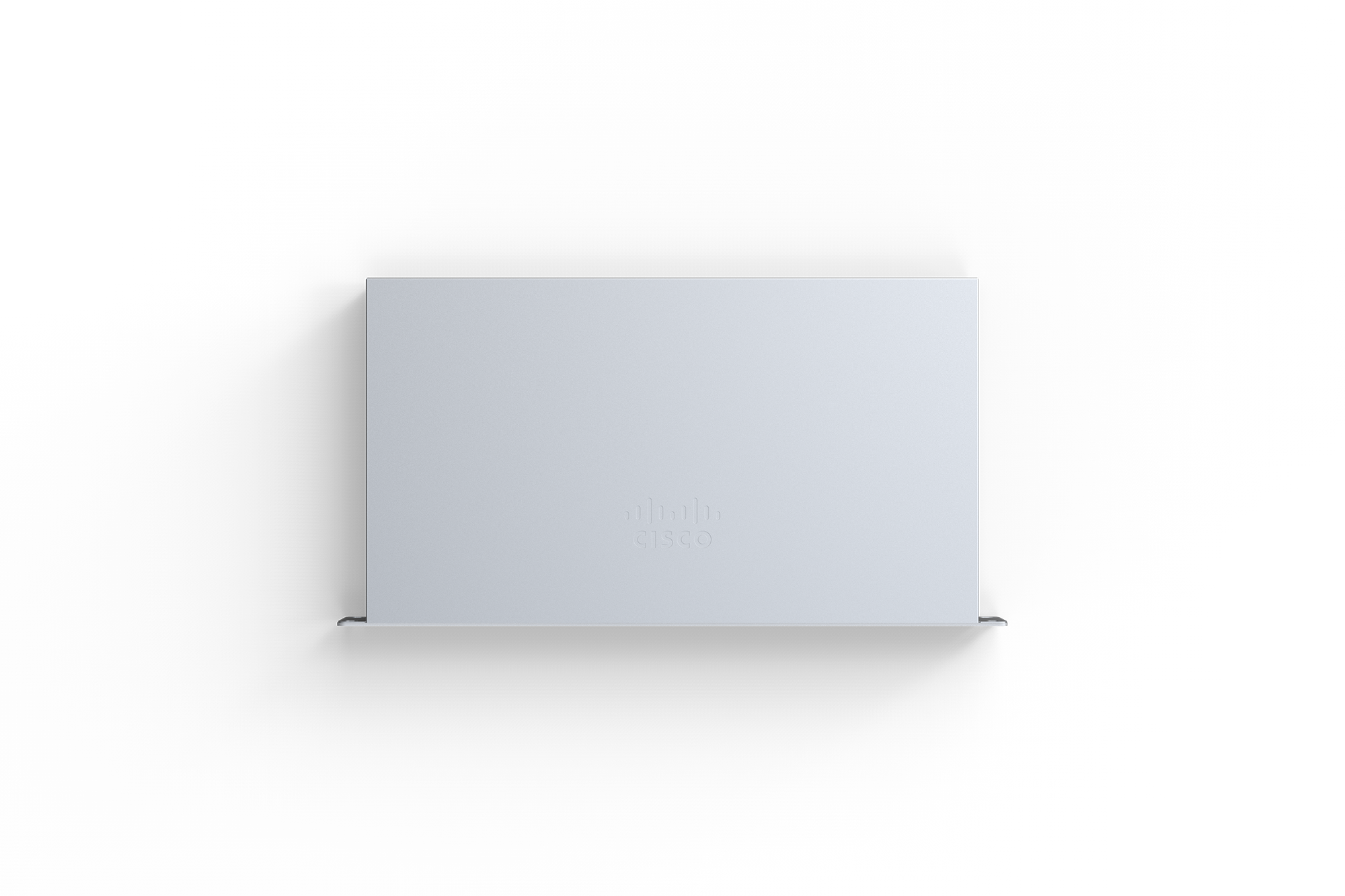

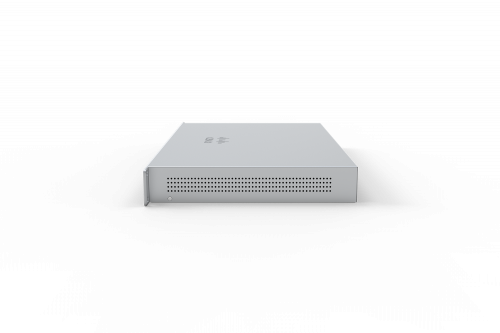

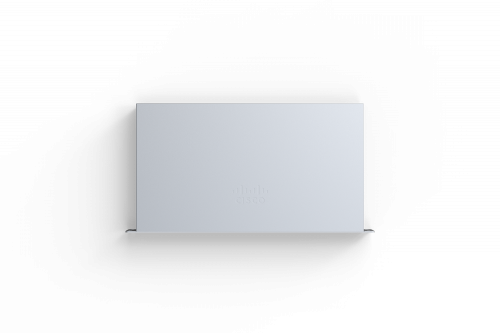

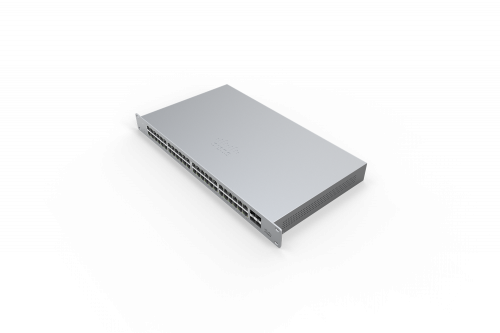

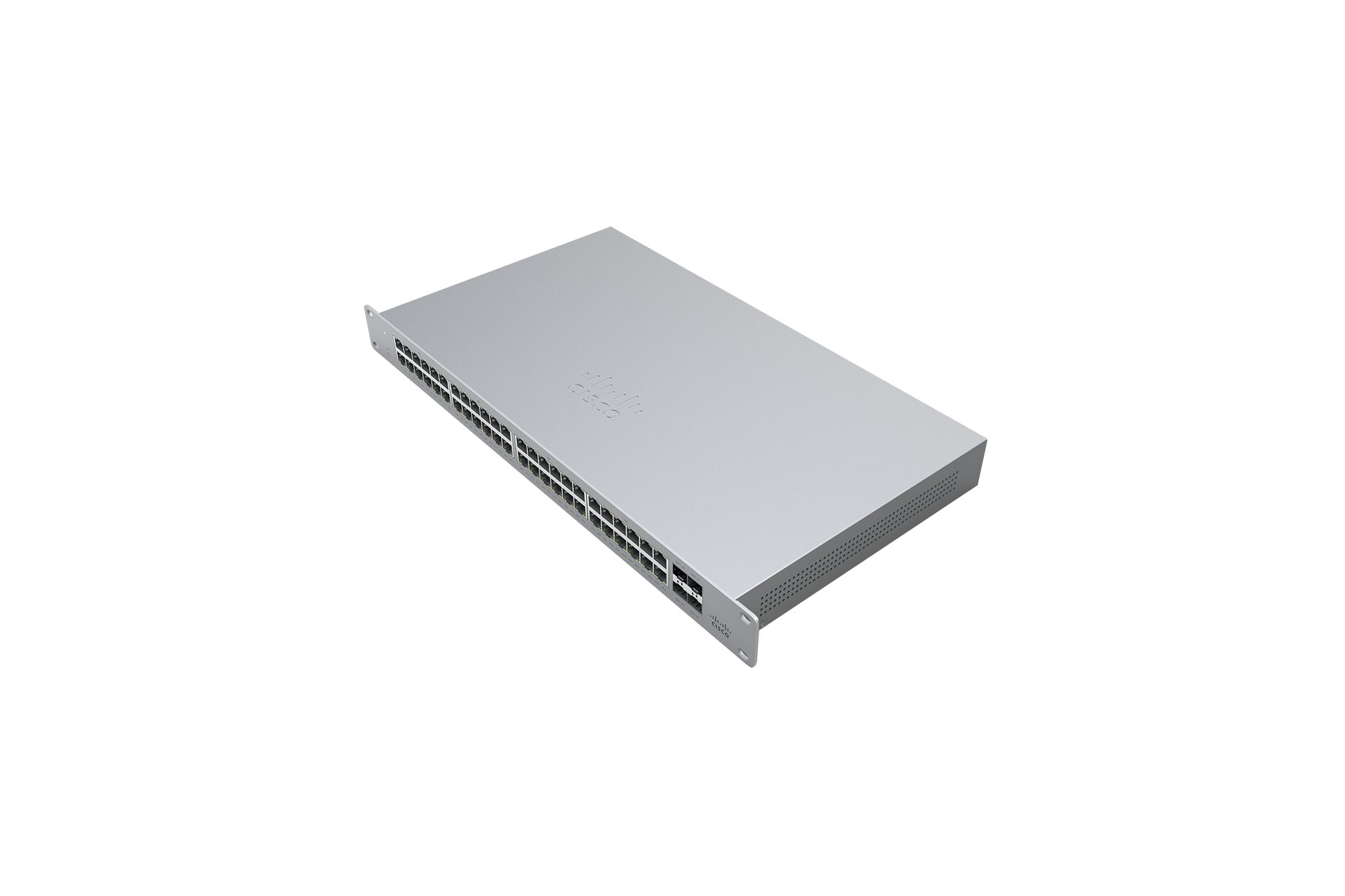

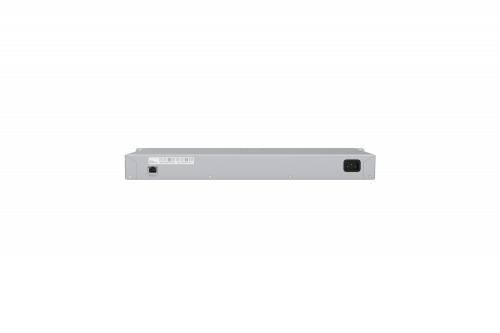

Meraki MS125-48 cloud managed switch 48 ports managed MS125-48

Cisco Meraki MS125-48 Cloud Managed  switch 48 ports managed MS125-48- 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ – desktop, wall-mountable

Clear
SKU: MS125-48~PVAR Categories: , Brand: Cisco Meraki

Description

The Meraki MS125-48 cloud managed switch provides Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Meraki switches are perfect for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

You manage all Meraki switches through an easy-to-use cloud interface. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

Usability

The Meraki user interface is gloriously clean and easy to navigate, but quite powerful. Every Meraki product lives in the same place in the Meraki interface. Your switch, access point, and firewall will all know each other. They can work with other vendor’s appliances, but they work best with other Merakis.

The GUI is online, as mentioned. You can reach it from anywhere, as long as you have the credentials. So, you can manage the network from any device that has a browser. Meraki MS Series switches also easily stack. It’s all done for you in the Meraki cloud control panel.

Plus, because the MS120 is cloud-managed, it’s always ready to receive the latest firmware updates. Basically, the MS125-48 is no more difficult to set up than a simple hub, and you can manage multiple units from one location or by remote administrators.

If you have multiple Meraki switches in a network, they can easily be managed all at once. Or, you can configure in groups that need to behave differently.

Security

Thankfully, there are many security features ‘living’ inside each Meraki switch. Of course, it has all the basic security one would expect from a switch, like the ability to use a RADIUS server for authentication. But here are also additional protections, necessary for a device designed to protect information legally protected by HIPAA away from prying eyes.

And, two-factor authentication is the default for administrators accessing the dashboard. The switch also supports role-based access control that you can configure by device. In a healthcare environment, this could be very useful. For example, you can grant certain administrators access to switches on the clinical network, or separate admins by department.

That can be a good way to ensure that the entire healthcare system cannot be made vulnerable to the actions of one administrator.

In fact, the Meraki MS125-48 cloud managed switch even you to configure security down to the individual port. So, even if attackers were able to defeat every other form of security, they would still need a specifically authorized device to make any changes. And, the MS125-48 features Dynamic Host Configuration Protocol snooping.

This can be used to indicate an attacker’s reconnaissance on a network. It would then block such activities automatically.

Features

The MS125 series are Gigabit-speed Layer 2 switches, with Gigabit uplinks. Varying levels of PoE/PoE+ power are available as well. Additionally, all models support virtual stacking. The MS120 boasts switching capacity of up to 176 Gbps. The larger models, like the 48-port models, offer of PoE+ power, with options for a 740W power budget. Given their competitive pricing, that makes them a great choice for midsized offices.

Remember, Meraki switches utilize the same interface as all Meraki devices. With this price-to-performance ratio and ease of set-up, they are a great place to start looking. If you would like to know more about the Meraki MS series or any other Meraki product, please email us or call Corporate Armor at 877-449-0458.

Meraki MS125-48 cloud managed switch highlights

  • 4 x 10G SFP+ uplink interfaces on all models
  • Lifetime hardware warranty and advanced replacement at no additional cost
  • Up to 176 Gbps bandwidth support
  • Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, etc.

Meraki MS datasheet



Additional information

Weight 0.01 lbs
License

No License, Enterprise

Duration

Hardware Only, 1 Year, 3 Years, 5 Years, 7 Years, 10 Years

Product Description Cisco Meraki Cloud Managed MS125-48 - switch - 48 ports - managed
Device Type Switch - 48 ports - managed
Enclosure Type Desktop, wall-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance Switching capacity: 176 Gbps u00a6 Forwarding rate: 130.95 Mpps
Capacity VLANs supported: 4094
MAC Address Table Size 16000 entries
Jumbo Frame Support 9578 bytes
Remote Management Protocol SNMP
Features Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), DHCP client, security lock slot (cable lock sold separately), crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation
Compliant Standards CSA, IC, FCC, RoHS, RCM
Power AC 120/230 V (47 - 63 Hz)
Manufacturer Warranty Limited lifetime warranty
Authentication Method RADIUS
Interfaces 48 x 1000Base-T RJ-45 u00a6 4 x 10Gbit LAN SFP+
Voltage Required AC 120/230 V (47 - 63 Hz)
Power Consumption Operational 42 Watt
Rack Mounting Kit Included
MTBF 1,628,120 hours
Service & Support Limited warranty - advance parts replacement - lifetime - response time: next business day
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
