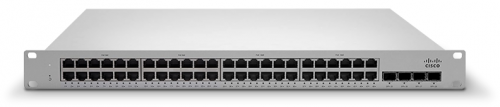

Meraki MS225-48FP cloud managed switch – Gigabit PoE switch with Enterprise License

SKU: MS225-48FP~PVAR Categories: , Brand: Cisco Meraki


The Meraki MS225-48FP cloud managed switch provides Layer 2 access switching for branch and small campus locations. The Meraki MS225 includes 10G SFP+ uplinks. and physical stacking ability to guarantee performance. Stacking capabilities and 10G SFP+ uplinks on every model guarantees performance on every model. The Meraki MS225-48FP also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements. Meraki switches are built from the ground up to be easy to set up and manage. And they accomplish this without compromising any power or flexibility whatsoever.

Features of the Meraki MS225-48FP

The Meraki MS225-48LP cloud managed switch is managed through an elegant, intuitive cloud interface that is unmatched for its’ ease-of-use. To bring up a Meraki switch, just plug it in. There’s no need for complicated configuration files, or even direct physical access to the switch. You definitely don’t need IT expertise. However, Meraki’s centralized management gives you deep visibility into what’s going on in your network. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Meraki MS225-48FP cloud managed switch: Highlights

  • Gigabit Access switching with 24 and 48 port models and optional PoE+
  • 4 x 10G SFP+ uplink interfaces on all models
  • Built-in dual stacking interfaces with up to 80G bandwidth
  • Up to 176 Gbps bandwidth support
  • Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and more
  • Lifetime hardware warranty and advanced replacement at no additional cost

Meraki MS225 series datasheet

Read more!

Corporate Armor makes the Inc. 5000 list for the third year!

The Meraki MS Series 3-for-2 Sale!

Additional information

Weight 18.71 lbs
Dimensions 578 × 483 × 127 in

No License, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years, 7 Years, 10 Years

Product Description Cisco Meraki Cloud Managed MS225-48FP - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Remote Management Protocol SNMP
Features Redundant Power System (RPS) connector
Compliant Standards CSA, IC, FCC, RoHS, RCM
Power AC 120/230 V (47 - 63 Hz)
Power Redundancy Optional
Manufacturer Warranty Limited lifetime warranty
Max Units In A Stack 8
Authentication Method RADIUS
Interfaces 48 x 1000Base-T RJ-45 PoE+ u00a6 4 x 10Gbit LAN SFP+ uplink
Power Device Internal power supply
Voltage Required AC 120/230 V (47 - 63 Hz)
MTBF 320,555 hours
Service & Support Limited warranty - lifetime
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
