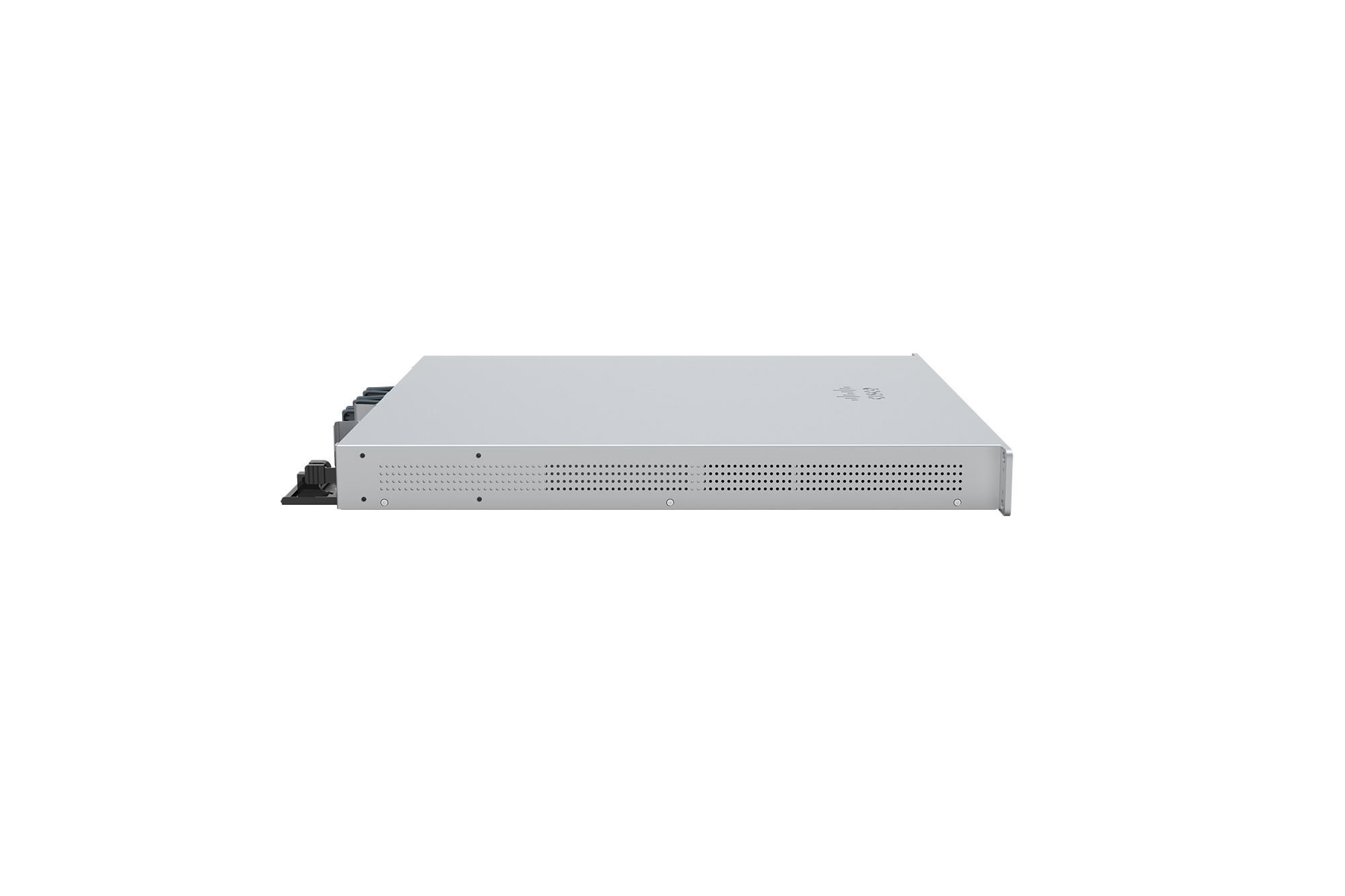

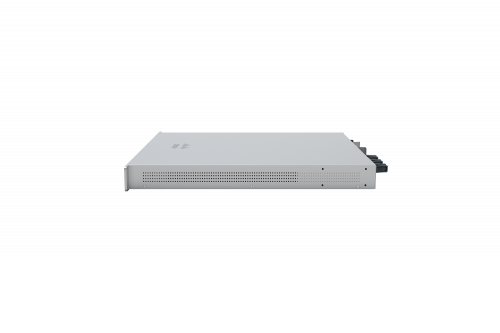

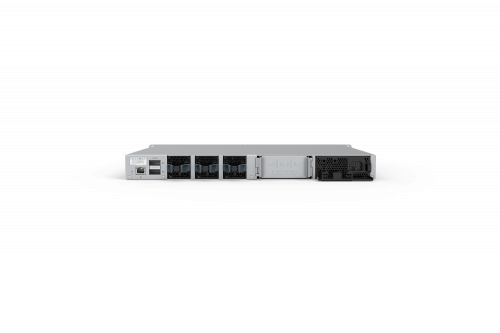

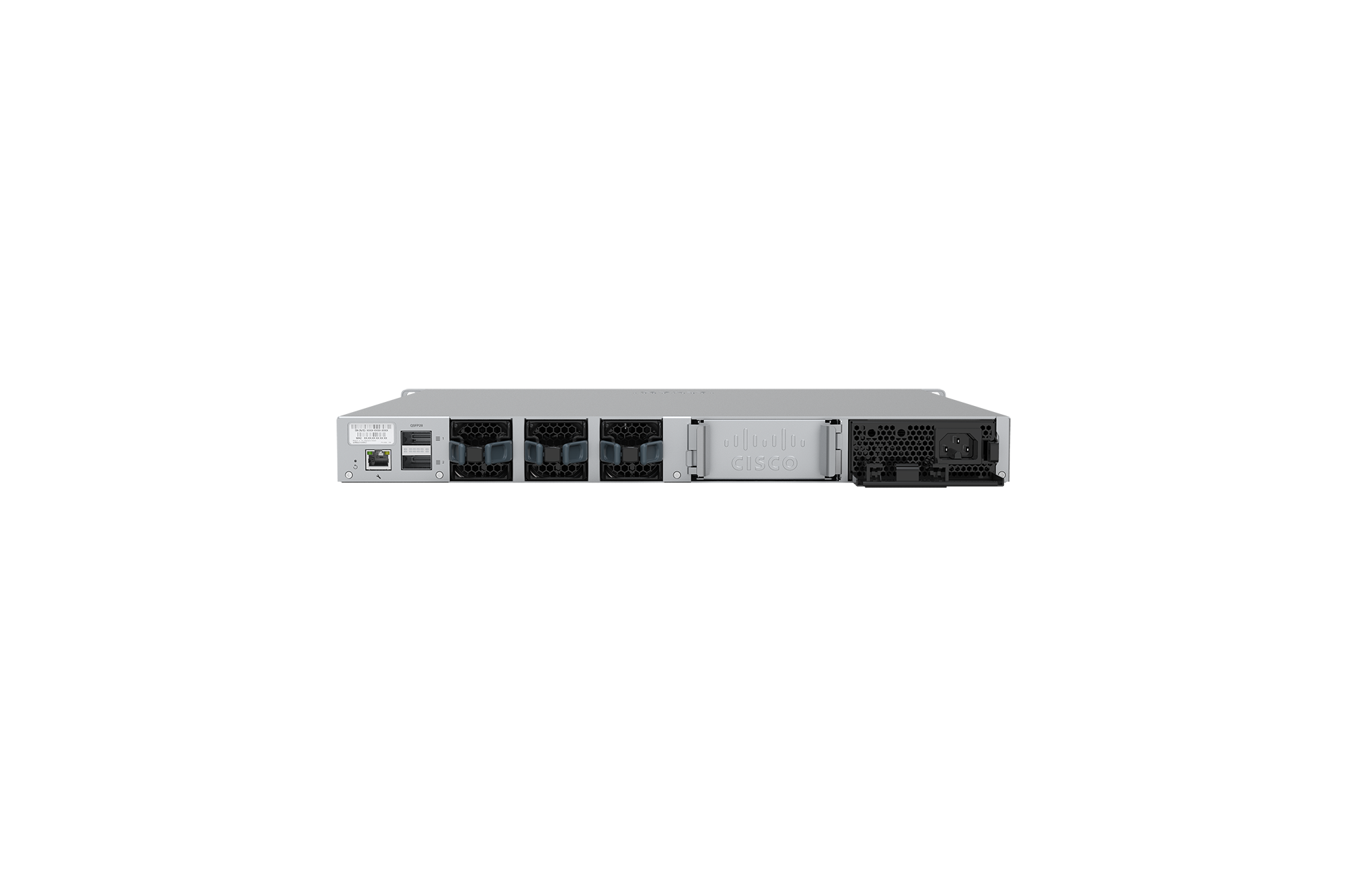

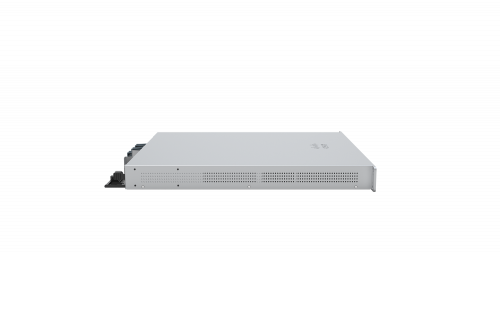

Meraki MS355-48X2 Cloud-Managed Switch with Enterprise License

Meraki MS355-48X2 Cloud-Managed Switch with Enterprise License


SKU: MS355-48X2~PVAR Categories: , Brand: Cisco Meraki


Meraki MS355-48X2 Cloud-Managed Switch is wonderful at allowing a network admin to configure a VPN mesh network without having to have highly specialized knowledge. There is no CLI, there is only a super-intuitive GUI. Also, Meraki support helps you set it up as you add nodes to your network. Meraki MS Series switches are amazingly easy to deploy, and amazingly easy to manage. Period.

The famous Meraki GUI

And the Meraki user interface is gloriously clean and easy to navigate. Every Meraki product is cloud-managed, and lives in the same place in the Meraki Meraki MS355-48X2 interface. Your switch, access point, and firewall will all know each other. They can work with other vendor’s appliances, but they work best with other Merakis.

The GUI is online, as mentioned. You can reach it from anywhere, as long as you have the credentials. So, you can manage the network from any device that has a browser. Meraki MS Series switches also easily stack. It’s all done for you in the Meraki cloud control panel.

Plus, your Meraki MS355-48X2 will get an address from your admin VLAN’s DHCP scope and keep it. Even if you unplug it and move it, you will not have to worry about addressing it. Sort of cool. Not only that, Meraki’s Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches.

Meraki MS355-48X2 Cloud-Managed Switch Specs

The Meraki MS355-48X2 is a campus and multi-gigabit stacking access switch. It is for high-performance networks with media-rich applications. The Meraki MS355 also comes with either 24 or 48 1GbE RJ45 ports, and 4 10GbE SFP+ uplinks. It also includes optional PoE/PoE+ support and Layer 3 routing.

The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. They support 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.

It also features up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices. And all MS350s reach up to 688 Gbps stacking bandwidth. They feature dual stacking interfaces with 400 Gbps of bandwidth.

.Who is Meraki MS354 designed for?

Zero-touch provisioning means that the Meraki MS355-48X is brilliant for companies with limited IT teams or IT agencies looking to reduce site calls.

How does it work?

Install your Meraki at the head office or a remote branch. Meraki devices automatically connect to the cloud using SSL encryption. They register on your network and download the configuration. Then, your company receives full visualization and control of the network through an Internet browser. Couldn’t be easier.


Highlights of the Meraki MS355-48X2 Cloud-Managed Switch

  • Available models with up to 24 full 10G mGig ports for 802.11ax access points, servers, and workstations
  • 40G or 10G uplink interfaces on all models
  • Completely cloud-managed
  • Dual stacking interfaces with 400 Gbps of bandwidth
  • Up to 688 Gbps of switching capacity


Meraki MS350 series datasheet


Additional information

Weight 0.01 lbs

No License, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years, 7 Years, 10 Years

Product Description Cisco Meraki Cloud Managed MS355-48X2 - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 1/2.5/5/10GBase-T + 24 x 1000Base-T + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Power Over Ethernet (PoE) UPOE
Performance Switching capacity: 688 Gbps u00a6 Forwarding rate: 512 Mpps
Capacity Tagged VLANs: 4096
MAC Address Table Size 32K entries
Jumbo Frame Support 9600 bytes
Routing Protocol IGMP, VRRP, OSPFv2, static IP routing
Remote Management Protocol SNMP
Features Flow control, auto-negotiation, ARP support, VLAN support, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP server, SMS alert, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, static routing, crossover detection, Bridge protocol data unit (BPDU), Role-Based Access Control (RBAC), push notification, Root Guard, Loop Guard
Compliant Standards CSA, C-Tick, IC, RoHS
Power AC 120/230 V (50/60 Hz)
Manufacturer Warranty Limited lifetime warranty
Max Units In A Stack 8
Authentication Method RADIUS
Interfaces 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE u00a6 24 x 1000Base-T RJ-45 u00a6 4 x 10Gbit LAN SFP+ uplink u00a6 2 x 40Gbit LAN QSFP+ uplink u00a6 2 x 100Gbit LAN QSFP28 stacking
Power Device Internal power supply - hot-plug
Power Provided 740 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 1793 Watt
Rack Mounting Kit Included
MTBF 330,228 hours
Service & Support Limited warranty - replacement - lifetime - response time: next day
Min Operating Temperature 32 u00b0F
Max Operating Temperature 113 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
