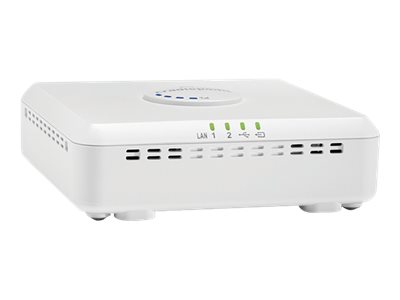

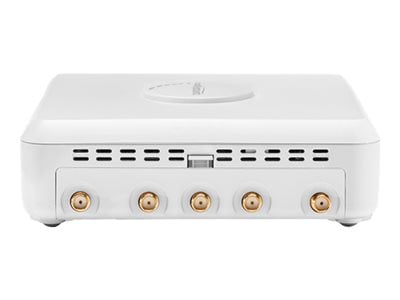

Cradlepoint ARC CBA850-1200M-B – Router – WWAN – GigE – DIN rail mountable, wall-mountable, ceiling-mountable – with 1 year NetCloud Branch LTE Adapter Essentials Plan

SKU: BB-0850120B~PVAR Category: Brand: Cradlepoint

Description

Description: CBA850-1200M-B NC BR LTE ADPT ESS 1YR
Cradlepoint ARC CBA850-1200M-B – Router – WWAN – GigE – DIN rail mountable, wall-mountable, ceiling-mountable – with 1 year NetCloud Branch LTE Adapter Essentials Plan

The Cradlepoint CBA850 is a turnkey branch continuity solution for Gigabit-class LTE failover that integrates seamlessly with existing network and SD-WAN infrastructure. Using secure wireless access, the CBA850 provides the ability to extend management capability to any primary router out of band without the need for a wired connection. Equipped with PoE for flexible, unobtrusive placement anywhere to optimize cellular reception, this powerful solution reduces truck rolls, consolidates infrastructure, and maximizes uptime for businesses that require always-on connectivity.

Key Selling Points
Out-of-band management
PoE placement flexibility

Additional information

Dimensions 0.00 × 0.00 × 0.00 in
Duration

1 Year, 3 Years, 5 Years
Product Description Cradlepoint ARC CBA850-1200M-B - router - WWAN - desktop, DIN rail mountable, wall-mountable, ceiling-mountable
Device Type Router
Enclosure Type Desktop, DIN rail mountable, wall-mountable, ceiling-mountable
Bundled Services 1 year NetCloud Branch LTE Adapter Essentials Plan
Cellular Protocol HSPA+, DC-HSPA+, LTE Advanced Pro
WAN Ports Qty 1
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol PPTP, ICMP/IP, SMTP, FTP, DHCP, DNS, POP3, DDNS
Routing Protocol Static IPv6 routing
Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features DMZ port, NAT support, VLAN support, Stateful Packet Inspection (SPI), content filtering, ALG support, MAC address filtering, IPv6 support, URL filtering, IP address filtering, firmware upgradable, virtual server support, SSH support, WAN failover, DHCP server, DNS proxy, PoE+, port forwarding, plastic housing, reset button, DHCP relay, DHCP client, SMS remote control, security lock slot (cable lock sold separately), cloud managed, 2x2 MIMO technology, 4x4 MIMO technology
Compliant Standards IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at, UPnP, UL, cUL, CB, IC, FCC, RoHS, WEEE, PTCRB, RoHS2
Color White
Localization North America
Connectivity Technology Wired
Authentication Method RADIUS, TACACS+
Built-in Devices GPS
Status Indicators Power, signal strength, LAN, USB, LTE
Line Coding Format 256 QAM
Type Wireless cellular modem
Max Transfer Rate 1.2 Gbps
Interfaces LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 u00a6 USB 3.0: 1 x 9 pin USB Type A u00a6 Management: 1 x console - RJ-45 u00a6 Antenna: 3 x SMA u00a6 LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45
Expansion Slots SIM
Antenna External detachable
Antenna Qty 2
Power Device External power adapter
Enclosure Color White
Included Accessories LTE antennas kit
Cables Included 1 x network cable
Mounting Kit Included
Service & Support Limited warranty - lifetime u00a6 Technical support - phone consulting - 1 year u00a6 Technical support - web support - 1 year
Min Operating Temperature 32 u00b0F
Max Operating Temperature 122 u00b0F
Humidity Range Operating 10 - 85% (non-condensing)
