CradlePoint COR IBR1700-1200M-B wireless router WWAN 802.11a/b/g/n/ac Wave 2 desktop MA1-1700120B-NNA
CradlePoint COR IBR1700-1200M-B wireless router WWAN 802.11a/b/g/n/ac Wave 2 desktop MA1-1700120B-NNA
CradlePoint COR IBR1700-1200M-B wireless router WWAN 802.11a/b/g/n/ac Wave 2 desktop MA1-1700120B-NNA

CradlePoint COR IBR1700-1200M-B wireless router WWAN 802.11a/b/g/n/ac Wave 2 desktop MA1-1700120B-NNA

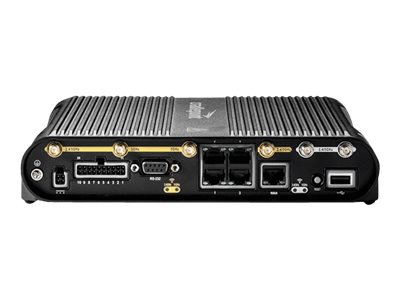

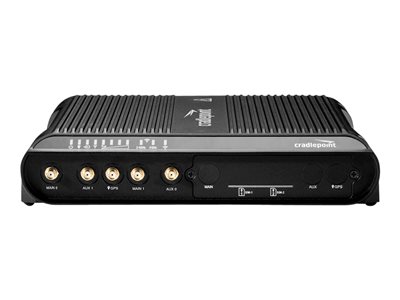

Cradlepoint COR IBR1700-1200M-B – Wireless router – WWAN – 5-port switch – GigE, 802.11ac Wave 2 – 802.11a/b/g/n/ac Wave 2 – Dual Band – with 1 year NetCloud Mobile Essentials Plan

SKU: MA-1700120B~PVAR Category: Brand: Cradlepoint

Description

Description: IBR1700-1200M-B NETCLOUD MOB ESS PKG 1YR
Cradlepoint COR IBR1700-1200M-B – Wireless router – WWAN – 5-port switch – GigE, 802.11ac Wave 2 – 802.11a/b/g/n/ac Wave 2 – Dual Band – with 1 year NetCloud Mobile Essentials Plan

The Cradlepoint COR series is built for your M2M network. It’s an affordable highly-featured, compact router designed for critical business and enterprise applications that require 24 x 7 connectivity.
With its compact size, sleek metal case, mounting bracket, external mobile broadband and Wi-Fi antennas, COR is ideal for use in high-availability applications like ATMs, kiosks, surveillance, vehicles, etc.
Get instant network connectivity with a Cradlepoint COR, just activate the built-in modem and go. Ideal for deployment as a primary connection solution where wired Internet is not available. It also supports traditional wired data networks like DSL or cable for maximum network flexibility.
Increase your Internet availability and ensure maximum uptime with business continuity features like failover/failback standard in Cradlepoint COR. When configured, the router detects network failures and seamlessly switches over to another active connected data source – keeping your network online.
COR also provides secure and reliable VPN functionality, allowing users to create, manage and terminate up to 5 concurrent IPSec VPN sessions. It allows for secure access to company networks for enterprise applications and provides a secure way to transmit sensitive data to and from a remote site.

Whats in the Box

  • Cradlepoint COR IBR1700-1200M-B
  • GPIO / power cable – 3 m

Key Selling Points
External 3G/4G modem antennas
Integrated 3G EVDO, HSPA+, and 4G WiMAX models available
For use in business critical high-availability installations such as ATMs, Kiosks, Surveillance, Vehicles, and so on, that require 24 x 7 connectivity
Increase your network availability with WiPipe powered automatic failover/failback internal functionality
Supports both wireless and wired Internet connections (two Ethernet ports for either LAN/LAN or WAN/LAN)
Secure IPSec VPN
Built-in GPS with NMEA output

Additional information

Dimensions 0.00 × 0.00 × 0.00 in
Duration

1 Year, 3 Years, 5 Years
Product Description Cradlepoint COR IBR1700-1200M-B - wireless router - WWAN - 802.11a/b/g/n/ac Wave 2 - desktop
Device Type Wireless router - 5-port switch (integrated)
Enclosure Type Desktop
Bundled Services 1 year NetCloud Mobile Essentials Plan
Cellular Protocol HSPA+, DC-HSPA+, FDD LTE, TDD LTE, LTE Advanced Pro
Cellular Band LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B29, LTE B66, LTE B30, LTE B41, LTE B38, LTE B46, LTE B14, LTE B71
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz / 5 GHz
Performance Maximum throughput: 950 Mbps
Capacity Connected devices: 192 u00a6 SSIDs total: 6 u00a6 SSIDs per radio: 2 u00a6 Concurrent IPSec tunnels: 10 u00a6 Concurrent TCP sessions: 32000 u00a6 Recommended number of clients: 30
Network / Transport Protocol L2TP, IPSec, DHCP, DNS, DDNS, IPv6
Routing Protocol OSPF, RIP, BGP, VRRP, NHRP, policy-based routing (PBR)
Remote Management Protocol SNMP, HTTP, CLI
Features Firewall protection, NAT support, VPN support, load balancing, VLAN support, Syslog support, content filtering, Intrusion Detection System (IDS), MAC address filtering, IPv6 support, Intrusion Prevention System (IPS), IP address filtering, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), virtual server support, DHCP server, Multiple SSID support, DNS proxy, port forwarding, Wireless Client Mode, DHCP relay, DHCP client, GRE tunneling, SMS remote control, Multicast Proxy support, metal housing, DiffServ Code Point (DSCP) support, 4x4 MU-MIMO technology, 2x2 MU-MIMO technology, DMZ support, DynDNS, DSCP based QoS
Compliant Standards IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac Wave 2, UL, cUL, CB, RoHS, EN 60950-1, MIL-STD 810G, IP64, WEEE, PTCRB, GCF, RoHS2, SAE J1455
Power DC 9 - 36 V
Localization North America
Manufacturer Warranty Limited lifetime warranty
Connectivity Technology Wireless, wired
Encryption Algorithm WPA2-Enterprise, IKEv2
Authentication Method RADIUS, TACACS+
Built-in Devices GPS, GLONASS, Beidou, Galileo
Status Indicators Power, signal strength, WAN, GPS, 5 GHz, 2.4 GHz
Line Coding Format 256 QAM
Type Wireless cellular modem
Max Transfer Rate 1.2 Gbps
Interfaces WAN / LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 u00a6 USB 2.0: 1 x 4 pin USB Type A u00a6 Antenna: SMA u00a6 Console: 1 x RS-232 - 9 pin D-Sub (DB-9) u00a6 Peripheral: 1 x GPIO u00a6 Antenna: R-SMA
Expansion Slots 2 SIM
Antenna External detachable
Voltage Required DC 9 - 36 V
Power Consumption Operational 24 Watt
Cables Included 1 x GPIO / power cable - 10 ft
Service & Support Limited warranty - lifetime u00a6 Technical support - phone consulting - 3 years u00a6 Product info support - web support - 3 years
Min Operating Temperature -22 u00b0F
Max Operating Temperature 158 u00b0F
Humidity Range Operating 5 - 95% (non-condensing)
