Eaton eATS30 Remote Power Management Switch2 x Network (RJ-45) Port EATS30P
Eaton eATS30 Remote Power Management Switch2 x Network (RJ-45) Port EATS30P

Eaton eATS30 Remote Power Management Switch2 x Network (RJ-45) Port EATS30P

$1,664.40

Eaton eATS30 Remote Power Management Switch
Provides power redundancy to equipment with 1 or 2 power supplies.
Automatically transfers power from the primary source to a secondary source if there is an issue with the primary.
Power is transferred back to the primary source when it is automatically restored.
Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD.
Offers remote monitoring and email alerts with included network card.

SKU: EATS30P Categories: , , Brand: Eaton

Description

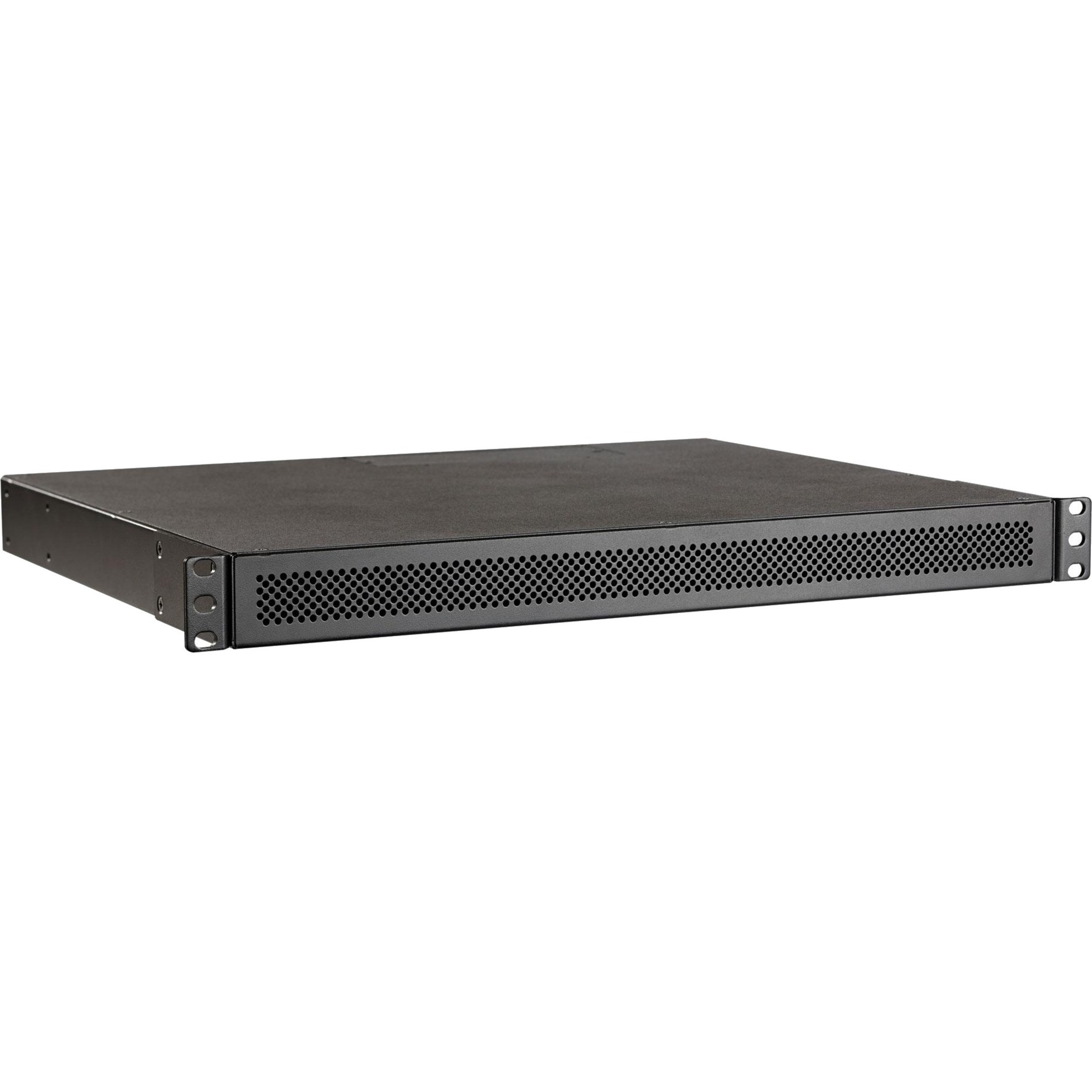

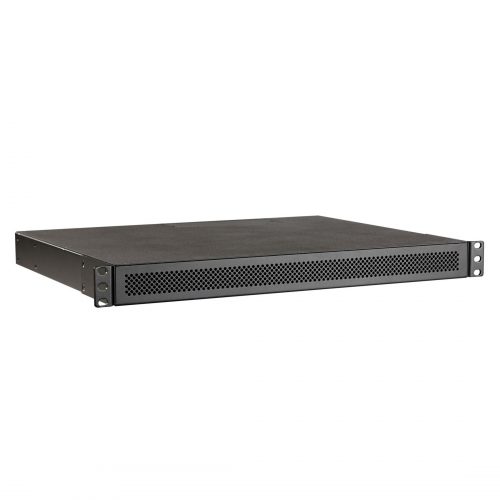

Eaton eATS30 Remote Power Management Switch
The Eaton EATS30 Monitored rack automatic transfer switch operates at 200-240 volt single-phase 24 amps. The dual inputs are through two 10-foot cords with L6-30P plugs and output is through a single L6-30R receptacle. The transfer switch features fast 10 ms transfer between sources, supports out-of-phase (non-synchronous) power sources and has remote monitoring through the included network card using SNMP or a web browser.

  • Dual input rack automatic transfer switch with intelligent control and monitoring
  • Fast transfer time of 10ms to ensure equipment uptime and reliability
  • Intelligent control circuitry supports out-of-phase power sources (non-synchronized) for reliablity
  • Network connectivity supports voltage, current and transfer monitoring over SNMP or using a standard web browser
  • Supports high power devices or allows for connection of a rack power distribution unit to support multiple receptacles
  • Low profile, 1U rackmount design

Additional information

Weight 32 lbs
Dimensions 13.80 × 17.30 × 1.70 in
