Eaton ePDU G3 Managed 38U-C IN: L21-20P 16A 3P OUT: 21xC13:3xC19SwitchedNEMA L21-20P3 x IEC 60320 C19, 21 x IEC 60320 C13120 V AC,… EMA340-10

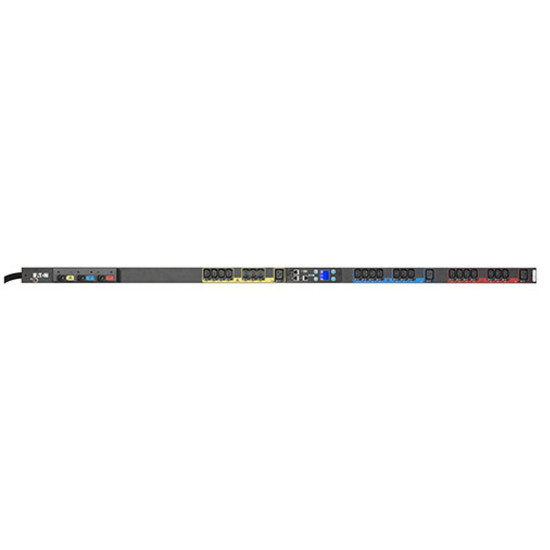

Eaton ePDU G3 Managed 38U-C IN: L21-20P 16A 3P OUT: 21xC13:3xC19
PDU allows power to be more efficiently distributed and controlled.
With a built-in digital current meter avoid potential overloads via switched PDUs.
Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control.
Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis.
Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers.
Manages entire environment remotely over the network from a single interface.
ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Cisco EnergyWise Certified- Eaton’s new ePDUs are Cisco EnergyWise Certified.

SKU: EMA340-10 Categories: , Brand: Eaton


Eaton ePDU G3 Managed 38U-C IN: L21-20P 16A 3P OUT: 21xC13:3xC19
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.

  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables

Additional information

Weight 24.8 lbs
Dimensions 2.09 × 2.05 × 66.50 in
Package Contents ePDU Managed EMA340-10 24-Outlets PDU, ePDU G3 Installation Spare Pack , ePDU G3 Network Spare Part Pack,
Product Type PDU
Input Voltage 120 V AC, 230 V AC
Manufacturer Part Number EMA340-10
Manufacturer Website Address
Output Voltage 230 V AC
Input Current 16 A
Manufacturer Eaton Corporation
Product Model EMA340-10
Product Name ePDU Managed EMA340-10 24-Outlets PDU
Mount Type Rack-mountable
Product Line ePDU
Product Series Managed
Rack Height 38U
Brand Name Eaton
Plug/Connector Type NEMA L21-20P
Input Voltage Range 120 V AC - 230 V AC
Country of Origin United States
Receptacle Type IEC 60320 C19, IEC 60320 C13
Network (RJ-45) Yes
PDU Type Switched
Mounting Orientation Vertical
Power Rating (Watt) 5760 W
Receptacle Detail 3 x IEC 60320 C19, 21 x IEC 60320 C13
Plug/Connector Detail 1 x NEMA L21-20P
GTIN 0786685954516
UPC 786685954516
EAN 0786685954516
UNSPSC 39121017
