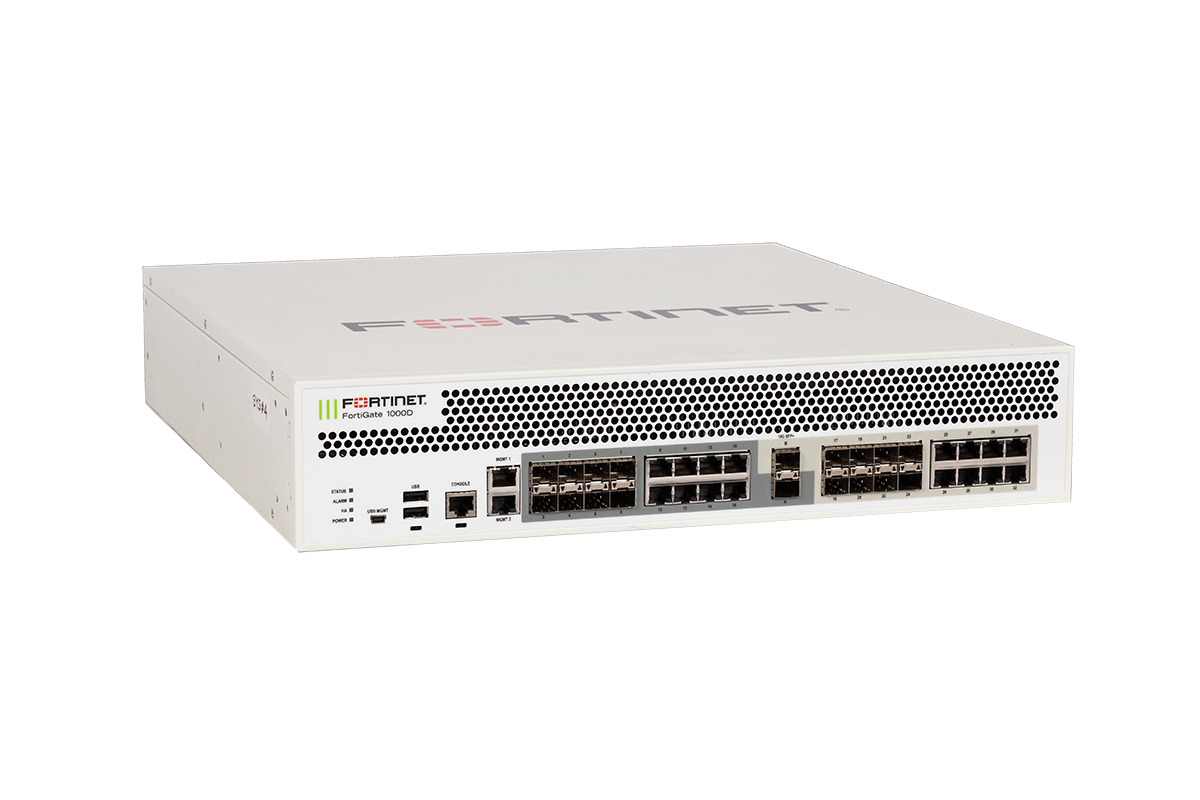

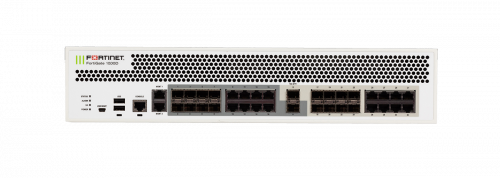

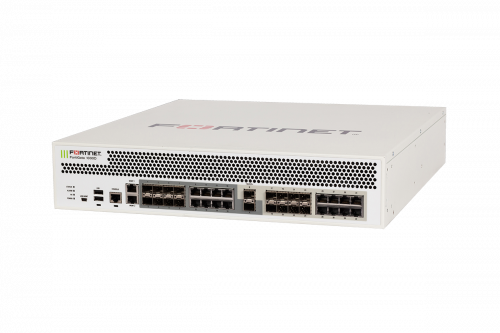

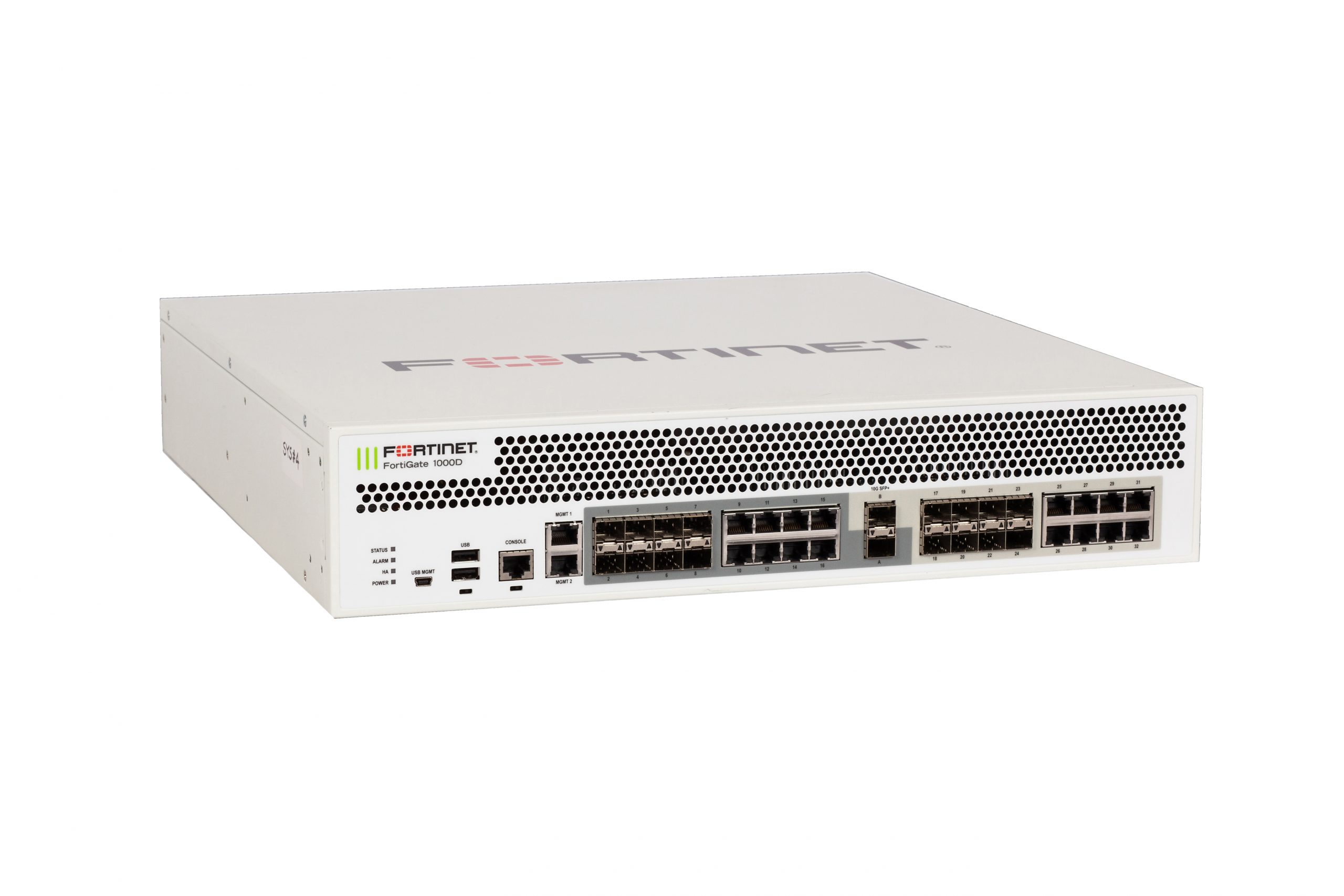

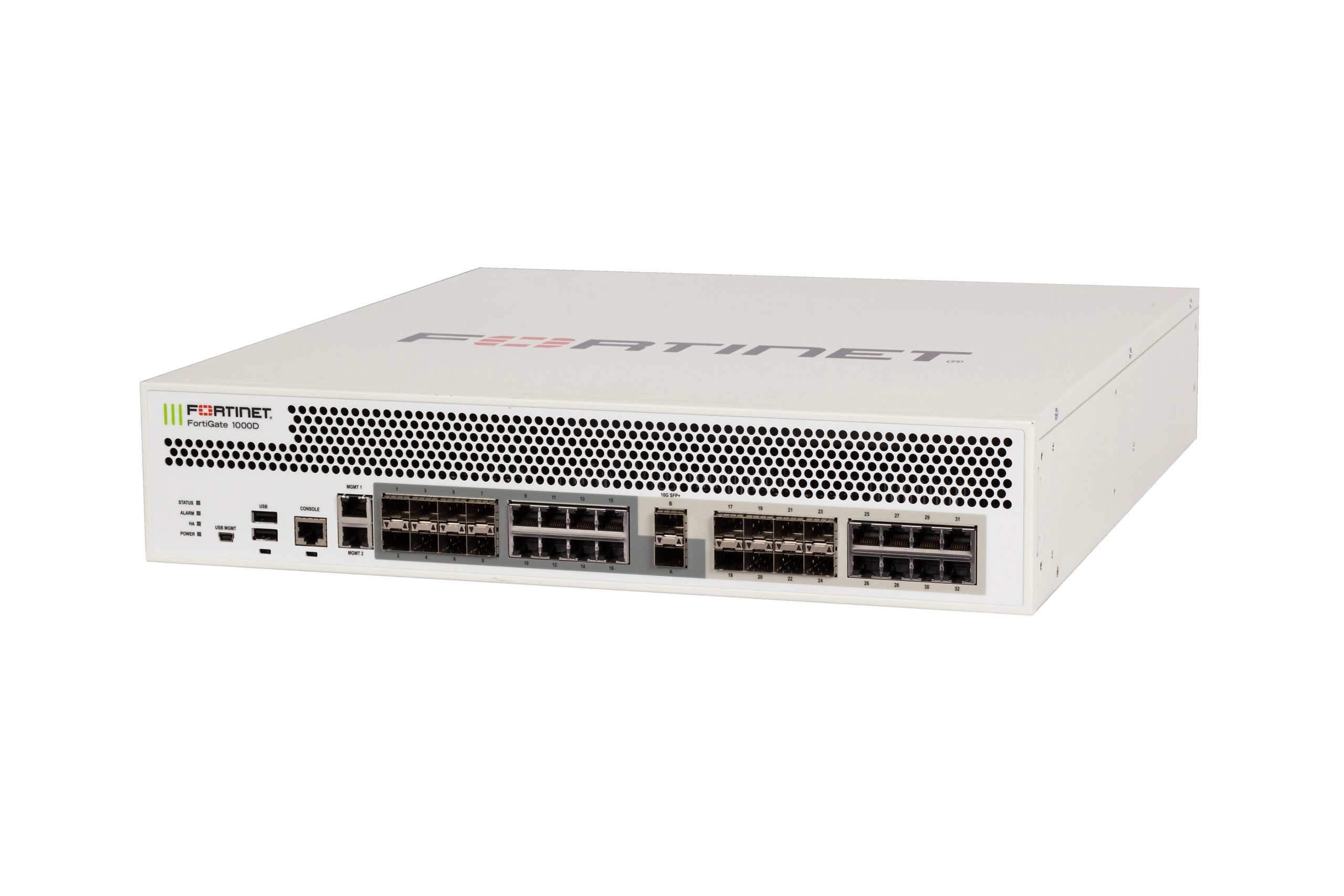

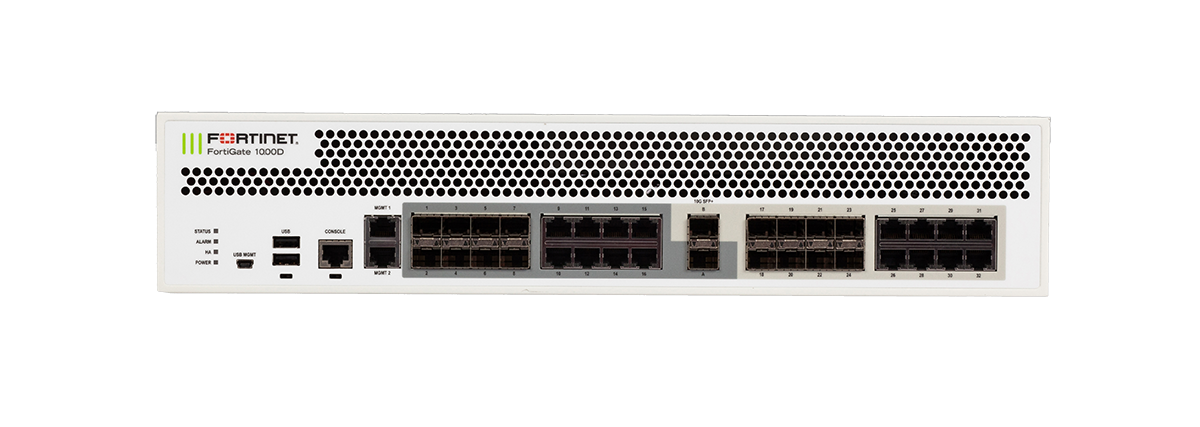

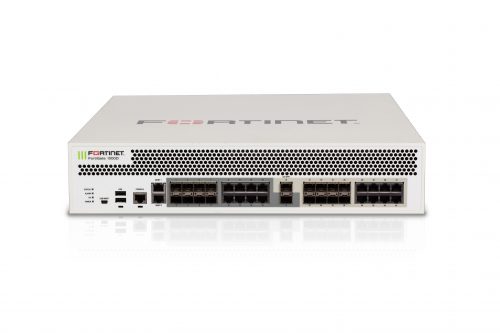

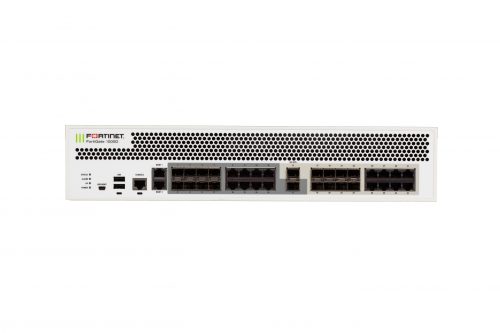

Fortinet FortiGate-1000D / FG-1000D NGFW UTM Firewall Security Appliance

Fortinet FortiGate 1000D – Security appliance – 10 GigE

SKU: FG-1000D~PVAR Categories: , Brand: Fortinet


Enterprises require a high-speed, high-capacity firewall to stay ahead of ever-increasing network performance requirements as well as continued evolution of the threat landscape, at datacenter and campus locations.

Eliminate Security Bottlenecks
With 52 Gbps of firewall throughput and low latency, the FortiGate 1000D represents an excellent entry model for small data centers and delivers a high performance, high capacity data center firewall. IPv6 parity, 10 GE ports and dramatic increases in VPN performance enable you to keep pace with your evolving network.

Deeper Visibility
At the same time, 8 Gbps of next generation threat prevention performance allows you to run top rated intrusion prevention, application control and antimalware capabilities for deeper inspection of content, applications, user and device activity. Rich console views and reports together with a flexible policy engine provide the visibility and control to empower employees yet secure your enterprise.

Breakthrough Performance
This breakthrough performance — including 10x data center and 5x next generation performance — is made possible by custom hardware, including the latest FortiASIC™ NP6 and CP8 processors, as well as the consolidated security features of the FortiOS™ 5 network security platform.

Key Features & Benefits

  • Superior firewall throughput, ultralow latency – 10x data center firewall performance eliminates performance bottlenecks
  • Impressive throughput – 5x next generation performance enables multi-function inspection on one appliance
  • Custom FortiASIC NP6 and CP8 processors – The latest in purpose-built processors enable best-in-class performance and superior cost per gigabit protected
  • High speed, high density ports – 2x 10 GE and 32x GE ports support evolving network requirements and avoid security bottlenecks
  • Top rated security technologies – Increases protection from advanced threats

Additional information

Weight 135 lbs
Dimensions N/A

No License, UTP, 360 Protection, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Product Description Fortinet FortiGate 1000D - security appliance
Device Type Security appliance
Form Factor External
Included Accessories 6 rubber feet, mounting brackets
Power AC 120/230 V (50/60 Hz)
Power Redundancy Yes
Connectivity Technology Wired
Network / Transport Protocol IPSec
Remote Management Protocol CLI
Status Indicators Port transmission speed, power, status, alarm, link/activity
Interfaces 16 x 1000Base-T - RJ-45 u00a6 16 x - SFP (mini-GBIC) u00a6 2 x - SFP+ u00a6 2 x management (USB) - Type A u00a6 1 x mini-USB - Type B u00a6 2 x management - RJ-45 u00a6 1 x console - RJ-45
Cables Included 1 x network cable u00a6 1 x console cable u00a6 1 x USB cable
Compliant Standards UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Intrusion Detection, ICSA Antivirus, CB, FCC Part 15 A
Power Device Internal power supply
Installed Qty 2
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Software Included Drivers & Utilities
Min Operating Temperature 32 u00b0F
Max Operating Temperature 104 u00b0F
Humidity Range Operating 20 - 90% (non-condensing)
