Fortinet FortiGate 6300F Network Security/Firewall Appliance10GBase-X, 100GBase-X, 40GBase-X100 Gigabit EthernetAES (128-bit), AES (25… FG-6300F

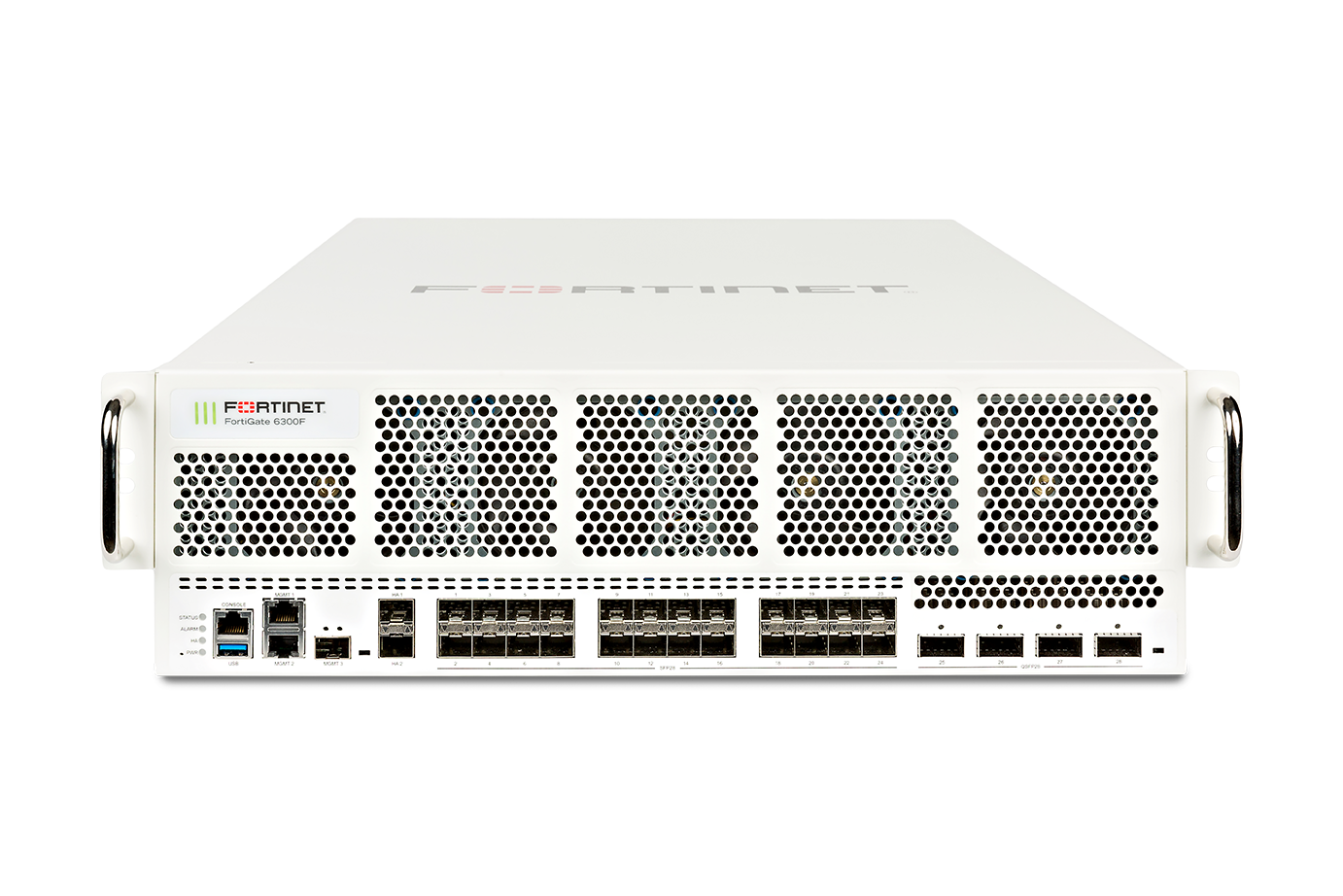

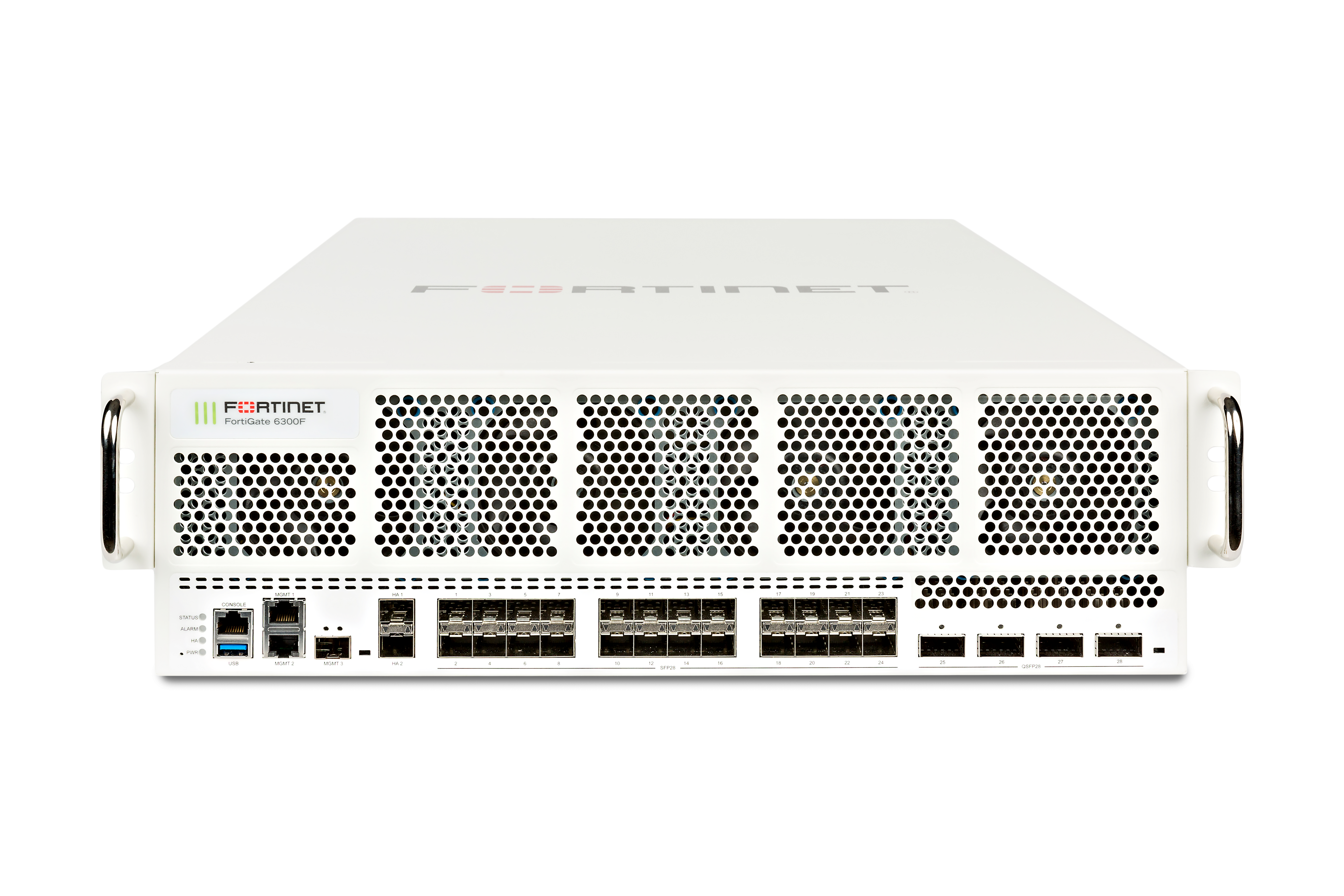

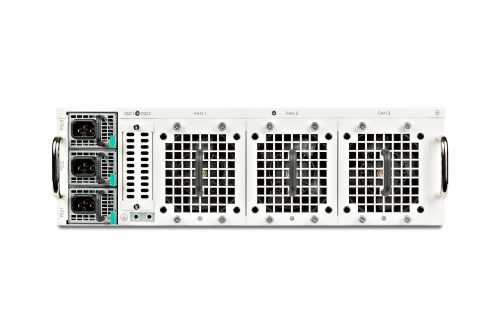

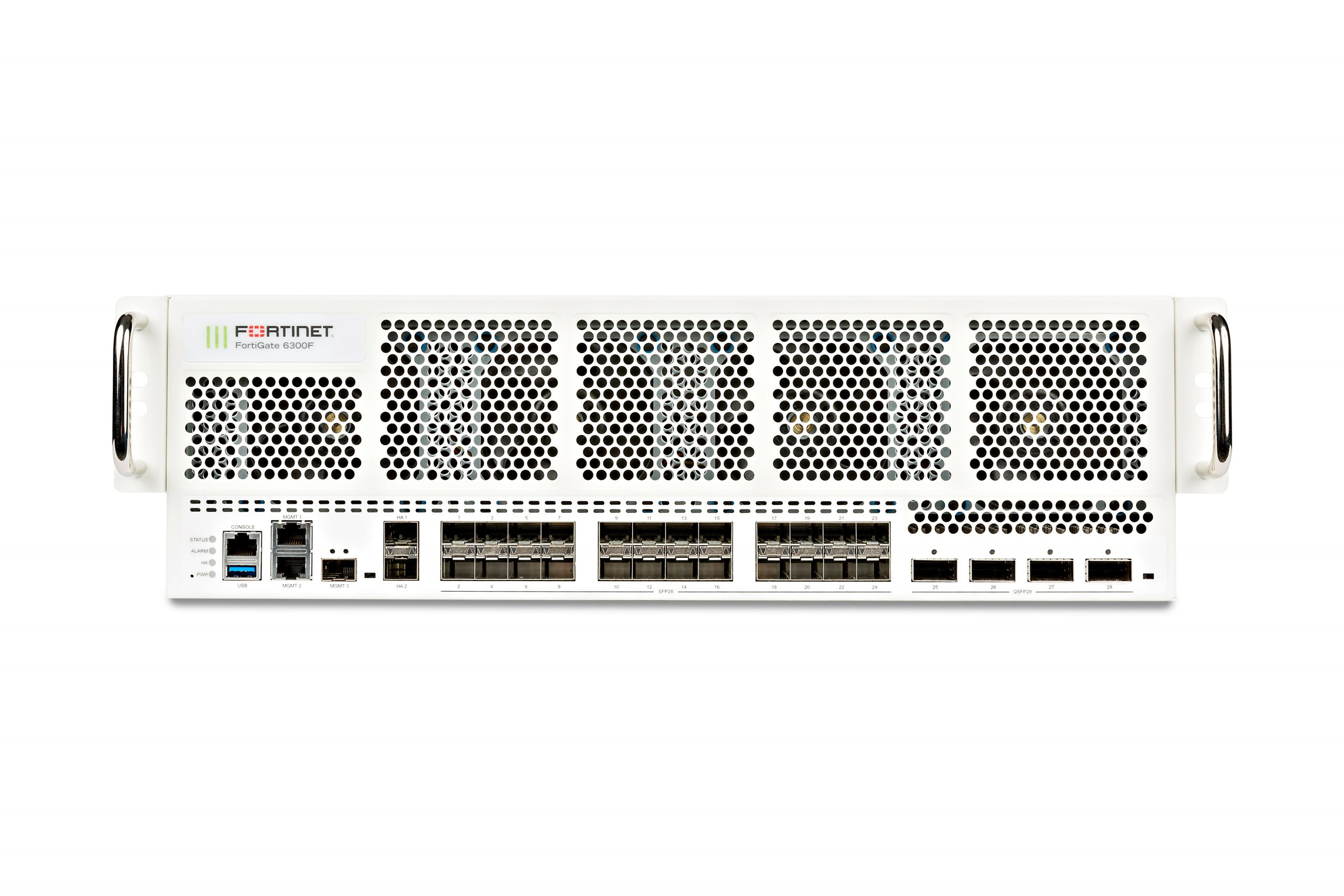

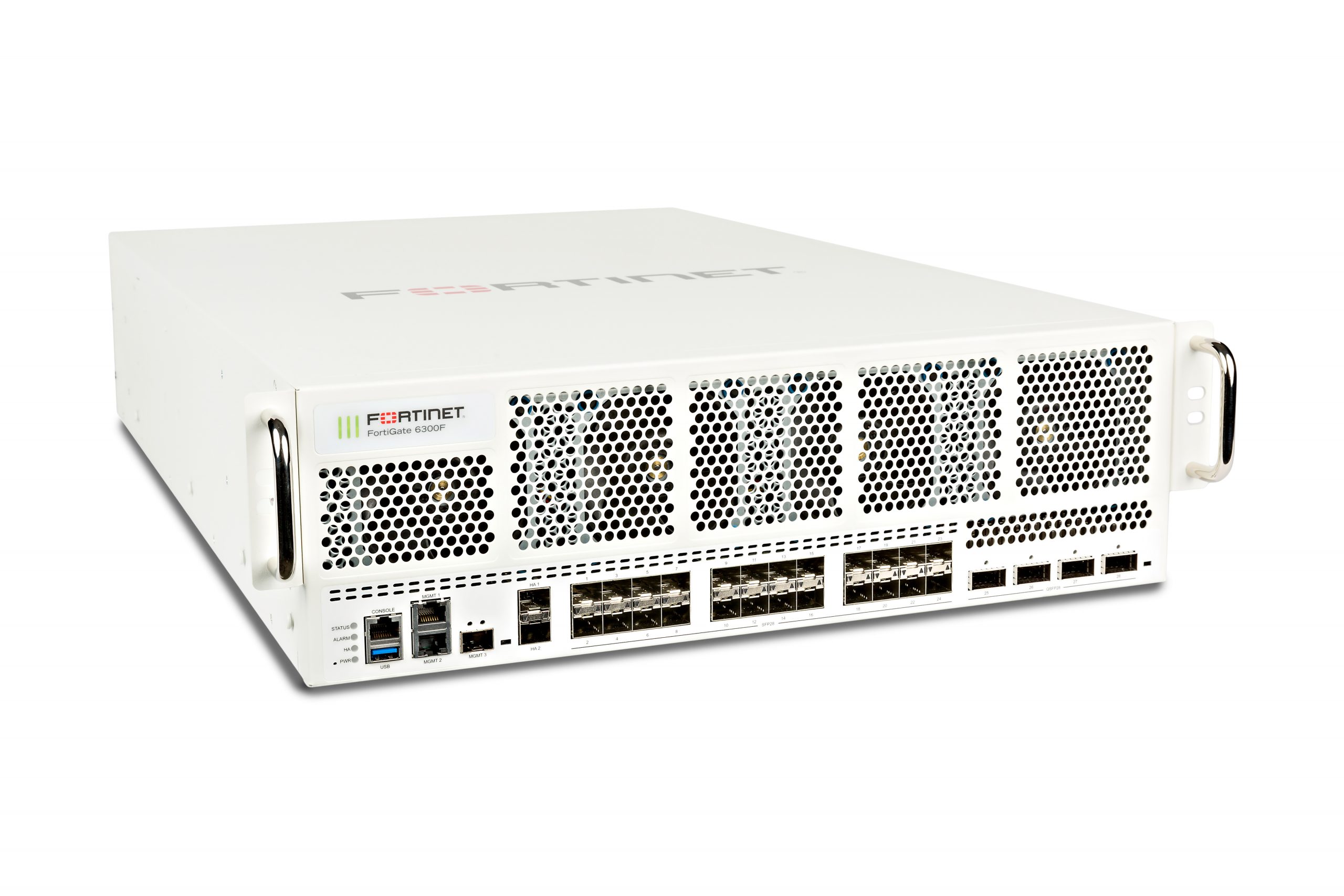

Fortinet FortiGate 6300F Network Security/Firewall Appliance

SKU: FG-6300F~PVAR Categories: , Brand: Fortinet


Fortinet FortiGate 6300F Network Security/Firewall Appliance
The FortiGate 6000F series delivers high performance threat protection for large enterprises and service providers, with the flexibility to be deployed at the Internet or cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, industry-leading security efficacy and high throughput of the 6000F series keeps your network connected and secure.


  • Protects against known exploits, malware and malicious URLs using continuous threat intelligence provided by FortiGuard Labs security services
  • Protects against unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks


  • Next Generation of Fortinet Distribution Processors (DP3) introduces a revolutionary load balancing architecture providing both resiliency and ultra high connection rate support
  • Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides industry-leading performance and protection for SSL encrypted traffic


  • Independently tested and validated best security effectiveness and performance


  • Delivers extensive network interface flexibility with the first 1/10/25 G interface support in the industry
  • With uplinks in typical data centers moving to 100 GE, the combination of 1/10/25 and 40/100 GE interfaces provides superior interface flexibility and TCO for customers


  • Single Pane of Glass with Network Operations Center (NOC) view provides 360° visibility to identify issues quickly and intuitively

Security Fabric

  • Enables Fortinet and Fabric-ready partners’ products to collaboratively integrate and provide end-to-end security across the entire attack surface

Additional information

Weight 97.68 lbs
Dimensions 26.18 × 17.20 × 5.20 in

No License, UTP, 360 Protection, Enterprise


Hardware Only, 1 Year, 3 Years, 5 Years

Package Contents FortiGate 6300F Network Security/Firewall Appliance, 2 x SFP+ Transceivers,
Product Type Network Security/Firewall Appliance
Firewall Protection Supported Threat Protection, Malware Protection, Advanced Threat Intelligence, Intrusion Prevention, Application Control, Secure IPsec VPN Connectivity, Firewall Authentication, Zero Day Event, SSL Offloading
Manufacturer Part Number FG-6300F
Manufacturer Website Address
Form Factor Rack-mountable
Manufacturer Fortinet, Inc
Product Model 6300F
Product Name FortiGate 6300F Network Security/Firewall Appliance
Product Line FortiGate
Product Series 6000F
Brand Name Fortinet
Expansion Slot Type SFP+, SFP28, QSFP28
Manageable Yes
Network Standard 10GBase-X, 100GBase-X, 40GBase-X
Compatible Rack Unit 3U
Encryption Standard AES (128-bit), AES (256-bit), SHA-256
Ethernet Technology 100 Gigabit Ethernet
Number of Total Expansion Slots 31
Number of SFP+ Slots 3
GTIN 0842382141748
UPC 842382141748
EAN 0842382141748
UNSPSC 43222501
