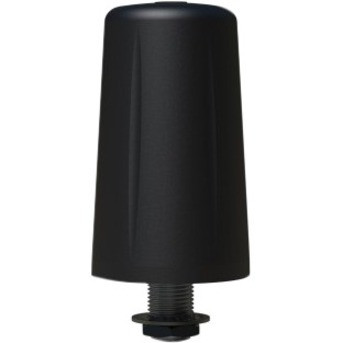

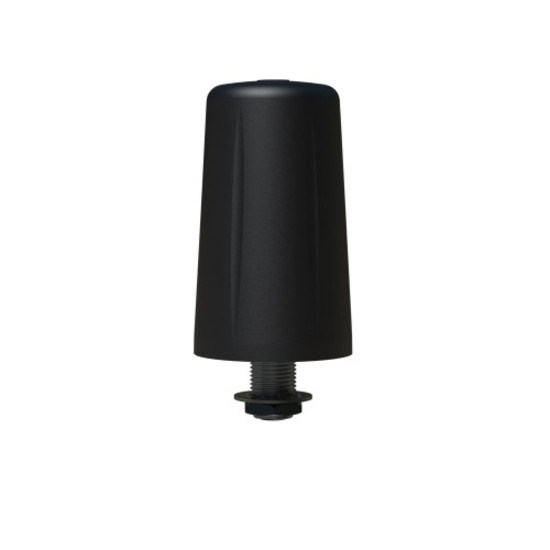

Panorama Antennas LPB-7-27 | Robust Low Profile 2G/3G/4G/5G Antenna
Eases up the installation procedure thanks to its 360-degree horizontal pattern.
Panel-mountable design for mounting convenience.
Provides gain of up to 5 dBi.
Widely used in cellular network.

SKU: LPB-7-27-2SP Category: Brand: Panorama

Description

Panorama Antennas LPB-7-27 | Robust Low Profile 2G/3G/4G/5G Antenna

The Panorama LPB is an extremely robust low profile antenna for LTE, public safety M2M and IOT applications. The product is compatible with the full range of Vodafone MachineLink devices for SiSo operation or multiple units can be used for cellular diversity.

  • Robust low profile design
  • Excellent Bandwidth
  • Supports 2G/3G/4G, 3.8GHz 5G, 700 & 800MHz & 868 & 915MHz
  • Suitable for MachineLink 4G, 4G Lite and USB Connect

At only 82mm (3.22″) high and protected by a robust high impact radome the antenna is almost impervious to daily wear, tear and impact. The LPB offers excellent performance across a wide bandwith. Mounted on a 400 x 400mm groundplane the LPB covers public safety / LTE frequencies across 700 and 800MHz as well as all global cellular frequencies from 698-960 MHz and 1710-3800MHz making it an extremely versatile product.

Supplied with a convenient adhesive pad and a short pigtail for connection to a cable extension run the antenna is cost effective to install and adaptable to any install environment.

Additional information

Weight 0.5 lbs
Dimensions 11.50 × 3.25 × 1.50 in
