Sale!
Panorama Antennas SHKG Antenna1562 MHz to 1612 MHz, 2.4 GHz to 5.8 GHz, 2300 MHz to 2500 MHz, 4900 MHz to 6000 MHz, 698 MHz to 960 M… SHKG-7-27-T24-58
Panorama Antennas SHKG Antenna1562 MHz to 1612 MHz, 2.4 GHz to 5.8 GHz, 2300 MHz to 2500 MHz, 4900 MHz to 6000 MHz, 698 MHz to 960 M… SHKG-7-27-T24-58

Panorama Antennas SHKG Antenna1562 MHz to 1612 MHz, 2.4 GHz to 5.8 GHz, 2300 MHz to 2500 MHz, 4900 MHz to 6000 MHz, 698 MHz to 960 M… SHKG-7-27-T24-58

$225.18

Panorama Antennas SHKG Antenna
Provides ease of management and installation thanks to its omni-direction feature.
Designed to be light in weight and easy to install.
Operates at 26 dB gain.
Dramatically enhance the performance of gps with this antenna.

SKU: SHKG-7-27-T24-58 Category: Brand: Panorama

Description

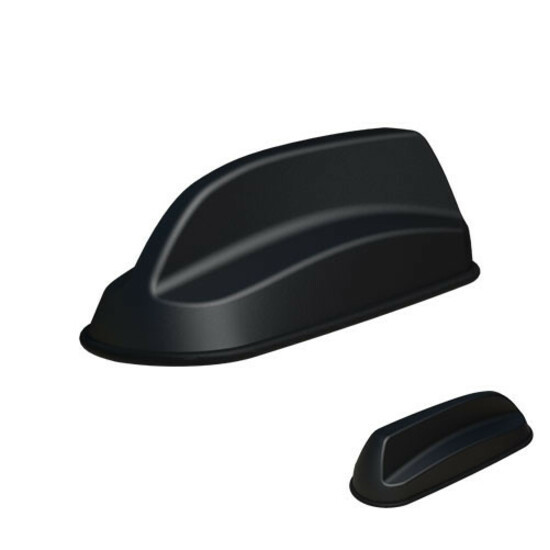

Panorama Antennas SHKG Antenna

The SHKG has a compact OEM style sharkfin housing that contains 2×2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In order to maximise functionality versions of the SHK[G] are available that add either 2×2 MiMo or 3×3 MiMo antenna functionality for 2.4/5.8GHz WiFi.

  • OEM sharkfin styling
  • MiMo 4G/3G/2GHz and GNSS in one housing
  • Optional 2×2 or 3×3 WiFi 2.4/5GHz

The antenna does not require a metallic ground plane and maintains a high level of performance even when mounted on a non-metallic surface. This high-performance antenna offers multiple antenna functions while remaining discreet and is suitable for (overt/covert) applications where a cost-effective effective, efficient and robust antenna is essential.

Additional information

Weight 0.57 lbs
Dimensions 7.40 × 2.40 × 1.97 in
Application/Usage GPS, Cellular Network, Wireless Data Network
Product Type Antenna
Manufacturer Part Number SHKG-7-27-T24-58
Manufacturer Website Address http://www.panorama-antennas.com
Connector Type FME, SMA
Form Factor Panel
Manufacturer Panorama Antennas Ltd
Product Model SHKG
Product Name SHKG Antenna
Brand Name Panorama Antennas
Antenna Gain 26 dB
Directivity Omni-directional
Product Color Black
Operating Frequency Range 1562 MHz to 1612 MHz, 2.4 GHz to 5.8 GHz, 2300 MHz to 2500 MHz, 4900 MHz to 6000 MHz, 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz
UNSPSC 43221706
