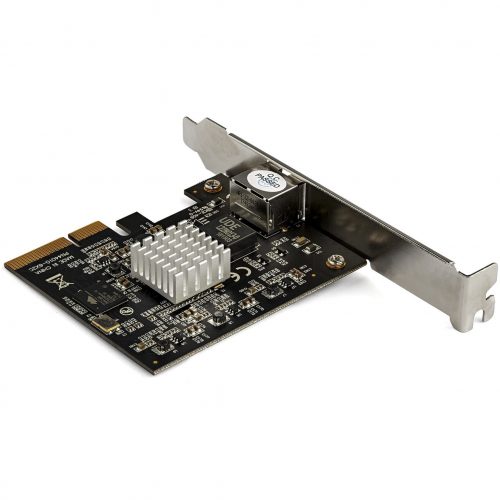

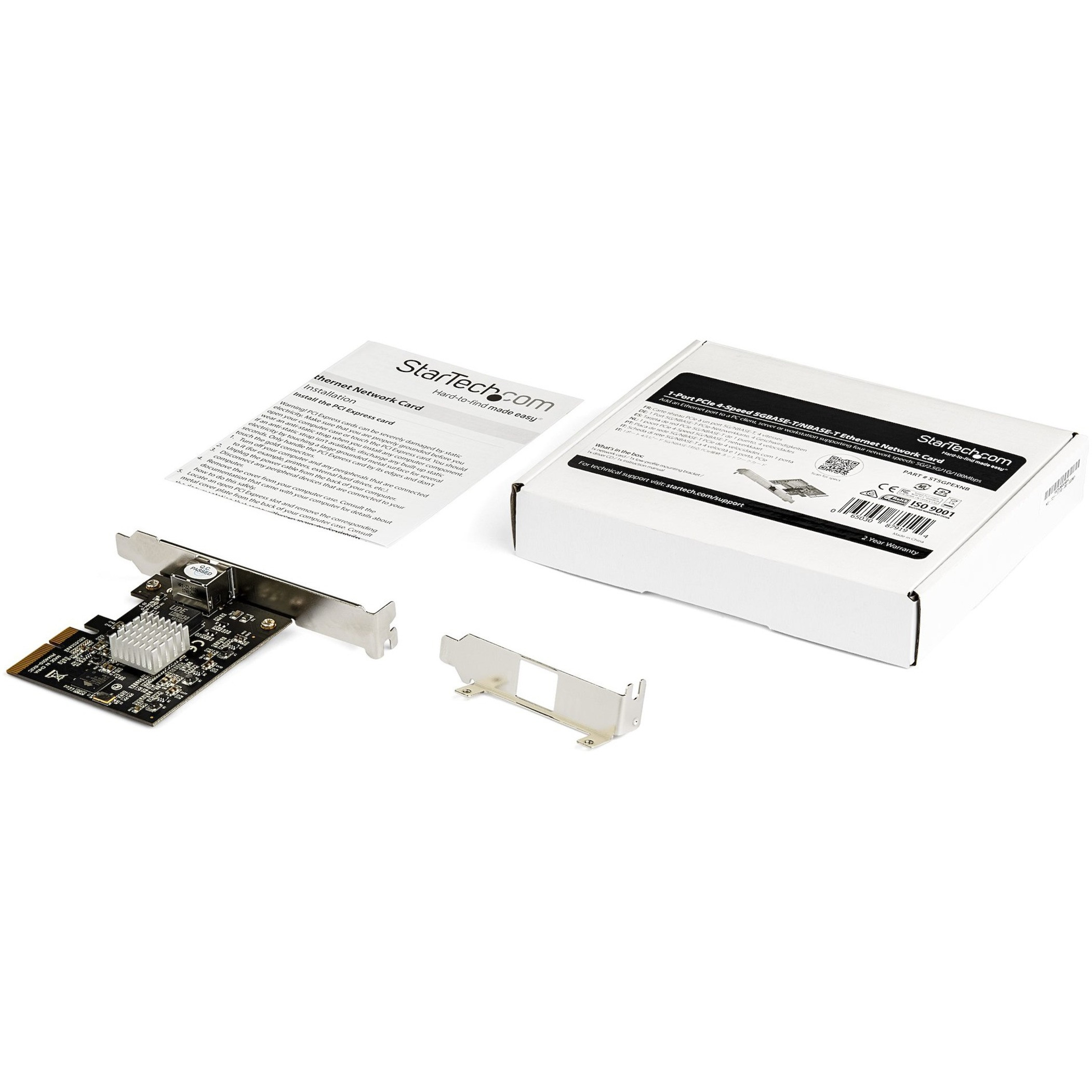

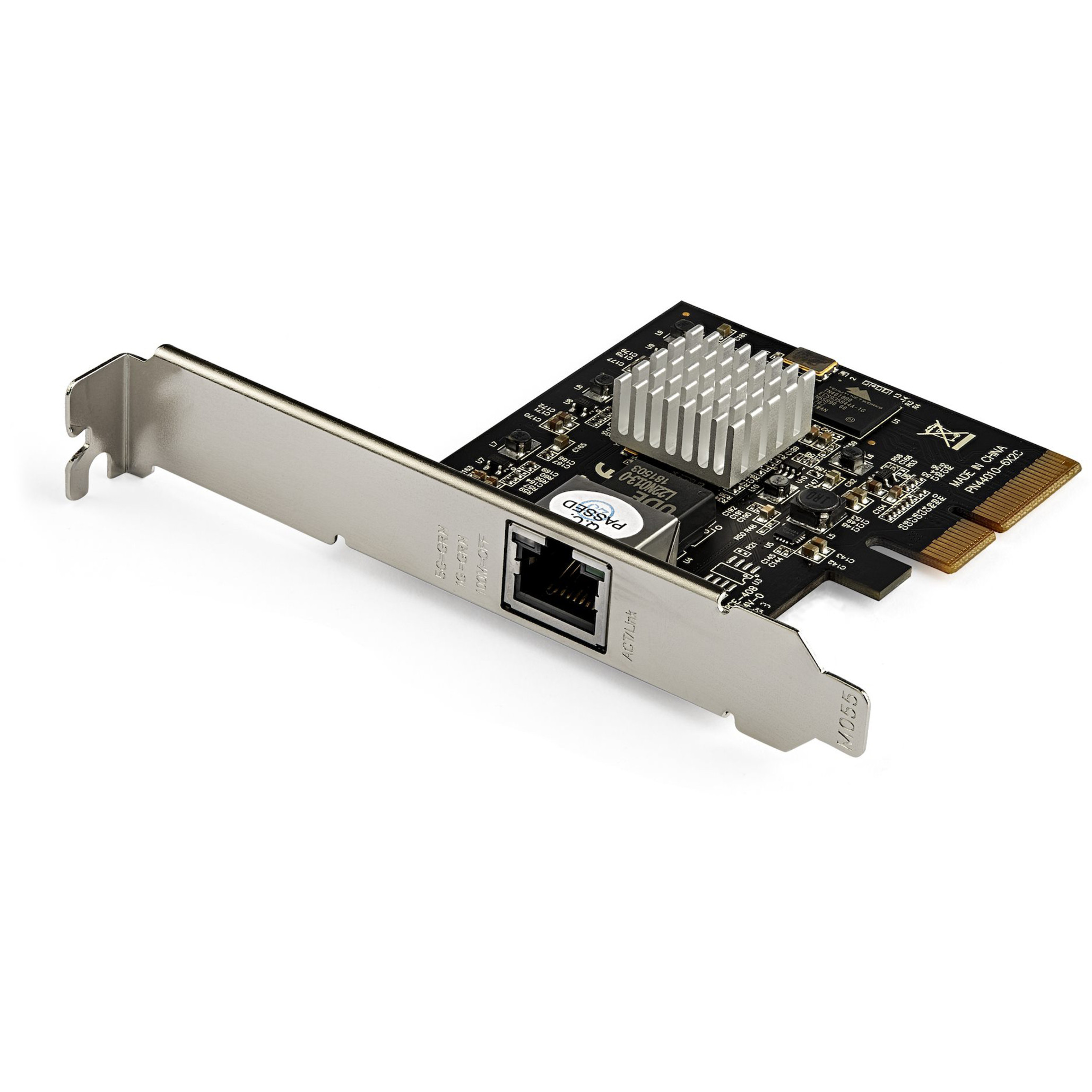

Startech .com 5G PCIe Network Adapter CardNBASE-T PCI Express Network Interface Adapter 5GbE Multi Gigabit Ethernet LAN 4 Speed NICPCIe N… ST5GPEXNB

Please request a quote 5G PCIe Network Adapter Card – NBASE-T PCI Express Network Interface Adapter 5GbE Multi Gigabit Ethernet LAN 4 Speed NIC
This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation.
This 2000MB/s bandwidth adapter is ideal for PCs with PCI Express x4 slots, ensuring top level network connectivity for your desktops.
Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters.
Connect to a wired network with this single port network adapter for a hassle-free and quick response.
1 PORT 5GbE NETWORK CARD: Single port 5Gbps PCIe Network Adapter Card provides 5x speed of standard Gigabit Ethernet to desktop/server leveraging existing infrastructure of Cat5e, CAT6, or CAT6a cable.
TECH SPECS: 5 Gbps Multi-Gigabit | 1x RJ45 | 5 / 2.5 / 1 Gbps | Tehuti – TN4010 | NBASE-T & 5GBASE-T | PCIe 2.0 x4 | 9K Jumbo Frame | VLAN | Link Aggregation | IEEE 802.3az | Full & Low Profile.
WIDE HYPERVISOR & OS COMPATIBILITY: Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); MacOS (10.12 to 10.14); VMWare ESXi 5.0, 5.1+.
MULTI-GIGABIT CONNECTIVITY: 4-Speed Workstation NIC auto negotiates based on network configuration: 5G, 2.5G, 1G, 100Mbps; supports auto-MDIX, Wake-on-LAN (WoL), link aggregation, & VLAN tagging.
THE STARTECH.COM ADVANTAGE: offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America on this PCI Express Network Interface Card.

SKU: ST5GPEXNB Categories: , Brand: Startech

Description 5G PCIe Network Adapter Card – NBASE-T PCI Express Network Interface Adapter 5GbE Multi Gigabit Ethernet LAN 4 Speed NIC

This 4-speed NBASE-T™ PCIe network card offers an inexpensive network upgrade solution, providing access to your network at multiple speeds up to5G, using your existing Cat5e copper cabling.

Cost-effective Multi-Gigabit Ethernet

Fully compliant with 2.5GBASE-T, 5GBASE-T, and NBASE-T (Draft IEEE802.3bz) specifications, the PCIe NIC offers a cost-effective and versatile networking solution. It provides additional bandwidth at multiple speeds, to meet your network needs without the expense of overhauling your existing cable infrastructure.

Advanced technology for optimal performance

The featured NBASE-T technology and multi-gigabit speeds support Cisco® campus switches, including Catalyst 4500E, 3850 and 3560-CX. The Marvell® 88E2010 chipset is optimized for achieving 2.5 and 5Grates over your existing Cat5e copper cable setup withoutupgrading to the more expensive Cat6A cabling required for 10Gbps speeds.

Operating efficiency and flexible use

The Tehuti Networks™ TN4010 chipset, compliant with IEEE 802.3az, ensures peak operating efficiency withreduced power consumption. The network card also supports 9K jumbo frames, 802.1q VLAN tagging and is backward compatible with 1000BASE-T. For additional versatility, the controller card is equipped with a standard-profile bracket and includes a low-profile bracket for installation in small form-factor computers.

The ST5GPEXNB is backed by a 2-year warranty.

Additional information

Weight 0.31 lbs
Dimensions 3.10 × 4.70 × 0.80 in
