Startech .com Industrial 5 Port Gigabit PoE Switch 30WPower Over Ethernet SwitchGbE POE+ Network SwitchUnmanagedIP-305 Port Gig… IESC1G50UP

$246.04 Industrial 5 Port Gigabit PoE Switch 30W – Power Over Ethernet Switch – GbE POE+ Network Switch – Unmanaged – IP-30
Gigabit Ethernet port for ultra-fast network speeds.
With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized.
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree.
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed.
PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available.
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports.
POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6.
FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included).
ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount.
TECH SPECS: 5 Port GbE Switch | 4 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Redundant Power Input | Terminal Block Power | Total power budget: 120W.
STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years | This Gigabit PoE switch is backed for 2-years by, including free 24/5 North America based multi-lingual tech support.

SKU: IESC1G50UP Categories: , Brand: Startech

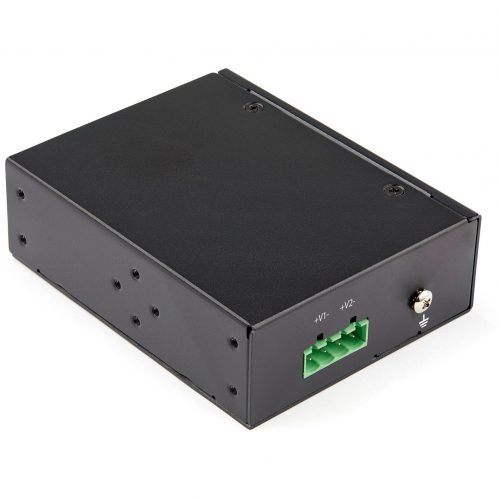

Description Industrial 5 Port Gigabit PoE Switch 30W – Power Over Ethernet Switch – GbE POE+ Network Switch – Unmanaged – IP-30

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

Additional information

Weight 0.33 lbs
Dimensions 213.00 × 3.20 × 1.30 in
