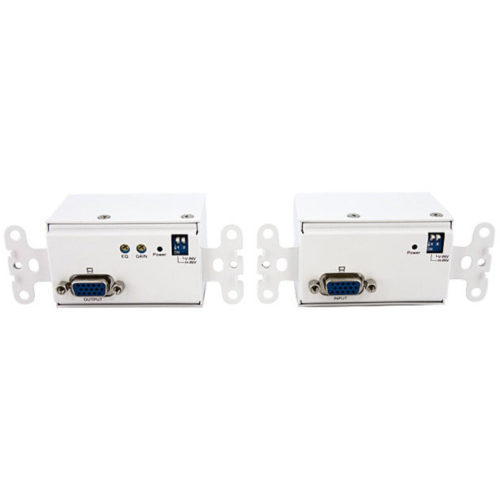

Startech .com VGA Wall Plate Video Extender Transmitter and Receiver over Cat51 x 1UXGA STUTPWALL

$223.24 VGA Wall Plate Video Extender Transmitter and Receiver over Cat5

SKU: STUTPWALL Categories: , Brand: Startech

Description VGA Wall Plate Video Extender Transmitter and Receiver over Cat5

The STUTPWALL VGA Wall Plate Video Extender Transmitter and Receiver over Cat 5 kit includes both VGA transmitter and receiver units, allowing you to extend a VGA video source to a remote VGA monitor up to 300 meters (950 feet) away. The transmitter and receiver wall plates can be placed in a wall or ceiling gang for a cleaner, more professional VGA installation.

The VGA wall plate kit is installed simply by mounting the transmitter unit near the VGA source, and the receiver unit near the remote monitor/projector. The units are then linked using standard Cat5 or better cabling, providing a high-quality, concealed setup.

Each unit is powered by a 12V DC terminal block connector behind the unit that offers a more secure and economical installation. Extension over Ethernet cabling offers a flexible and cost-effective solution that enables you to use existing infrastructure cabling.

Unlike some video extension systems, our VGA extender wall plates also allow you to make use of an existing networking cable (Cat5, Cat6) infrastructure, eliminating the need to re-run cable in the event of an upgrade from VGA to another video standard, by simply swapping out the wall plates.

Backed by a 2-year warranty and free lifetime technical support.

Additional information

Weight 3.5 lbs
Dimensions 5.90 × 11.70 × 2.70 in
Package Contents VGA Wall Plate Video Console/Extender Kit, Power Adapter
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number STUTPWALL
Manufacturer Website Address
Limited Warranty 2 Year
Connectivity Technology Wired
Product Name VGA Wall Plate Video Console/Extender Kit
Brand Name
Maximum Video Resolution 1920 x 1200
Twisted Pair Cable Standard Category 6
Maximum Operating Distance 984.25 ft
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Media Type Supported Twisted Pair
Number of Output Devices Supported 1
Number of Input Devices Supported 1
Transmitter Height 1.50"
Transmitter Width 4.13"
Transmitter Depth 1.65"
Transmitter Weight (Approximate) 4.80 oz
Product Color White
Additional Information Wall plate design allows mounting into either walls or ceilings for a concealed, professional and neat installation., Cat 5 extension gives integrators and installers the choice of using existing in-wall cabling, bulk rolls for custom length on field termination or using set lengths for quicker installs., Transmitter and Receiver wall plates can be purchased separately and are fully compatible with our UTPE series used in current installations offering flexibility.
Certifications & Standards CE, FCC
Product Material Steel
GTIN 0065030835022
UPC 065030835022
EAN 0065030835022
UNSPSC 45111815
