Tripp Lite 1ft HDMI Active Signal Extender Equalizer Cable HDMI 60Hz M/F 1′ video/audio extender HDMI TAA Compliant B123-001-60


Please request a quote

Tripp Lite 1ft HDMI Active Signal Extender Equalizer Cable HDMI 60Hz M/F 1′ – Video/audio extender – HDMI – up to 125 ft – TAA Compliant

SKU: B123-001-60 Categories: , Brand: Tripp Lite

Description

Description: 1FT CBL HDMI ACTIVE SIGNAL EXTD M/F TAA
Tripp Lite 1ft HDMI Active Signal Extender Equalizer Cable HDMI 60Hz M/F 1′ – Video/audio extender – HDMI – up to 125 ft – TAA Compliant

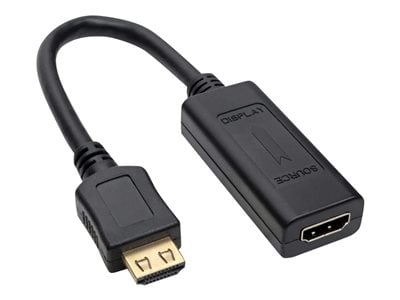

Tripp Lite’s B123-001-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz(or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft.(5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 38.1 m (125-ft.) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 60Hz(or 1920 x 1200) signal more than 22.86 m (75-ft.), use cable made with 24Awg wiring, such as the P568-100-HD.(Lengths over 30.5 m (100-ft.) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 15.24 m (50-ft.) A 3D signal can be extended up to 38.1 m (125-ft.) using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001-60, and the built-in cable between the adapter and the monitor/TV. Software or drivers are not required. HDCP compliant.

Key Selling Points
Extend a 1080p @ 60Hz(or 1920 x 1200) HDMI signal up to 125 ft. from the source
Use P568-Series HDMI cables in most applications
When extending a 1080p @ 60Hz(or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD.
Lengths over 100 ft. are available from Tripp Lite as a custom order)
24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
No external power required in most installations
HDCP compliant
No software or drivers required
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

Additional information

Weight 0.2 lbs
Dimensions 155 × 120 × 30 in
