Description
Description: 3PT MINI DP 1.2 TO DPT MULTI-STREAM HUB

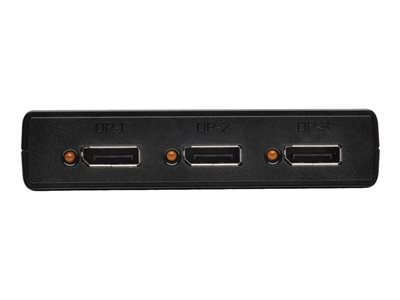

Tripp Lite 3 Port Mini DisplayPort 1.2 to Displayport Multi-Stream (MST) Hub 4K x 2K – Video/audio splitter – 3 x DisplayPort – desktop – TAA Compliant
The B155-003-DP-V2 3-Port Mini DisplayPort 1.2 to DisplayPort MST Hub 4K connects up to three DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across them, or combine all three as one large monitor in video wall mode.
The B155-003-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. In video wall mode, it supports expanded resolutions, such as 5760 x 1080 in a horizontal 1 x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration.
This Multi-Stream Transport (MST) hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-003-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Whats in the Box

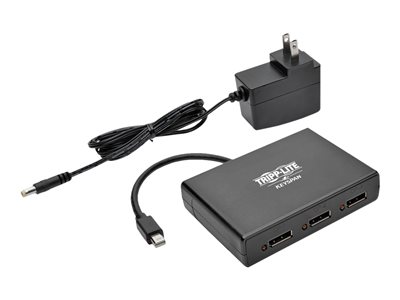

- Tripp Lite 3 Port Mini DisplayPort 1.2 to Displayport Multi-Stream (MST) Hub 4K x 2K
- External power adapter
Key Selling Points
Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
Displays same image on 3 monitors simultaneously in mirror mode
Extends desktop across 3 monitors in extended mode
Combines 3 monitors into one large monitor in video wall mode
Built-in 6 in. cable connects directly to Mini DisplayPort source
LEDs indicate when monitors are receiving a signal
Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Supports expanded resolutions in video wall mode, such as 5760 x 1080 in horizontal 1 x 3 configuration
Supports HDCP, EDID and DDC
Supports 48-bit Deep Color (16 bits per channel)
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
Works with all operating systems
Plug and play—no software or drivers required
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
