Tripp Lite Fiber Optic 10/100BaseT to 100BaseFX-SC Multimode Media Converter 2km 1310nm fiber media converter 10Mb LAN, 100Mb LAN N784-001-SC


Please request a quote

Tripp Lite Fiber Optic 10/100BaseT to 100BaseFX-SC Multimode Media Converter 2km 1310nm – Fiber media converter – 100Mb LAN – 10Base-T, 100Base-FX, 100Base-TX – RJ-45 / SC – up to 1.2 miles

SKU: N784-001-SC Categories: , Brand: Tripp Lite

Description

Description: FO SC MEDIA CONVRT 2KM
Tripp Lite Fiber Optic 10/100BaseT to 100BaseFX-SC Multimode Media Converter 2km 1310nm – Fiber media converter – 100Mb LAN – 10Base-T, 100Base-FX, 100Base-TX – RJ-45 / SC – up to 1.2 miles

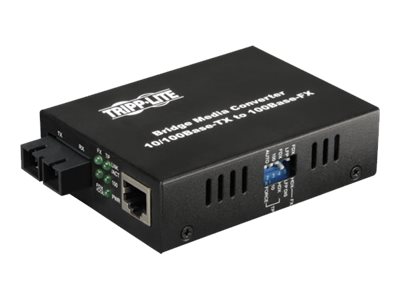

Tripp Lite’s N784-001-SC 10/100 Multimode Media Converter, is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection ( switch selectable ).

Whats in the Box

  • 10/100 Multimode Media Converter, UTP – SC
  • External Power Supply with NEMA 1-15P Plug ( Input: 100-240V )
  • Owner’s Manual

Key Selling Points
Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
Auto MDI/MDI-X
UTP port auto-senses network speed

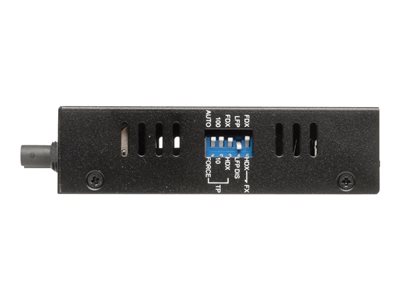

Switch selectable half or full duplex operation on the fiber port
Fiber lengths up to 2Km

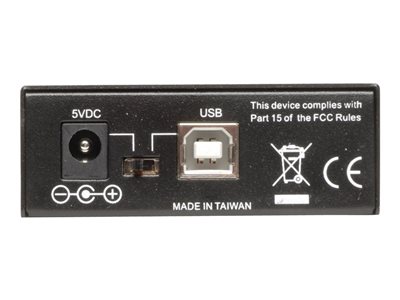

2 Power Choices – AC-DC Adapter or USB

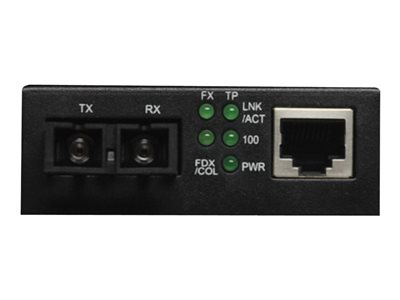

5 LED Function lights
Uses 62.5/125 or 50/125 Multimode cable
3.75″L x 2.75″W x 1″H
Wavelength: 1310nm
Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M

Additional information

Weight 1.96 lbs
Dimensions 210 × 160 × 55 in
