Description
Description: SFP FIBER TO ETH MEDIA CONVRT POE+ MBPS
Tripp Lite Gigabit SFP Fiber to Ethernet Media Converter, POE+ – 10/100/1000 Mbps – Fiber media converter – GigE – 10Base-T, 100Base-TX, 1000Base-T – RJ-45 / SFP (mini-GBIC)
This economical unit converts a singlemode or multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SFP with fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.
The N785-P01-SFP lets you choose a transceiver that suits your system, while also delivering power to your PoE+ device (Tripp Lite’s N286-01GSX-MDLC and N286-01GLX-SLX transceivers sold separately). It connects to a Tripp Lite N785-Series non-PoE media converter using your choice of singlemode or multimode cabling. It also delivers data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) away using Cat5e/6 cabling (such as Tripp Lite’s N001- or N201-Series cables).
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

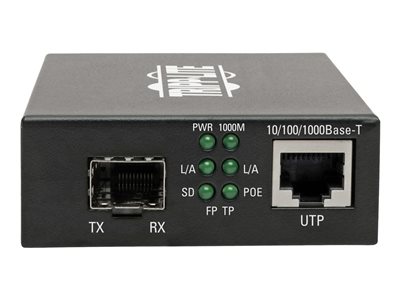

Monitoring and controlling your network nodes is easy with the N785-P01-SFP’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors all ports to ensure link status remains active.

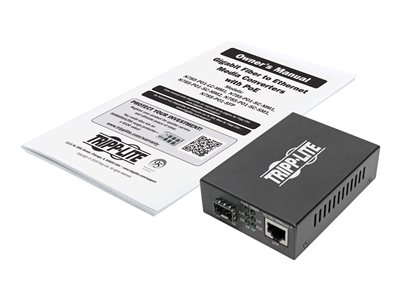

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.
Key Selling Points
Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
Customizable SFP port supports both 1G single- and multimode transceivers
RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
Supports both full- and half-duplex operation
Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately)
