Tripp Lite HDMI In-Line Signal Booster Video Extender 1920×1200 24Hz 150′ repeater B122-000


Please request a quote

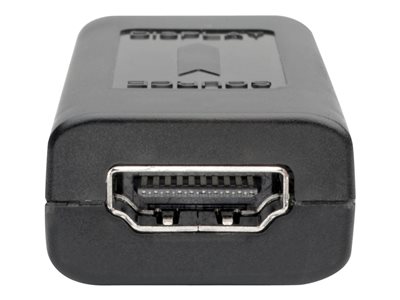

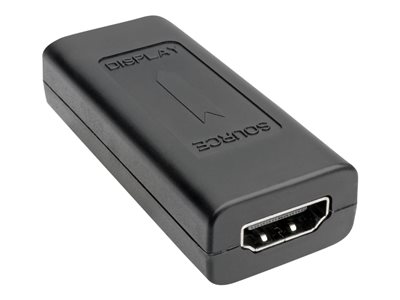

Tripp Lite HDMI In-Line Signal Booster Video Extender 1920×1200 24Hz 150′ – Repeater – up to 150 ft

SKU: B122-000 Categories: , Brand: Tripp Lite

Description

Description: HDMI SIGNAL EXTENDER HDMI-F/F
Tripp Lite HDMI In-Line Signal Booster Video Extender 1920×1200 24Hz 150′ – Repeater – up to 150 ft

Tripp Lite’s B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

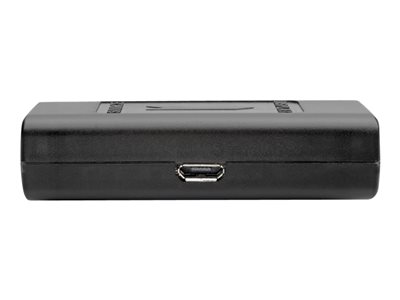

Although most installations will not require power, a Micro USB port is provided in the event power is needed. Using a Micro USB cable(such as Tripp Lite’s UR05C-Series), connect the Micro USB port to a USB wall charger, the USB port on your monitor, or the USB port on a computer.

Key Selling Points
Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source
Use P568-Series HDMI cables in most applications
When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order)
24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
HDCP compliant
No software or drivers required
No external power required in most installations
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Additional information

Weight 0.4 lbs
Dimensions 165 × 112 × 62 in
