Description
Description: PDU BASIC 120V 20A 5-15/20R L5-20P 1U RM

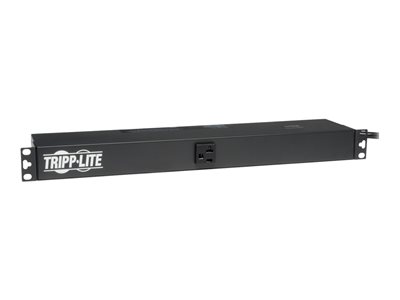

Tripp Lite PDU Basic 120V 2.4kW 20A 5-15/20R 13 Out L5-20P Horizontal 1URM – Horizontal rackmount – power distribution unit (rack-mountable) – 20 A – AC 120 V – 2.4 kW – input: NEMA L5-20 – output connectors: 13 (NEMA 5-20) – 1U – 19″ – black

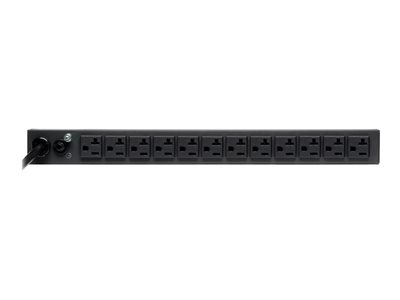

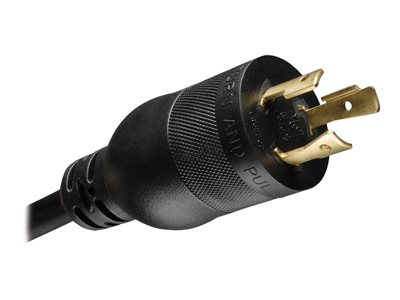

The PDU1220T 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1220T features a single breakered load bank with 13 NEMA 5-15/20R outlets—12 in the rear and one in front. The NEMA L5-20P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1220T for vertical 0U rack-mounting.
Whats in the Box
- PDU1220T 2.4kW Single-Phase 120V Basic PDU
- Mounting hardware
- Owner’s manual
