Description
Description: USBC DOCKING STATION USBA DVI HDMI VGA
Tripp Lite USB C Docking Station 4K USB Hub USB 3.1 Gen 1 w/ USB-A, HDMI, VGA, mDP, Gigabit Ethernet, Mem Card, 3.5 mm & USB-C Charge 4K @ 30Hz, USB-C, USB Type C, USB Type-C – Docking station – USB-C – VGA, HDMI, Mini DP – GigE

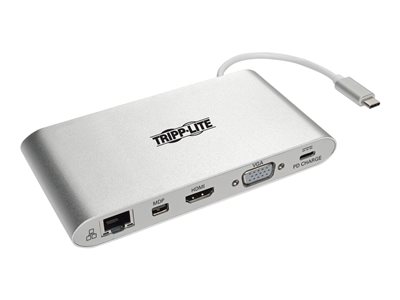

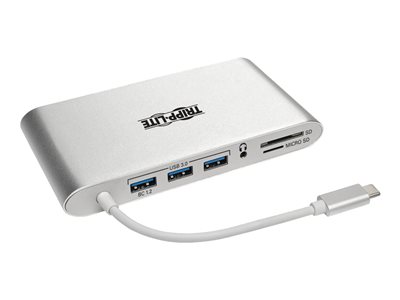

The U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station turns your computer, laptop or tablet into a versatile workstation. By connecting its built-in cable to your device’s USB-C port, you’ll be able to add an external display, access Gigabit Ethernet networks, transfer data, display video and more.
Mini DisplayPort, VGA and HDMI ports allow you to connect an external display (one display at a time). With the addition of adapters (sold separately), you can also add a DVI or DisplayPort display to the U442-DOCK1. The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports HD video resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

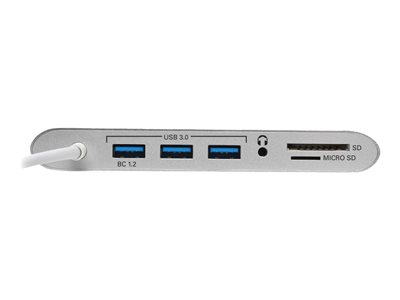

Connect a Gigabit Ethernet cable (sold separately) to the RJ45 port to access true 10/100/1000 Mpbs network speeds. Three USB-A hub ports are convenient for connecting peripherals to your device. Each supports data transfer rates up to 5 Gbps. A dedicated BC 1.2-compliant USB port provides up to 1.5A of fast-charging power.
The U442-DOCK1 also features a USB-C Power Delivery (PD) port that supports power input up to 20V 3A (60W). It connects to a USB-C wall charger to power the device it’s plugged into, as well as peripherals plugged into the USB-A ports.
Micro SD and SD/MMC memory card slots also provide access to external memory. A 3.5 mm audio jack is convenient for connecting speakers, headphones or a microphone to your connected device.
USB Type-C and USB-C are trademarks of USB Implementers Forum.

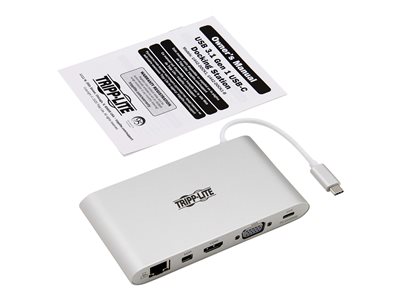

Whats in the Box
- U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station
- Owner’s manual
Key Selling Points
Recommended for connecting an external display, accessing Gigabit Ethernet, transferring data and displaying video
Connects a Mini DisplayPort, VGA or HDMI external display (one display at a time)
Supports connection of DVI display via HDMI to DVI adapter (sold separately)
Supports connection of DisplayPort display via Mini DisplayPort to DisplayPort adapter (sold separately)
Mini DisplayPort and HDMI ports support video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
VGA port supports video resolutions up to 1920 x 1200, including 1080p, @ 60 Hz
Supports true 10/100/1000 Mbps network speeds
Support data transfer rates up to 5 Gbps
Connect USB peripherals, such as a thumb drive or printer, to your device
Backward compatible with previous USB generations
BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices
Connects to USB-C wall charger to power the connected computer
Supports power input up to 20V 3A (60W)
15W dedicated to unit and USB-A hub ports
45W dedicated to USB-C device the unit is connected to
Supports connection of speakers, headphones or microphone
Memory card slots provide external memory access
Plug-and-play—no software, drivers or external power sources needed
Automatically resumes operation from hibernation and suspend modes
Complies with IEEE 802.3az standards
Supports full- and half-duplex operations
Supports IPv4 and IPv6 pack COE to reduce CPU loading
Supports Wake-on-LAN
