Vertiv Avocent HMX 6150T |High Performance KVM Transmitter |HDMI (HMX6150T-HDMI)High Performance KVM Extender | IP-Based KVM Transmitte… HMX6150T-HDMI


Vertiv Avocent HMX 6150T |High Performance KVM Transmitter |HDMI (HMX6150T-HDMI)
Crisp and clear picture quality, audio, and USB 2.0 high speed with True Emulation support..
Supports resolutions to a maximum of 2560×1600 @60Hz through either DP or HDMI interfaces..
USB power means there is no need to provision for an external power supply unit (PSU)..
Improved resolution and USB support offers DP & HDMI customers greater flexibility..
The HMX6150T-HDMI is the first Zero-U HMX transmitter..

SKU: HMX6150T-HDMI Categories: , Brand: Vertiv


Vertiv Avocent HMX 6150T |High Performance KVM Transmitter |HDMI (HMX6150T-HDMI)

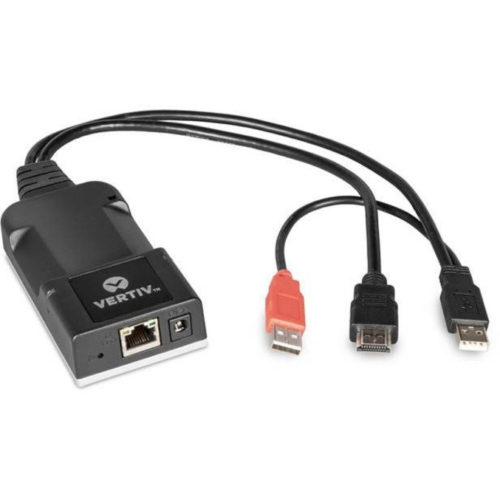

The Vertiv Avocent HMX 6150T High Performance KVM System transmitter is a high performance KVM extender that provides access to system computers, allowing users the ability to access and share computing resources. It is a small form factor transmitter that takes up zero-U of rack space. Its IP-based KVM technology removes any distance limitations, allowing the extension of computers away from the user environment. The Vertiv Avocent HMX 6150T extends the current HMX offering through the increased video support from HD to 2K and adding USB 2.0 high speed with True Emulation support. The HMX 6150T is backward compatible with the current advanced HMX platform. It is ideal for demanding applications such as broadcast, control rooms, and collaborative environments.

More from the Manufacturer

Additional information

Weight 1.54 lbs
Dimensions 11.50 × 9.60 × 2.10 in
Host Interface HDMI
Product Type KVM Extender Transmitter
Input Voltage 5 V DC
Manufacturer Part Number HMX6150T-HDMI
Manufacturer Website Address
Packaged Quantity 1
Platform Supported Linux, Mac, Sun, Unix, PC
Limited Warranty 2 Year
Connectivity Technology Wired
Manufacturer Vertiv
Microphone No
Product Model HMX 6150T
Product Name HMX 6150T | KVM Transmitter | DisplayPort (HMX6150T-DP)
Power Consumption 3 W
Product Line HMX
Product Series 6000
Rack Height 0U
Brand Name VERTIV
Country of Origin United Kingdom
Environmentally Friendly Yes
Maximum Video Resolution 2560 x 1600
Graphic Mode 2K
Maximum Operating Distance 300 ft
Number of HDMI Ports 1
Headphone No
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of USB Ports 2
DisplayPort Yes
Proprietary Interface No
PS/2 Port No
Number of PS/2 Ports 0
Number of VGA Ports 0
Number of DVI Ports 0
KVM Technology Digital
Number of Computers Supported 1
Transmitter Height 1"
Transmitter Width 2.17"
Transmitter Depth 1.10"
Transmitter Weight (Approximate) 6.40 oz
TAA Compliant Yes
Device Type KVM Extender
Product Color Black
Certifications & Standards CE, UL, FCC,
Number of ST Ports 0
Digital Audio/Video Yes
GTIN 0636430090542
UPC 636430090542
EAN 0636430090542
UNSPSC 43211603
