$726.75

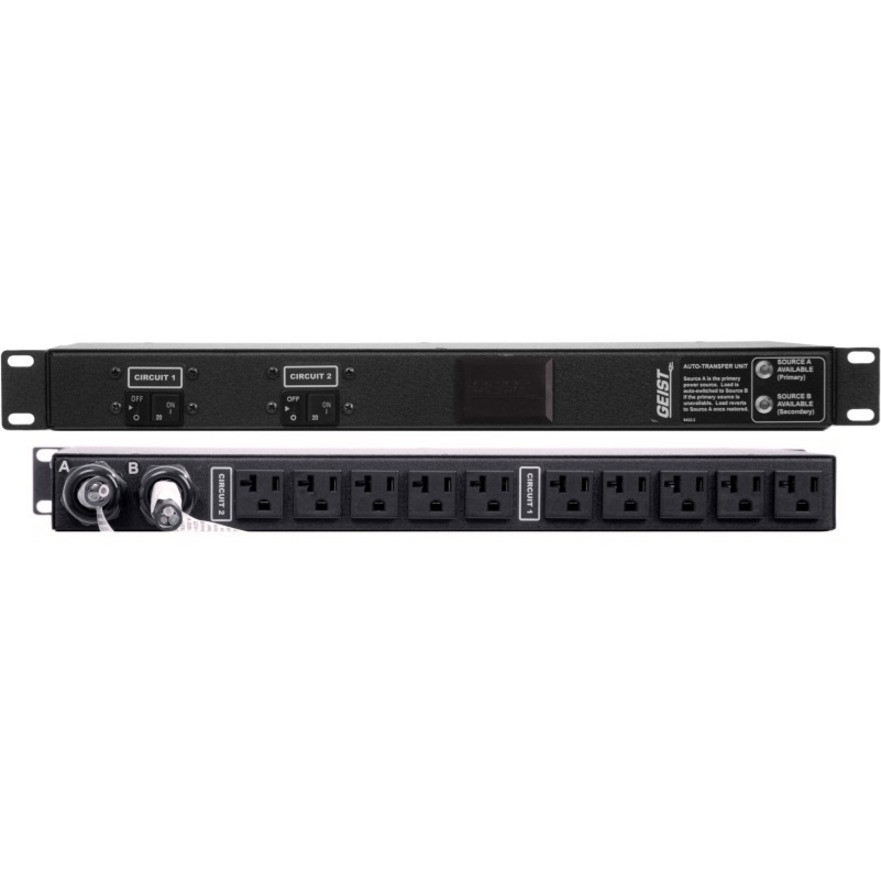

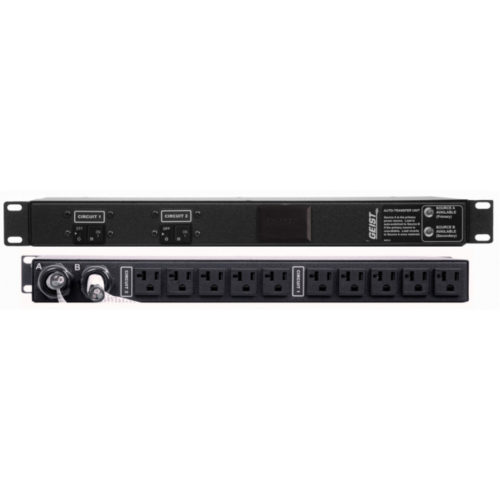

Geist ATR100-103R20TL5 Automatic Transfer Switch
Geist ATR100-103R20TL5 Automatic Transfer Switch
The ATR100-103R20TL5 provides redundant power for single-corded data center equipment. If the primary power source experiences failure, the transfer switch automatically shifts to a secondary source, ensuring uninterrupted service. Once power is restored, the unit automatically switches back to the original source of power.
| Weight | 14 lbs |
|---|---|
| Dimensions | 8.50 × 17.10 × 1.72 in |
| Product Type | Automatic Transfer Switch |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | 14468 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Current | 30 A, 20 A |
| Form Factor | Rack-mountable |
| Load Capacity | 2800 VA |
| Manufacturer | Vertiv |
| Product Model | ATR100-103R20TL5 |
| Product Name | ATR100-103R20TL5 Automatic Transfer Switch |
| Protection Type | Over Current |
| Receptacles | 10 x NEMA 5-20R |
| Brand Name | Geist |
| Plug/Connector Type | NEMA L5-30P |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Product Color | Black Powder Coat |
| Certifications & Standards | UL, c-UL Listed 60950, |
| UNSPSC | 39121100 |
