Vertiv Geist CSN-S02A3-03000-2TL56A-S Standard Power CordFor PDU230 V AC / 30 A, 415 V AC10 ft Cord LengthTAA Compliant FSC3N001

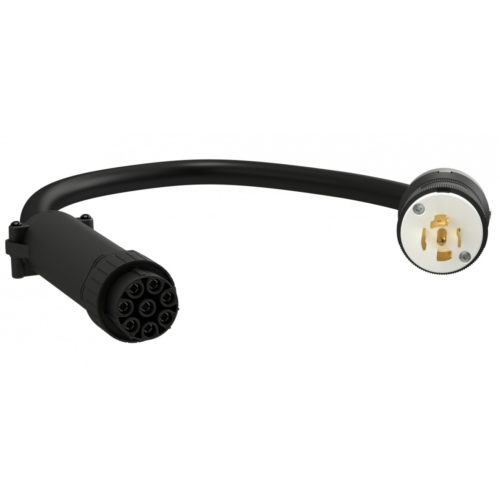

Geist CSN-S02A3-03000-2TL56A-S Standard Power Cord
Powers your devices with ease by connecting to available power outlets.
Charge your device anytime with the powerful and portable cord.
Safely power your device with 230 V AC cord.

SKU: FSC3N001 Categories: , Brand: Vertiv


Geist CSN-S02A3-03000-2TL56A-S Standard Power Cord
The Vertiv Geist FSC, Facility Side Cable,features a universal connector designed to mate with the Universal Input on theVertiv Geist UPDU, Universal Power Distribution Unit. The FSC is available in common worldwide AC power specsranging from 16A to 60A, 120V to 415V with single and three phase power configurations. Select the detachable Vertiv Geist FSC specific to the local power configuration to power the UPDU.(UPDU sold separately)


  • The flexibility offered by the UPDU and FSC enable any rack architecture to be installed in any data centeraround the world, regardless of the power infrastructure already in place.
  • The FSC enables users to utilize asingle UPDU model with various input power configurations tosimplify global IT infrastructuredeployments, inventory managementand enable rapid deployments worldwide.
  • Increase or decrease UPDU power capacity by changing the FSC toadapt to fluctuating equipmentpower needs.
  • Every unit is 100% tested for reliability and functionality to ensure units function as designed.

Additional information

Weight 8.4 lbs
Dimensions 7.00 × 15.00 × 23.00 in
Product Type Standard Power Cord
Compatibility Vertiv Geist Universal Rack PDU (UPDU)
Device Supported PDU
Manufacturer Part Number FSC3N001
Manufacturer Website Address
Limited Warranty 5 Year
Manufacturer Vertiv
Product Model CSN-S02A3-03000-2TL56A-S
Product Name CSN-S02A3-03000-2TL56A-S Standard Power Cord
Voltage Rating 230 V AC, 415 V AC
Current Rating 30 A
Brand Name Geist
Country of Origin United States
Cord Length 10 ft
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
First End Connector Type NEMA L22-20P
First End Connector Detail 1 x 4-pin NEMA L22-20P Male
Second End Connector Type Universal Connector
Second End Connector Detail 1 x 8-pin Universal Connector Female
Certifications & Standards UL & c-UL Listed 60950
Frequency 50 Hz, 60 Hz
UNSPSC 26121629
