Vertiv Geist rPDU MN03E4B0-26PJ68-2TL6A0A10-S 26-Outlets PDUMonitoredNEMA L6-20P20 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19230 V A… NI30386L

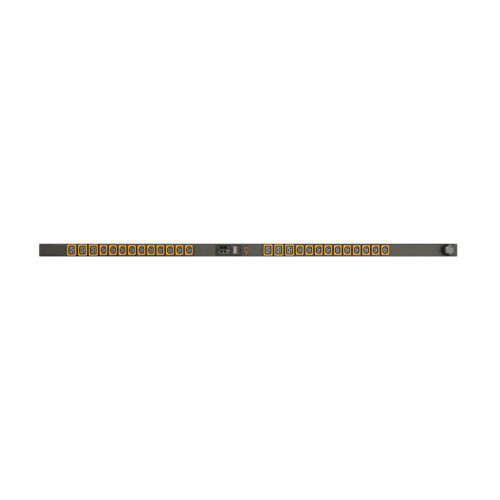

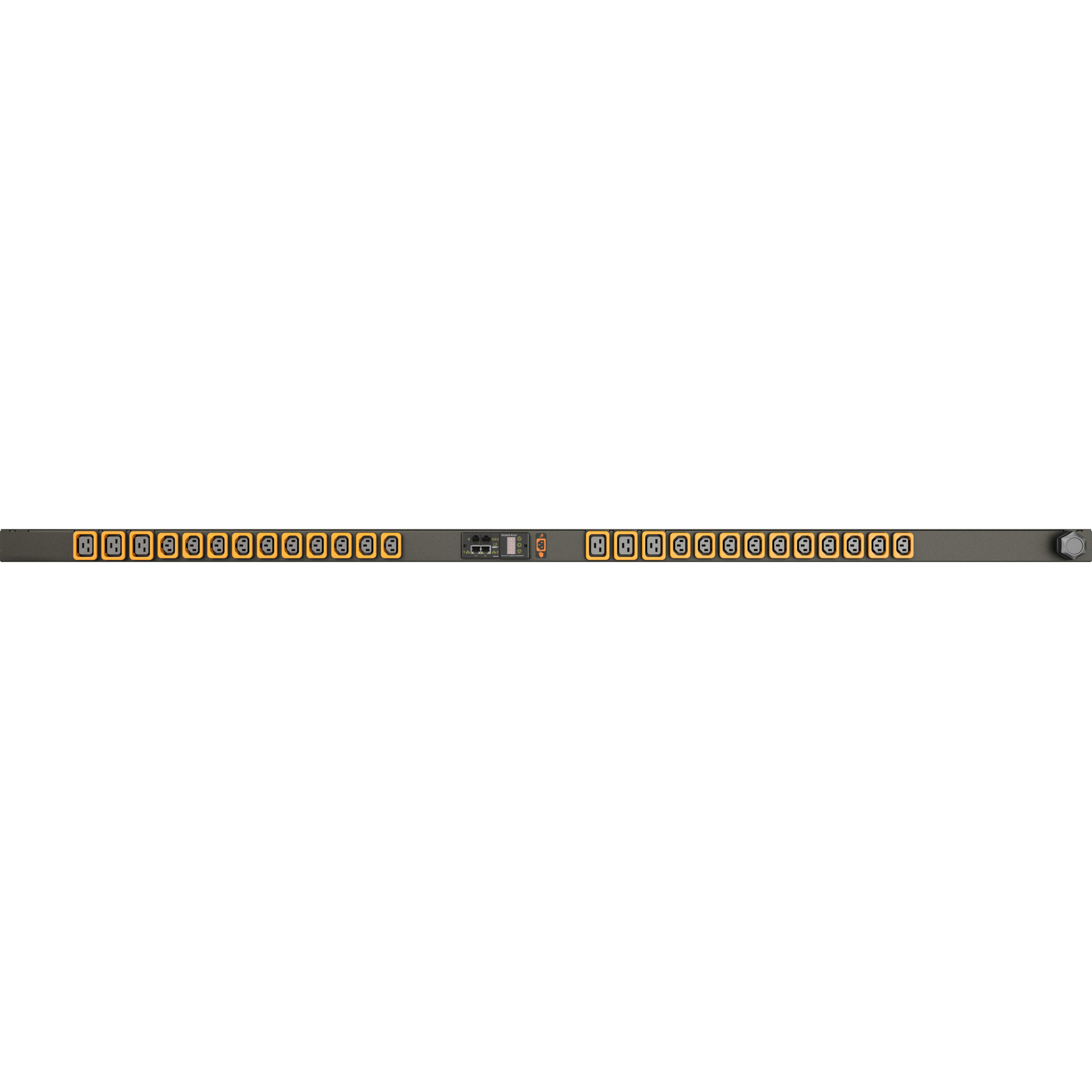

Geist rPDU MN03E4B0-26PJ68-2TL6A0A10-S 26-Outlets PDU
Provide circuit protection and easy configuration for trouble-free access.
Before critical input source become overloaded always be warned with monitored PDUs.

SKU: NI30386L Categories: , Brand: Vertiv


Geist rPDU MN03E4B0-26PJ68-2TL6A0A10-S 26-Outlets PDU

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.


  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Every unit is 100% tested for reliability and functionality.

Additional information

Weight 20 lbs
Dimensions 2.00 × 2.00 × 72.00 in
Package Contents rPDU MN03E4B0-26PJ68-2TL6A0A10-S 26-Outlets PDU, Vertical Mounting Bracket Kit,
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number NI30386L
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 208 V AC
Input Current 20 A
Length 66.3"
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ ,
Manufacturer Vertiv
Product Model MN03E4B0-26PJ68-2TL6A0A10-S
Product Name rPDU MN03E4B0-26PJ68-2TL6A0A10-S 26-Outlets PDU
Mount Type Rack-mountable
Product Series rPDU
Brand Name Geist
Plug/Connector Type NEMA L6-20P
Input Voltage Range 200 V AC - 240 V AC
Country of Origin United States
Receptacle Type U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Network (RJ-45) Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 3300 W
Receptacle Detail 20 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19
Plug/Connector Detail 1 x NEMA L6-20P
UNSPSC 39121017
