Vertiv Geist rPDU NSVLN080-101S15 8-Outlets PDUBasicNEMA 5-15P8 x NEMA 5-15R120 V ACHorizontal/VerticalRack-mountable, Cabinet-mounta… 11405VH

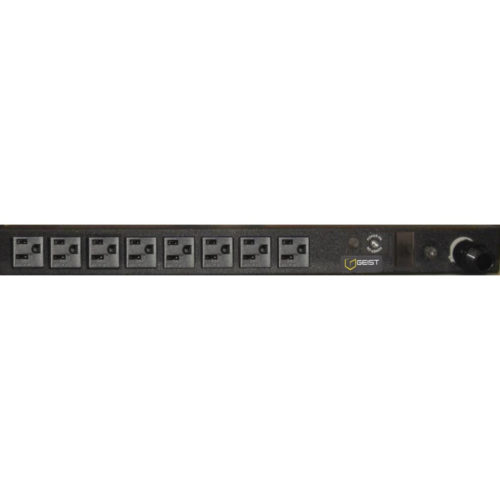

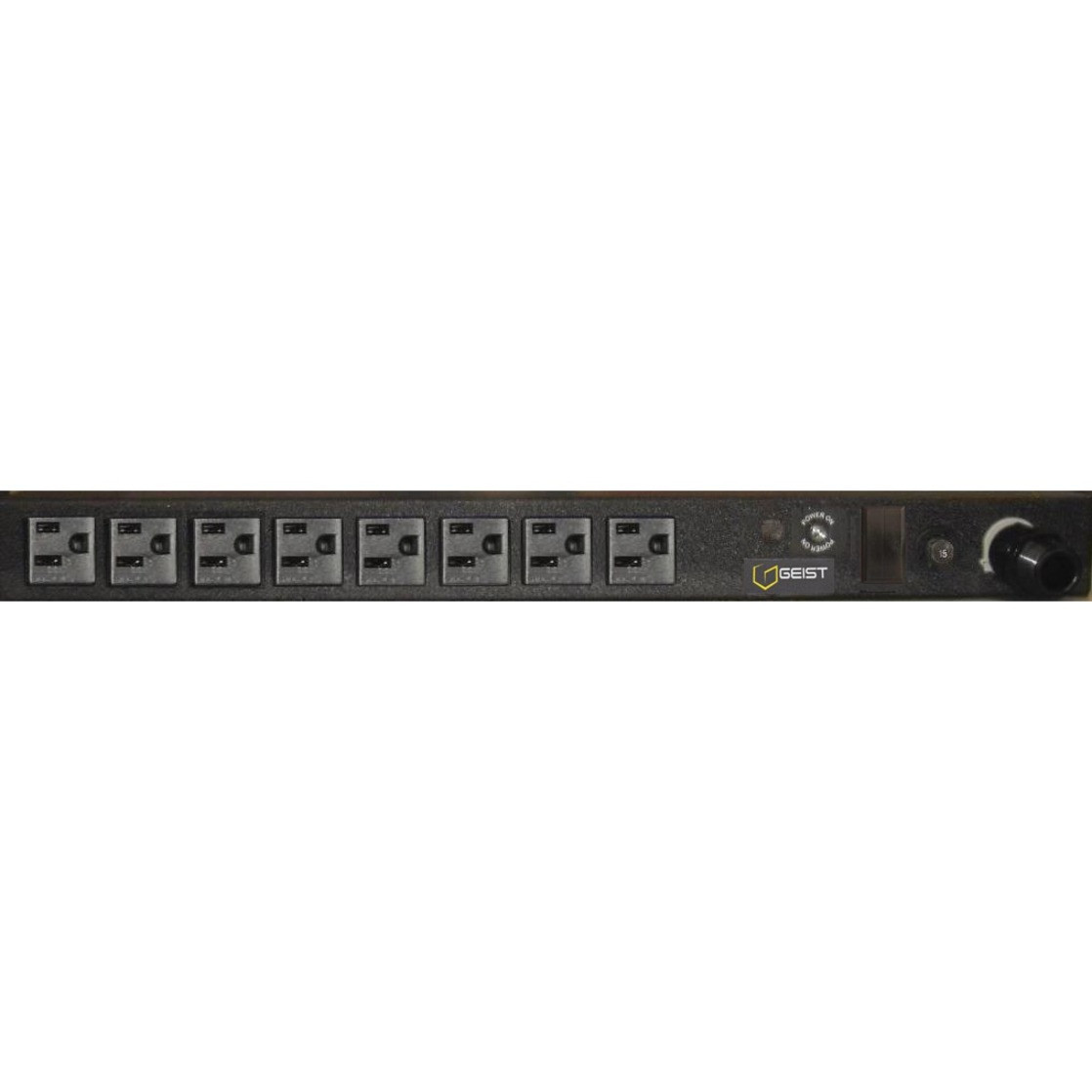

Geist rPDU NSVLN080-101S15 8-Outlets PDU
Provide circuit protection and easy configuration for trouble-free access.
Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way.

SKU: 11405VH Categories: , Brand: Vertiv


Geist rPDU NSVLN080-101S15 8-Outlets PDU

Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.


  • Reliable rack power distribution.
  • Every unit is 100% tested for reliability and functionality.
  • Simple and convenient configuration options for cord lengths and chassis colors.
  • Standard three-year warranty, upgraded to a five-year warranty with product registration.

Additional information

Weight 5.6 lbs
Dimensions 1.61 × 1.61 × 3.00 in
Package Contents rPDU NSVLN080-101S15 8-Outlets PDU, 19in Panel Mount Brackets,
Product Type PDU
Input Voltage 120 V AC
Manufacturer Part Number 11405VH
Manufacturer Website Address
Limited Warranty 5 Year
Output Voltage 120 V AC
Input Current 15 A
Length 17"
Manufacturer Vertiv
Product Model NSVLN080-101S15
Product Name rPDU NSVLN080-101S15 8-Outlets PDU
Mount Type Rack-mountable, Cabinet-mountable, Panel-mountable
Protection Type Overcurrent Protection, Thermal Protection
Product Series rPDU
Brand Name Geist
Plug/Connector Type NEMA 5-15P
Input Voltage Range 100 V AC - 120 V AC
Country of Origin United States
Receptacle Type NEMA 5-15R
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
PDU Type Basic
Mounting Orientation Horizontal/Vertical
Power Rating (Watt) 1400 W
Receptacle Detail 8 x NEMA 5-15R
Plug/Connector Detail 1 x NEMA 5-15P
UNSPSC 39121017
